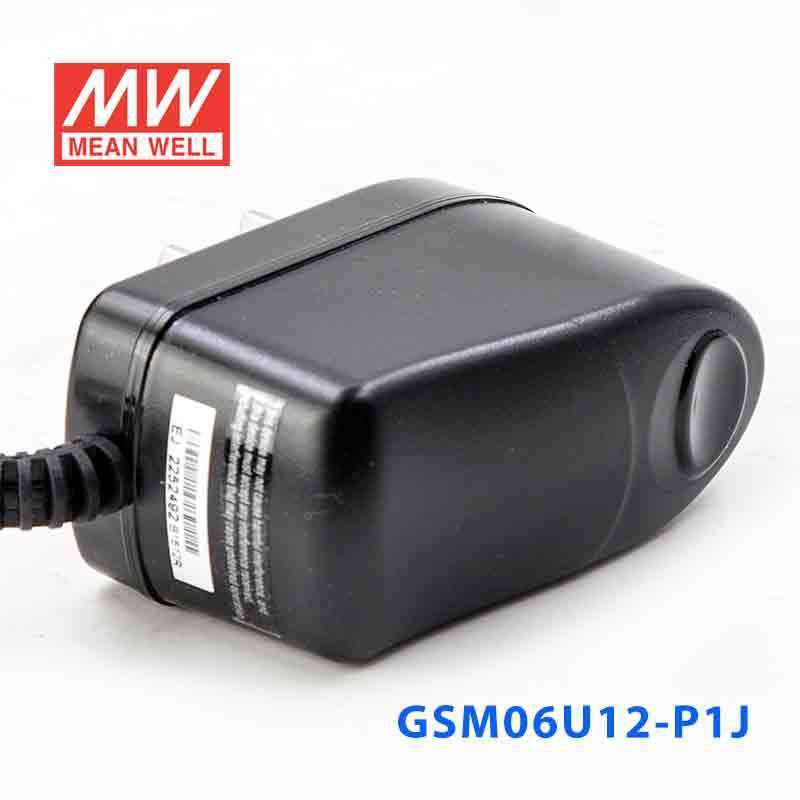

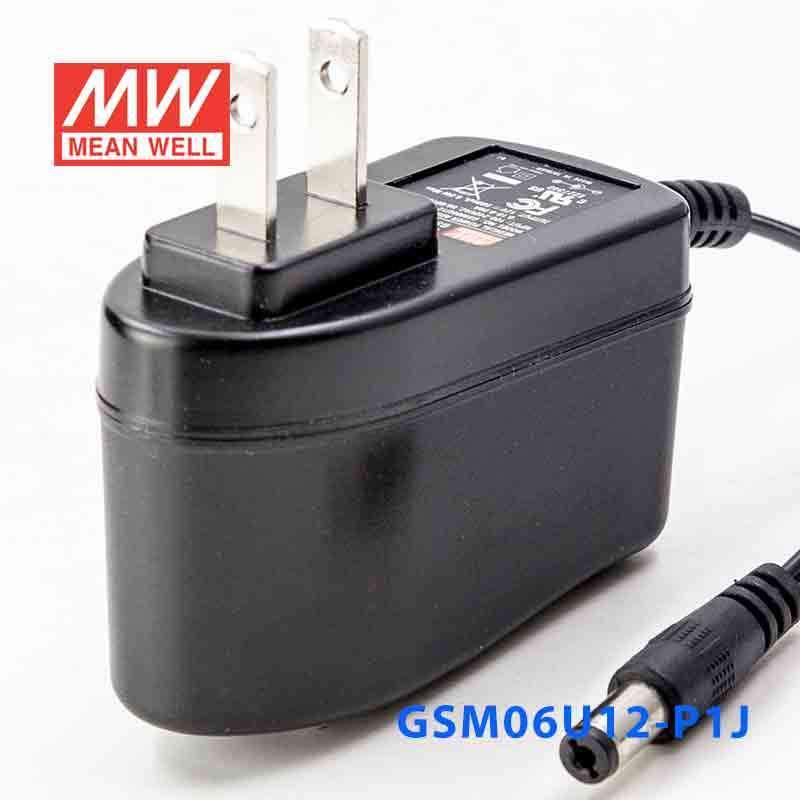

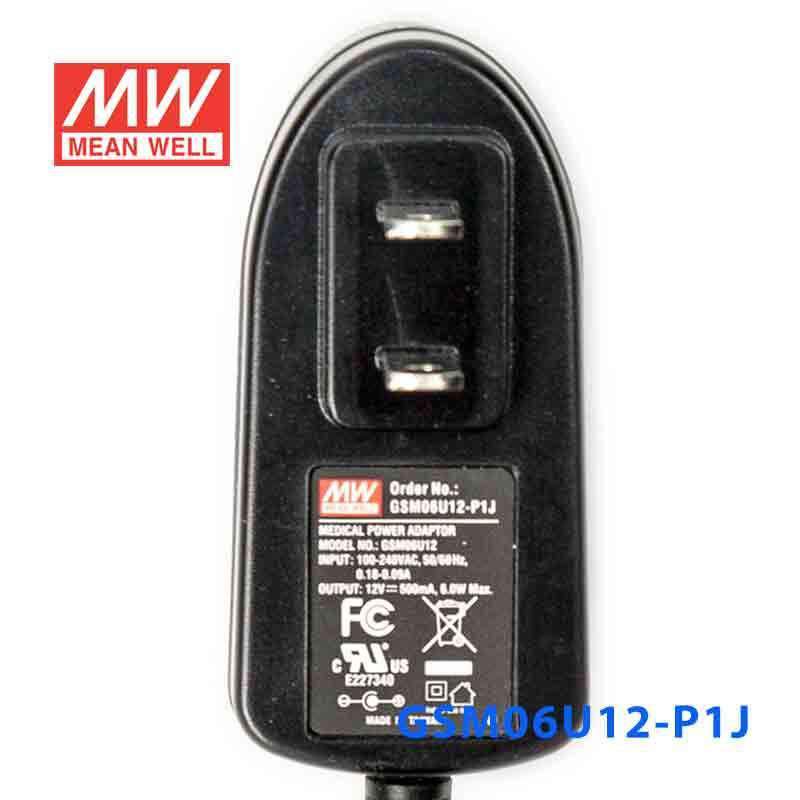

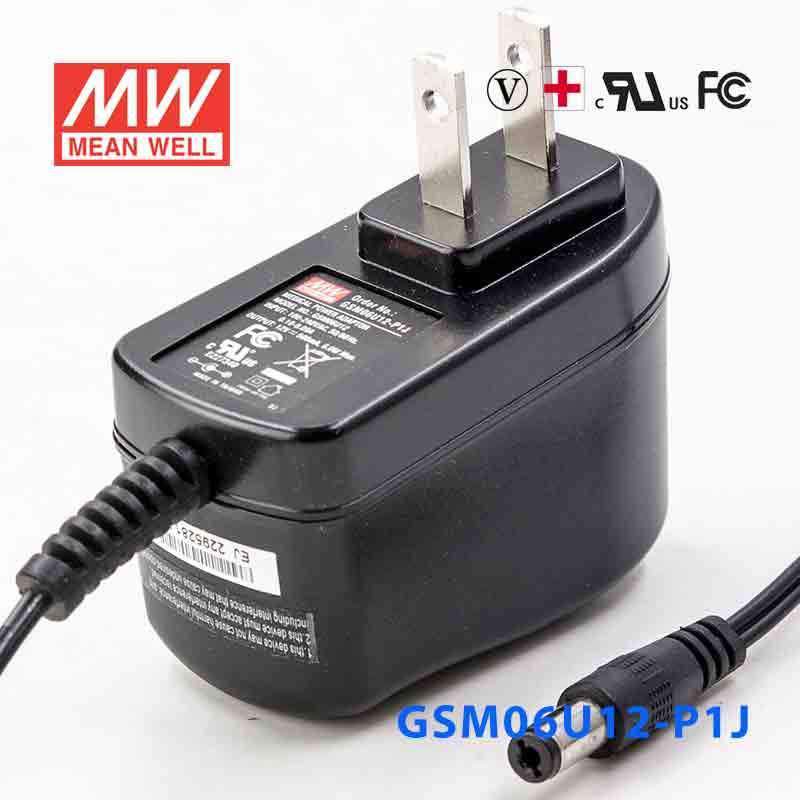

Mean Well GSM06U12-P1J Power Supply 06W 12V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole USA AC plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.3W |
| High efficiency up to 82% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Energy efficiency Level V |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 30A at 230VAC |
| Overload protection | >105% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 5656VAC |
| Working temperature | 0~+40°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1-11 approved |
| EMC standards | FCC part 15 class B, FCC part 18 |
| Length of output cable | 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V |
| Dimension (LxWxH) | 32x 66x 42.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM06U12-P1J to power a small 12V automation controller or interface module?
Yes, if the device requires constant voltage at 12V. The load must stay within 0.5A and must not exceed the unit's 6W output rating.
Is this 12V adapter suitable for a compact industrial sensor hub or monitoring device?
It can be used for low-power 12V industrial or monitoring electronics that accept constant voltage input. Output is limited to 0.5A, with total available power of 6W.
Will this work for a 12V embedded system in a control cabinet?
This model is appropriate for 12V constant voltage embedded systems when the power draw remains within 6W. The maximum output current is 0.5A, so it is intended for lighter-load devices.
Can I use this for a small 12V communications device or industrial accessory?
It can support a 12V communications or accessory device that is designed for constant voltage operation. The connected equipment must stay at or below 0.5A and within the 6W rating.
Is the GSM06U12-P1J suitable for indoor or outdoor use?
The listed operating temperature range is 0°C to +50°C, which defines the stated temperature conditions for use. No IP rating is included in the supplied specifications, so indoor or otherwise protected environments are the safer fit.
