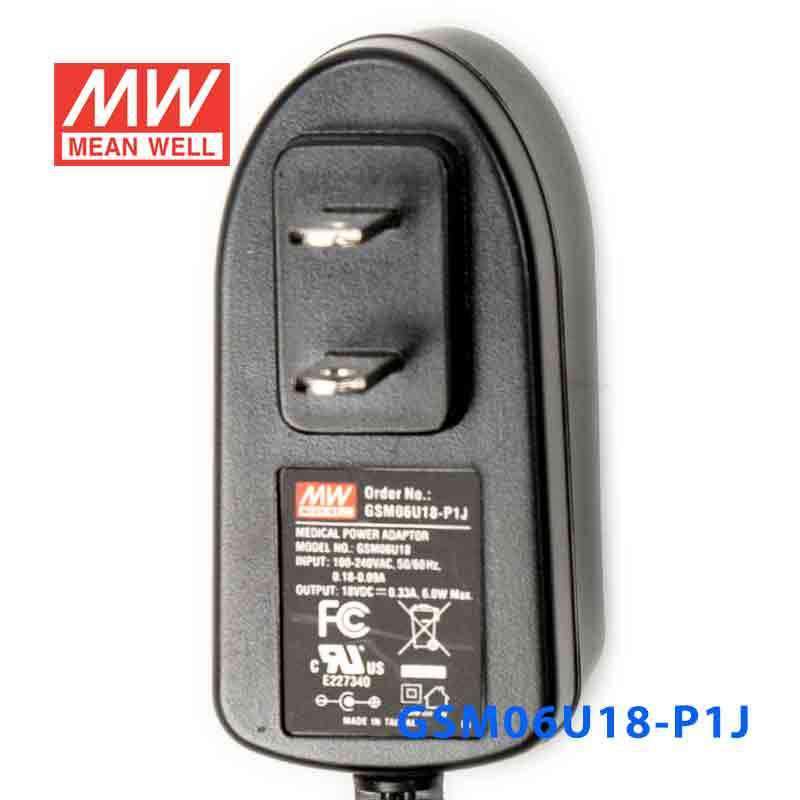

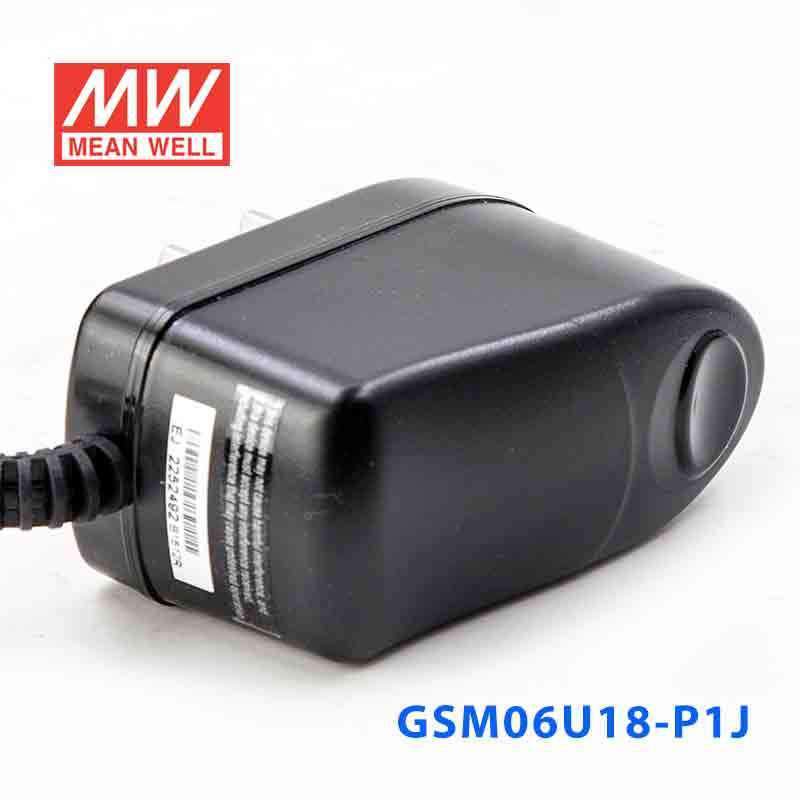

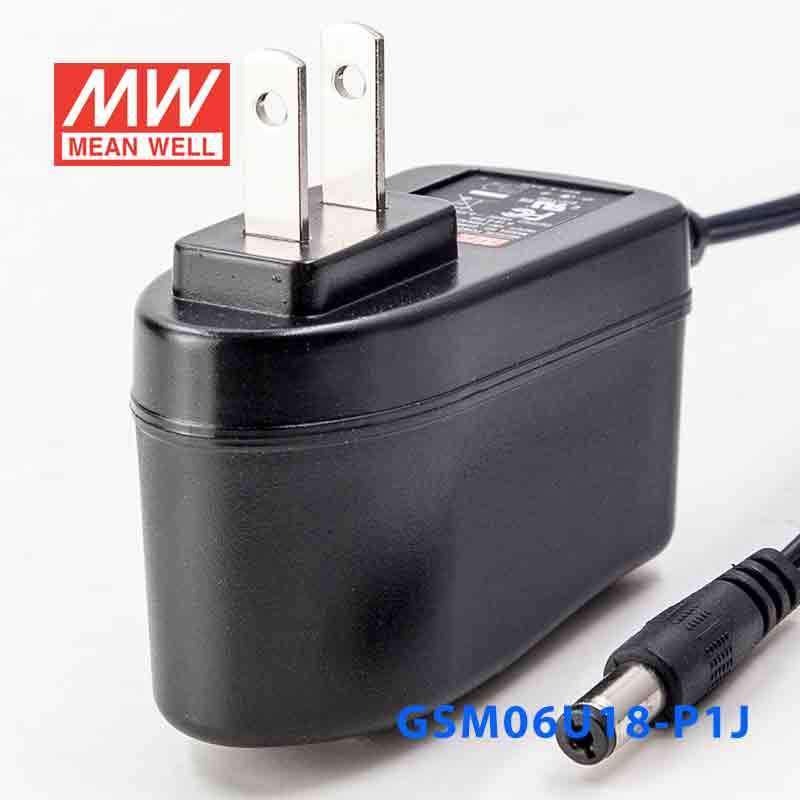

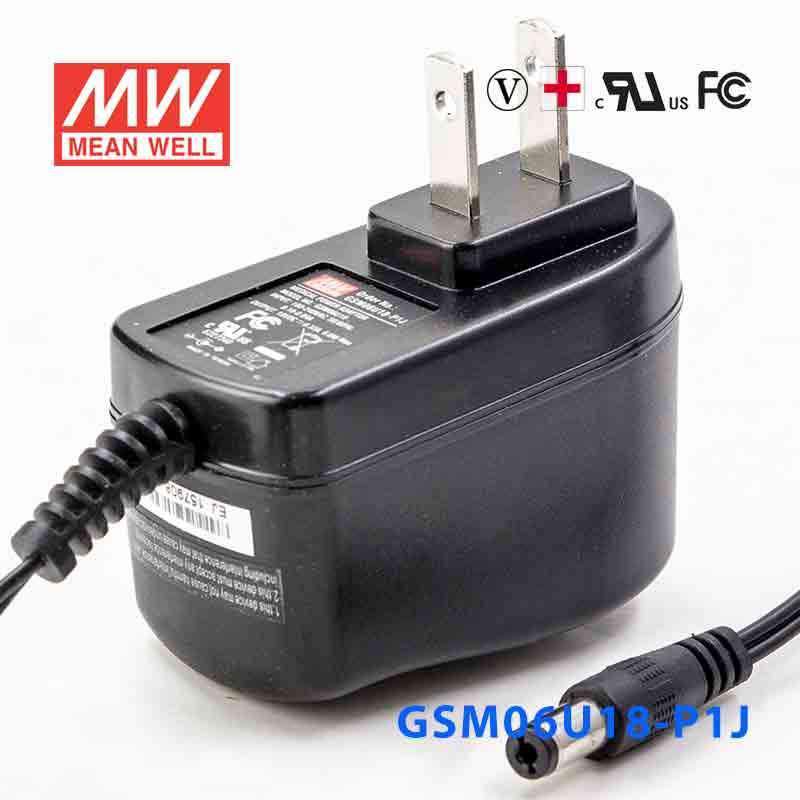

Mean Well GSM06U18-P1J Power Supply 06W 18V
The GSM06U18 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ulation that effectively prevents electrical shock. GSM06U is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage18 Volt
-
Rated Current0.33 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06U18-P1J for a small 18V automation device?
This supply provides constant-voltage 18V output at up to 6W and 0.33A. It is suited to small 18V automation devices, compact control accessories, or low-current embedded products that match those limits.
Will this work for an 18V embedded board or OEM assembly?
It is appropriate for 18V embedded assemblies that need a regulated constant-voltage source and draw no more than 0.33A. Its 66.0 x 42.5 x 32.0 mm body also makes it easier to place in compact OEM equipment.
Can this power supply run a low-power 18V monitoring or communications module?
Yes, if the module is designed for 18V constant-voltage input and stays within 6W. The available output current is 0.33A, so it is better suited to modest-load monitoring, signaling, or communications hardware than higher-draw devices.
How do I know if my 18V load is compatible with this adapter?
The load should require 18V constant-voltage input and draw no more than 6W or 0.33A. If the device needs more current than 0.33A, this model is undersized for that application.
Can the GSM06U18-P1J be used in varying ambient conditions?
Its specified operating range is 0°C to +50°C. No IP rating is listed in the provided specs, so environmental suitability is defined by temperature here rather than by a published ingress-protection classification.
