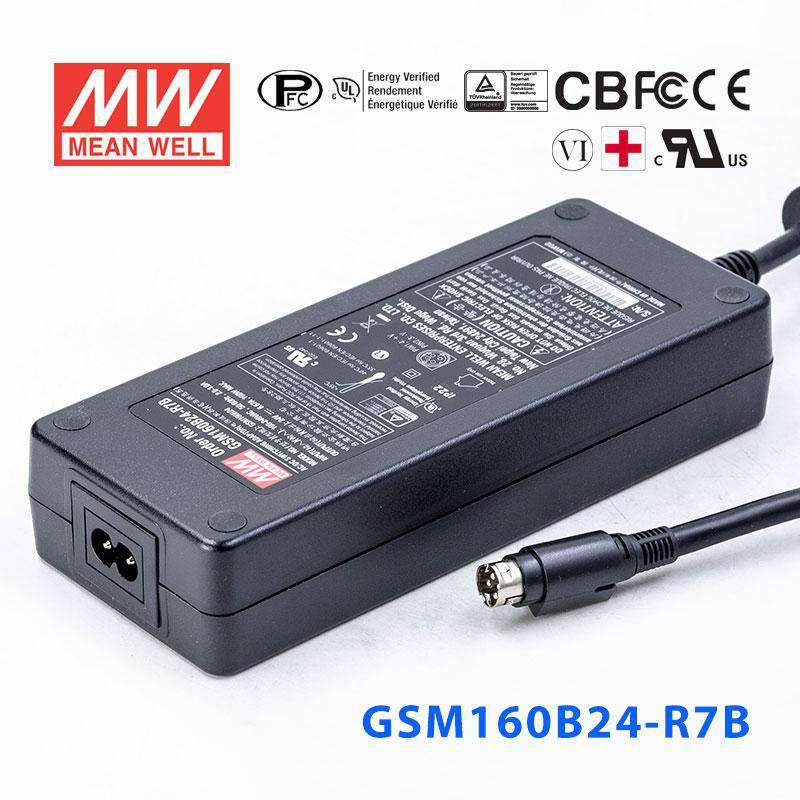

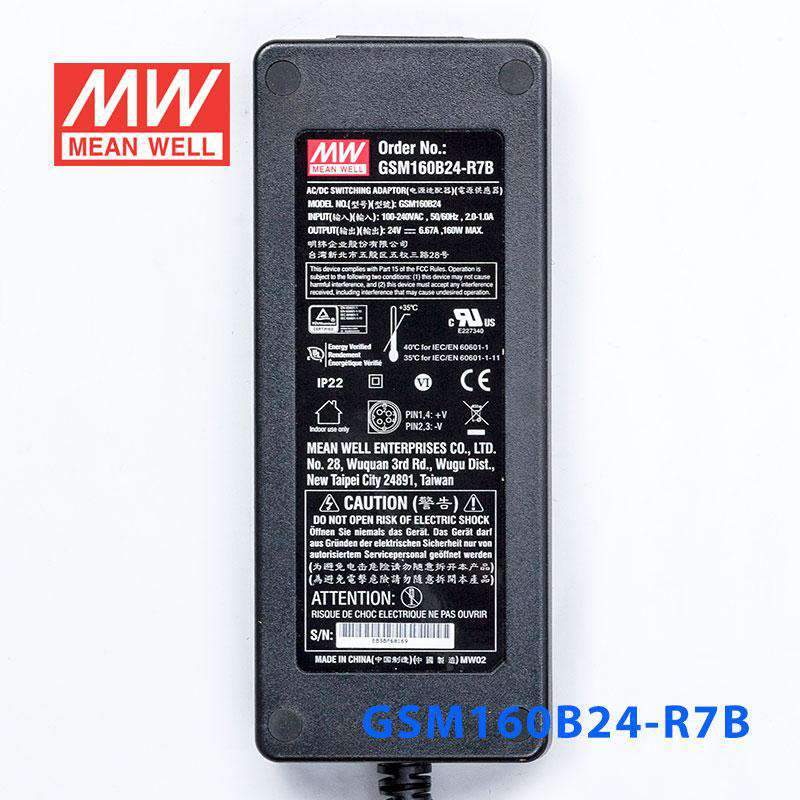

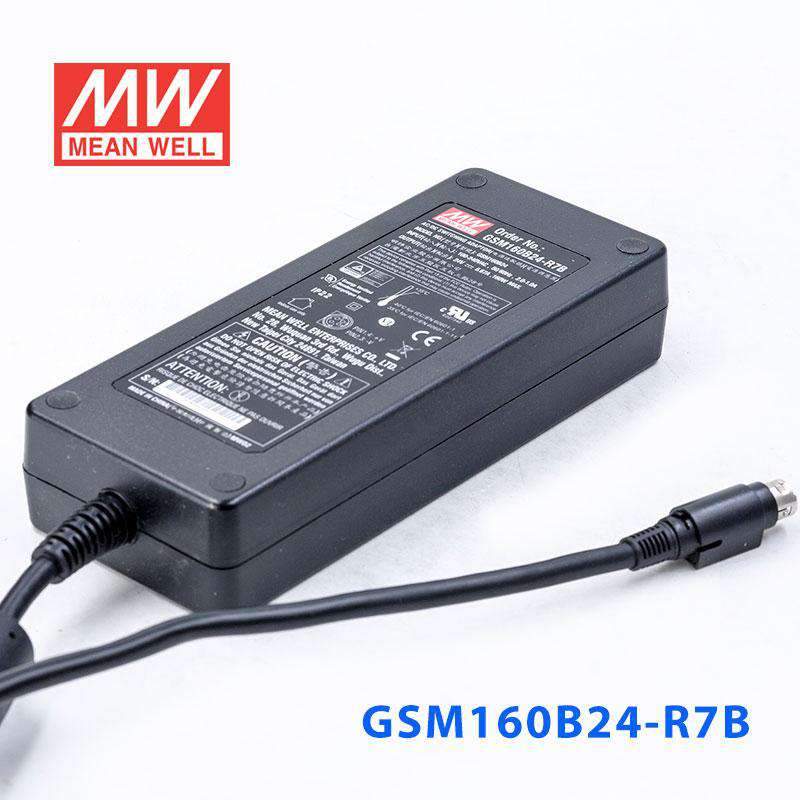

Mean Well GSM160B24-R7B Power Supply 160W 24V
Description
Description
Features
| Universal AC input / Full range |

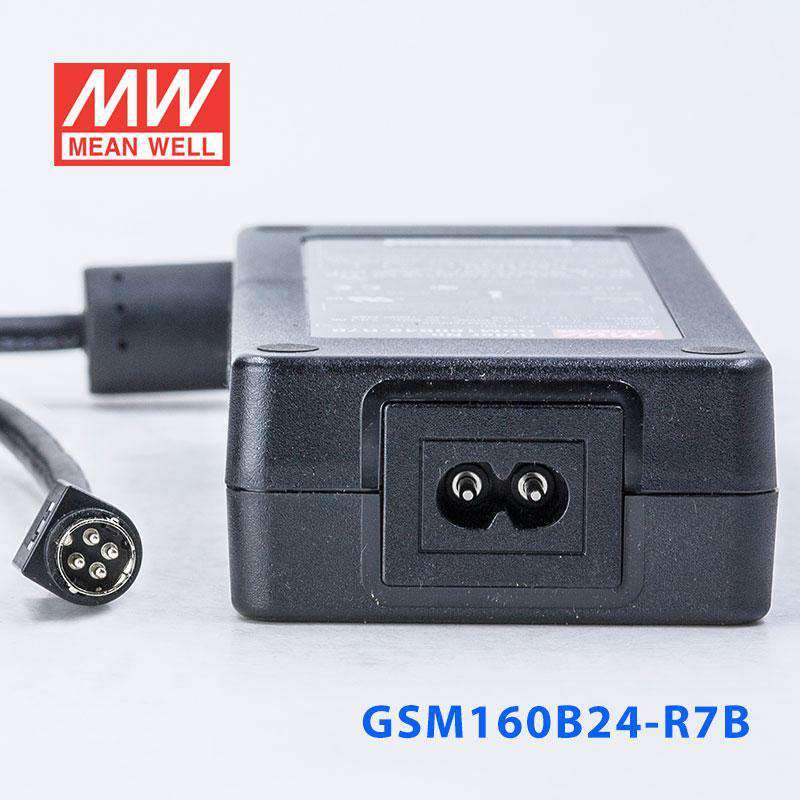

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 94% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

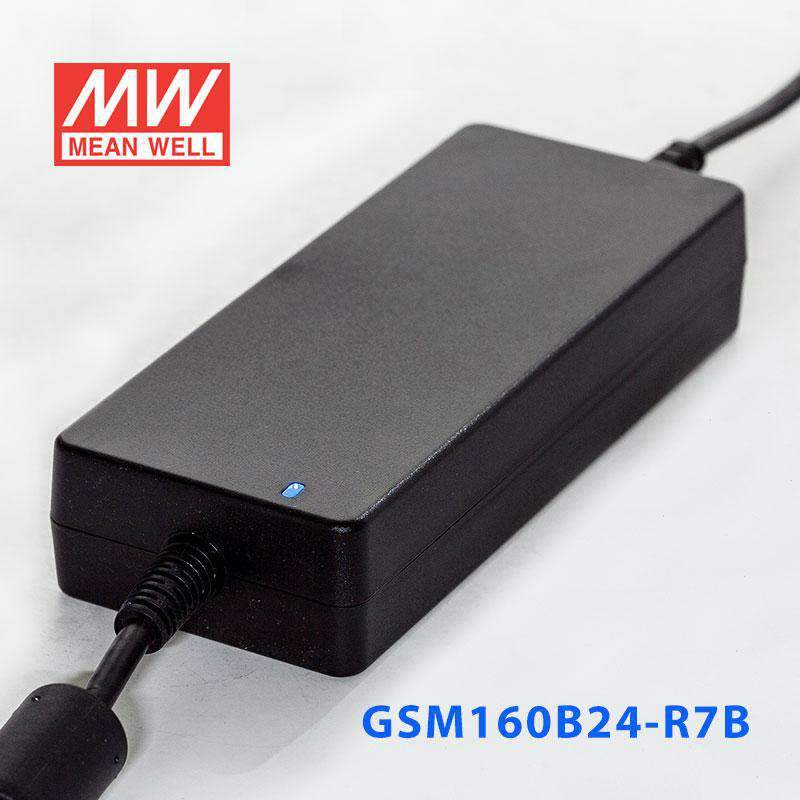

| LED indicator for power on |
| Energy efficiency level VI |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 12V ; 120cm of UL2464, 18AWG for 15~48V |
| Dimension (LxWxH) | 175x 72x 35 mm |
| Standard DC plug | R7B: Power DIN 4P with lock type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage24 Volt
-
Rated Current6.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM160B24-R7B for a 24V PLC or industrial controller?
Yes, if the controller requires a 24V constant-voltage supply and its load stays within 6.67A and 160W. Those ratings align with many 24V industrial control applications that need regulated DC power.
Is this 24V power supply a good fit for automation sensors and relays on a control panel?
It can support 24V automation loads when the combined current stays at or below 6.67A. The unit is constant voltage, so it is intended for equipment that expects a fixed 24V DC input rather than current-regulated output.
Can the GSM160B24-R7B power a 24V industrial networking or communications device?
It is suitable for 24V communications or networking hardware that needs stable DC power within the unit's 160W maximum output. Buyers should confirm the device requires 24V and does not exceed 6.67A.
Would this work for a 24V embedded system used in factory equipment?
Yes, for embedded hardware designed around 24V constant-voltage input, this supply can be appropriate. Its 80-264VAC input range also supports use in facilities with different AC mains conditions.
Can I use the GSM160B24-R7B in an outdoor enclosure or unprotected area?
The operating temperature range is -30°C to +70°C, which covers demanding ambient conditions. Still, these specs do not list an IP rating, so weather exposure or washdown suitability should not be assumed from this data alone.
