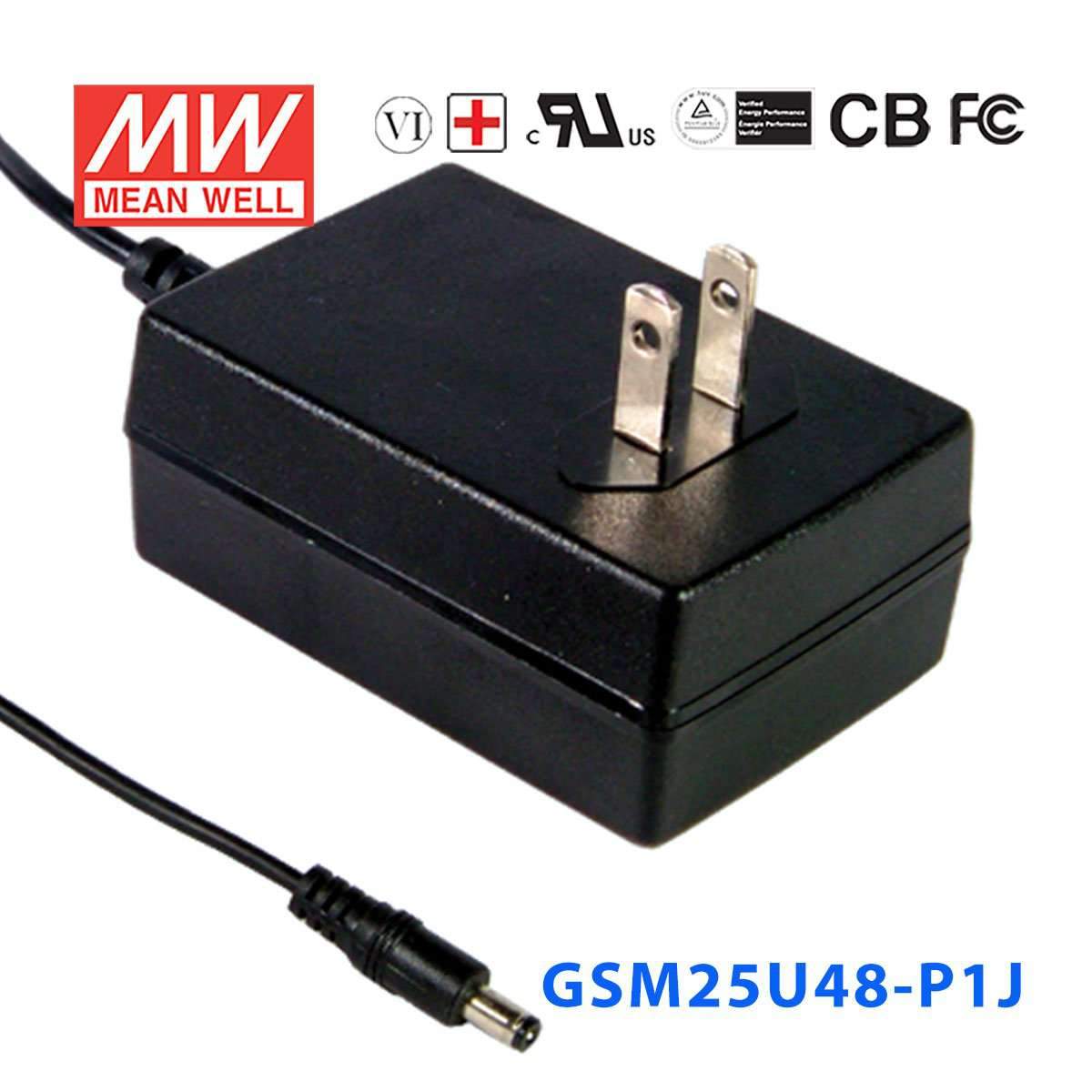

Mean Well GSM25U48-P1J Power Supply 25W 48V
The GSM25U48 is a 25W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage48 Volt
-
Rated Current0.52 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM25U48-P1J for 48V telecom or networking equipment?
Yes, this model delivers constant-voltage 48V output and is rated for up to 0.52A, with 25W total power. It fits lower-power 48V telecom, networking, or communications equipment that stays within those limits.
Is the GSM25U48-P1J appropriate for a 48V industrial communication device or controller?
It can be appropriate for compact 48V industrial electronics that require a regulated constant-voltage source. The available output is 48V at up to 0.52A, so it is intended for modest-power loads rather than larger 48V systems.
Can this power supply run a 48V embedded appliance or edge device?
Yes, if the appliance is specified for 48V DC constant-voltage input and its total power demand remains at or below 25W. The 80-264VAC input range also supports use where AC input conditions vary.
What compatibility checks matter most for a 48V load?
The device should require 48V constant-voltage input and draw no more than 0.52A or 25W. Those three values are the key limits to verify before selecting this model for a 48V application.
Is the GSM25U48-P1J suitable for outdoor installations?
The published operating temperature range is -25°C to +60°C, which supports use in a wide range of protected conditions. No IP rating is listed in the specs, so the product data does not confirm direct exposure to outdoor moisture or dust.
