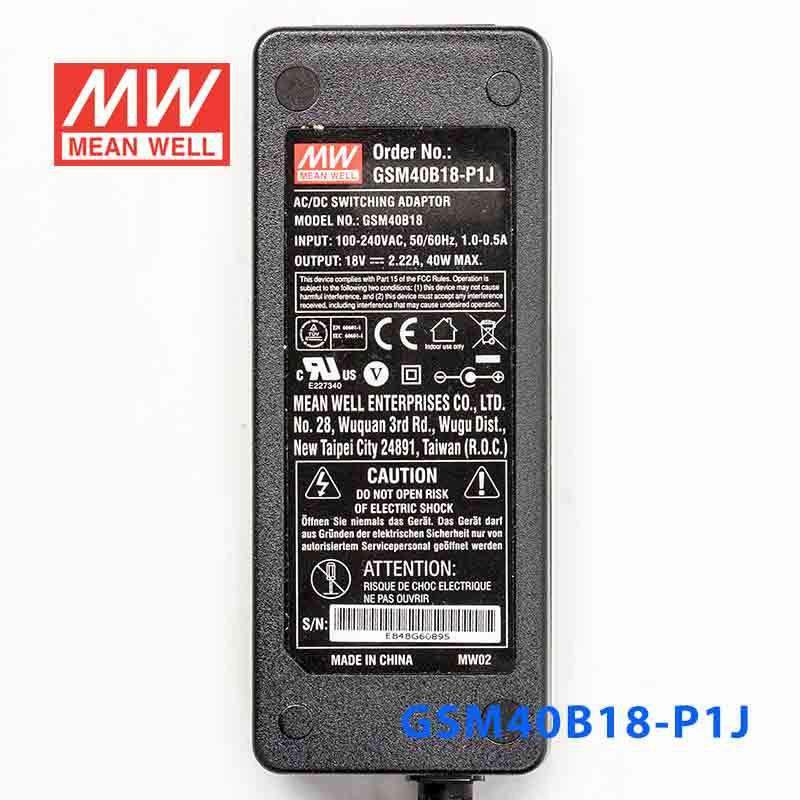

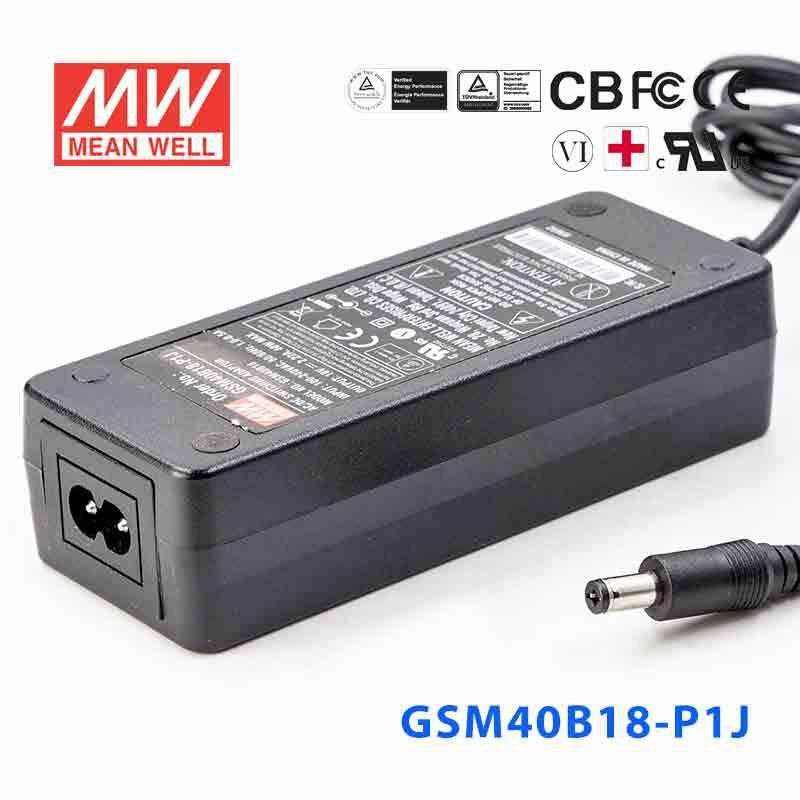

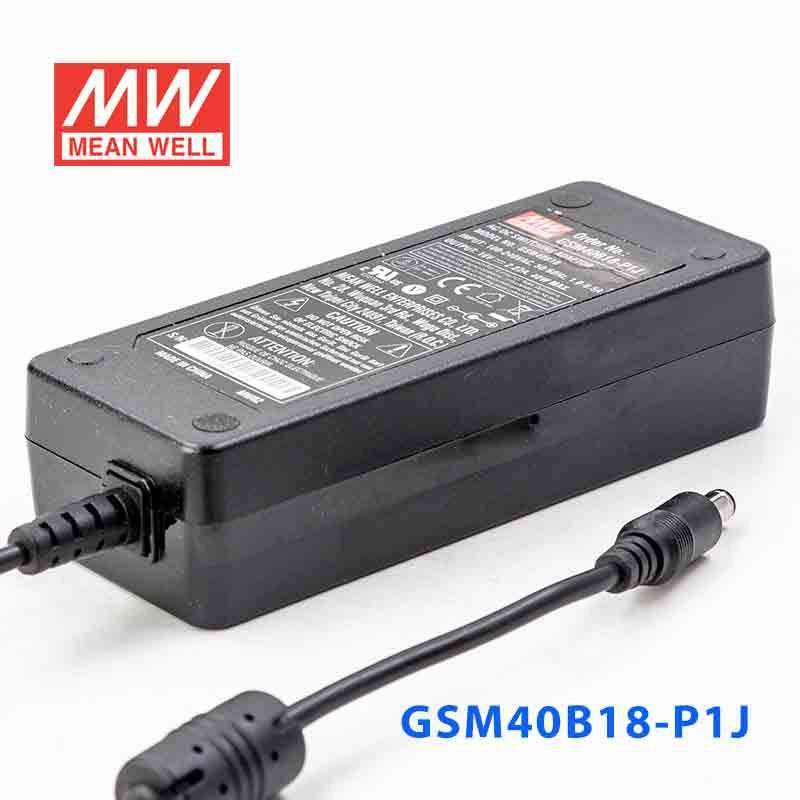

Mean Well GSM40B18-P1J Power Supply 40W 18V
Description
Description
Features
| Universal AC input / Full range |

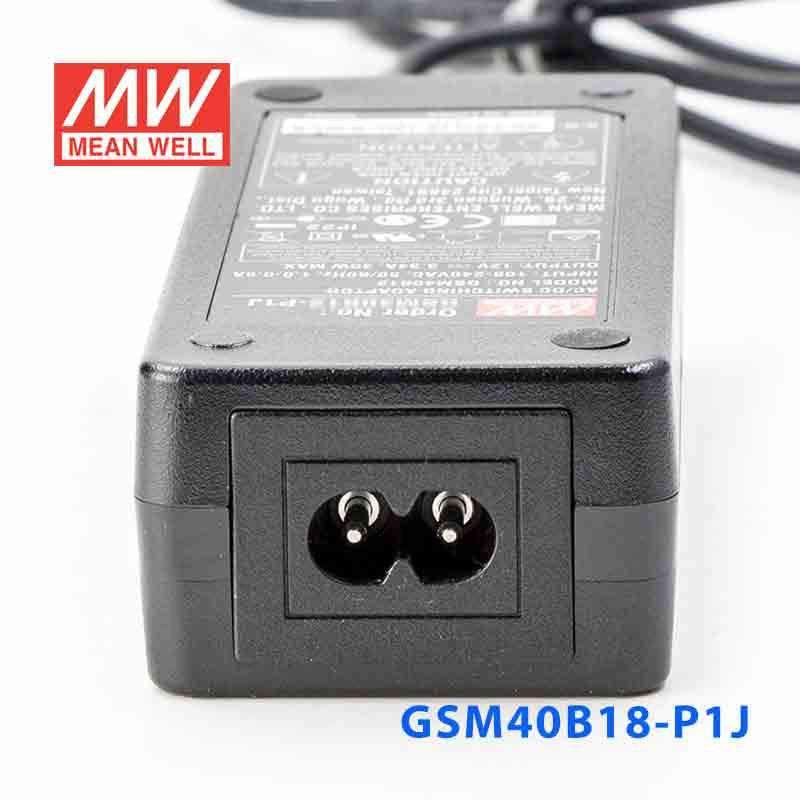

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

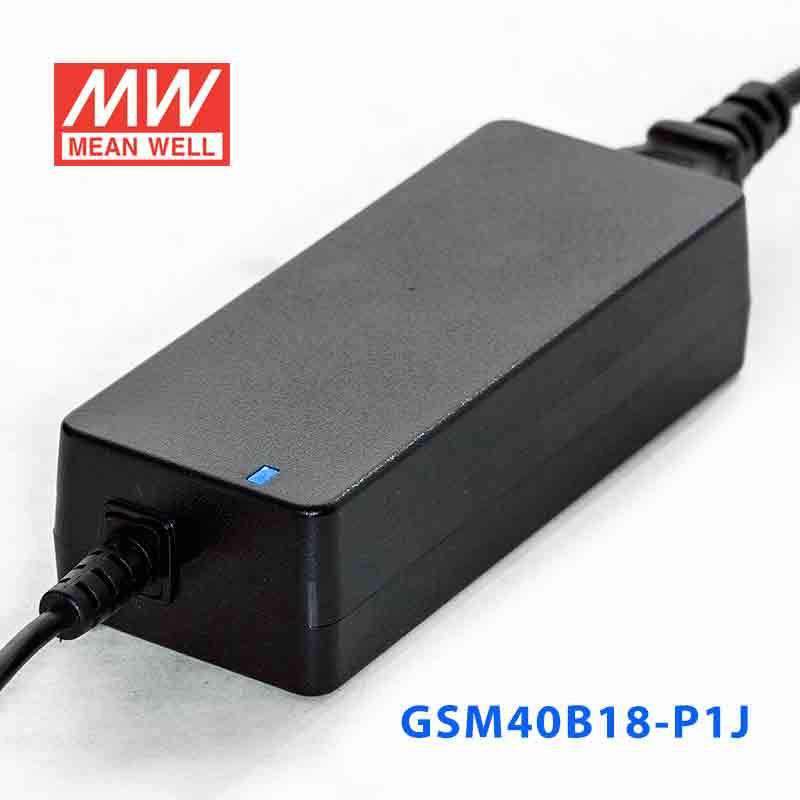

| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC , O/P-FG:SHORT |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 5~7.5V ; 100cm of UL1185, 16AWG for 9~12V; 150cm of UL1185, 16AWG for 15~48V |
| Dimension (LxWxH) | 125x 50x 31.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating40 Watt
-
Output Voltage18 Volt
-
Rated Current2.22 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40B18-P1J for an 18V automation controller or module?
Yes, if the controller requires constant voltage 18V DC and draws no more than 2.22A. This unit is rated for 40W total output, so both the voltage and load need to match those limits.
Is this 18V power supply suitable for industrial sensors or monitoring devices?
It can be used with industrial or monitoring equipment that is specified for 18V constant voltage input. The output capacity is 40W at 2.22A, so the connected load needs to remain within that range.
Can the GSM40B18-P1J power embedded equipment that needs 18V DC from AC mains?
It is designed for AC input from 80-264VAC and provides a constant voltage 18V output. That makes it appropriate for embedded equipment requiring 18V DC, provided the load stays at or below 40W and 2.22A.
Would this model work for a compact industrial instrument with an 18V requirement?
It can fit compact instruments that need 18V DC and do not exceed the 2.22A output rating. The housing dimensions are 125.0 × 50.0 × 31.5 mm, which can also matter where space is limited.
Can I use the GSM40B18-P1J in cold or hot operating environments?
The specified operating temperature range is -30°C to +70°C. The provided specs do not state an IP rating, so temperature capability is defined, but sealed indoor or outdoor suitability is not.
