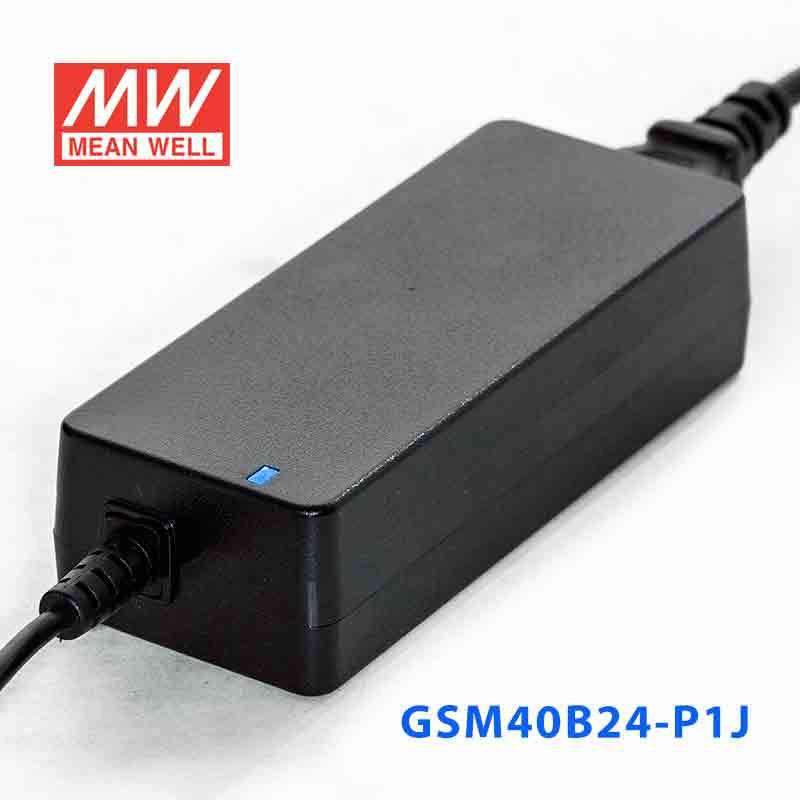

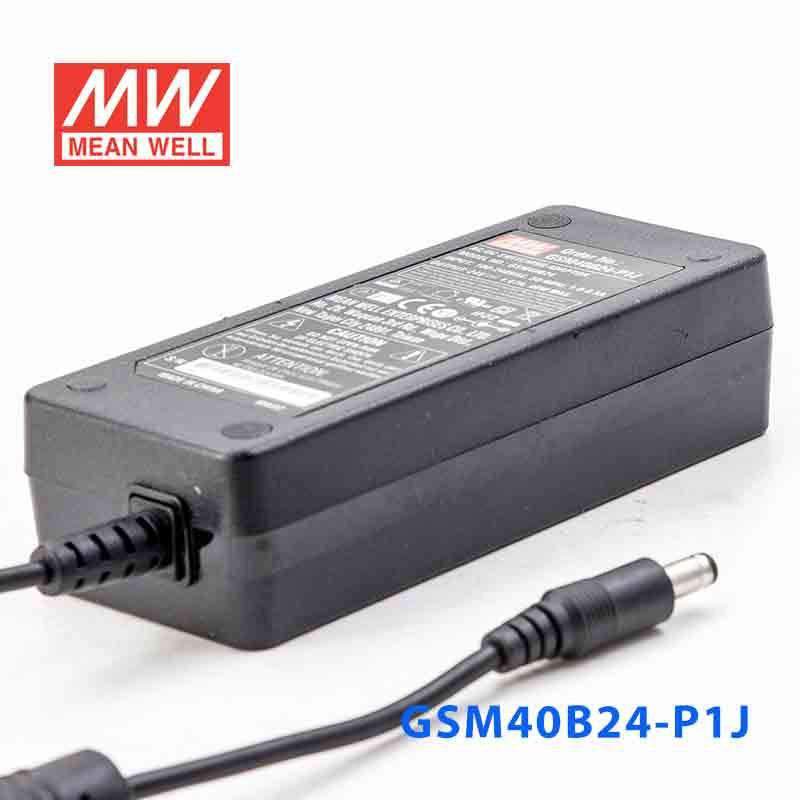

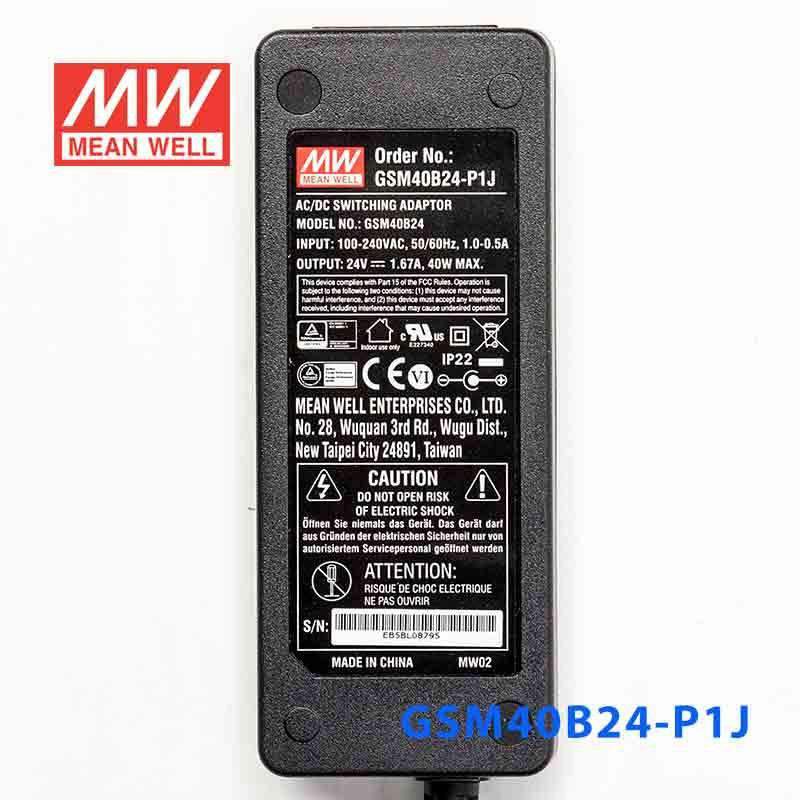

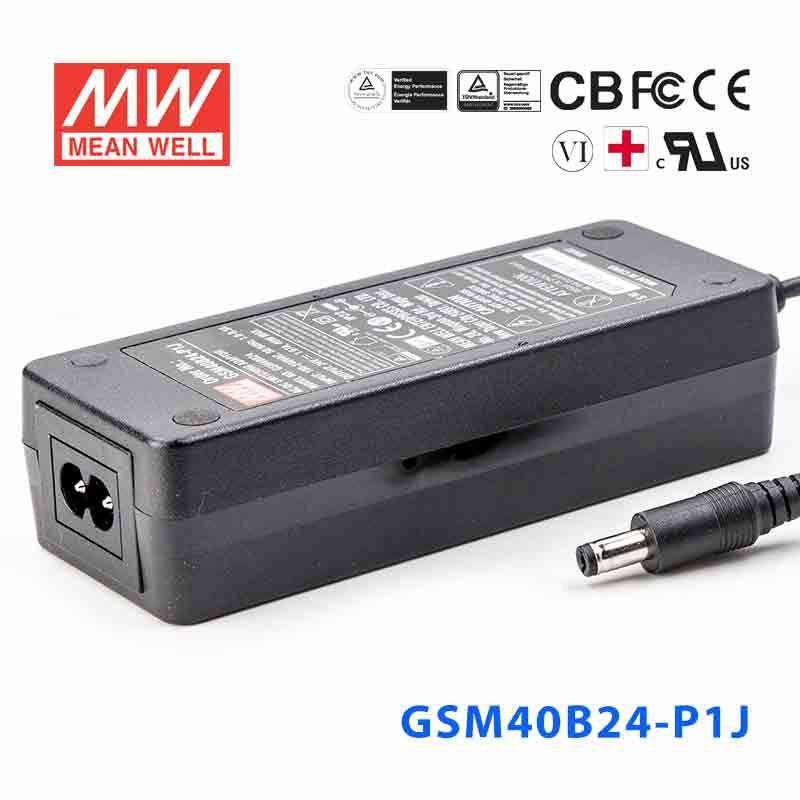

Mean Well GSM40B24-P1J Power Supply 40W 24V
Description
Description
Features
| Universal AC input / Full range |

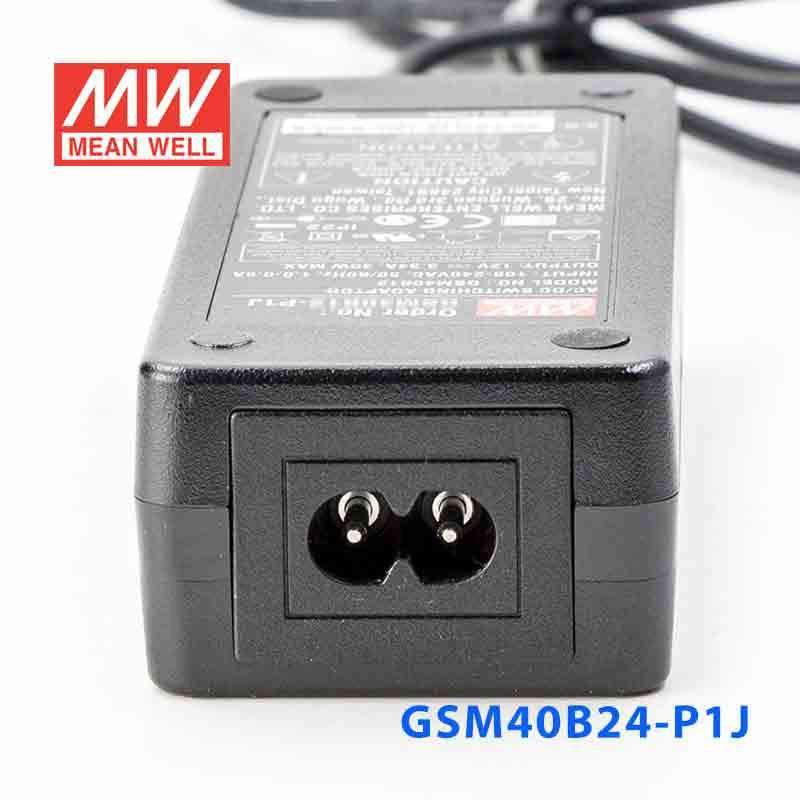

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC , O/P-FG:SHORT |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 5~7.5V ; 100cm of UL1185, 16AWG for 9~12V; 150cm of UL1185, 16AWG for 15~48V |
| Dimension (LxWxH) | 125x 50x 31.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40B24-P1J for a 24V PLC or industrial automation device?
Yes, this model provides constant voltage 24V output and is rated for 40W with 1.67A maximum current. It is suitable for PLCs or automation devices that require 24V DC and stay within that 1.67A limit.
Is the GSM40B24-P1J suitable for 24V sensors, relays, or control interfaces?
It can power 24V DC control hardware when the total load remains within 40W and 1.67A. Since it is a constant voltage unit, it should be matched to equipment designed for a 24V constant voltage supply.
Can this 24V power supply be used for embedded or communications equipment that needs 24V DC?
It can be used where the equipment input requirement is 24V DC and the current draw does not exceed 1.67A. The 80-264VAC input range is also useful for equipment deployed in different mains environments.
Would the GSM40B24-P1J work for low-power 24V industrial accessories in a cabinet?
Yes, it is a fit for low-power 24V accessories if the total demand stays within 40W. Its dimensions are 125.0 × 50.0 × 31.5 mm, which may help when planning cabinet space.
Is the GSM40B24-P1J appropriate for outdoor installations?
The operating temperature range is -30°C to +70°C, so the temperature spec is broad. However, no IP rating is listed in the provided specs, so outdoor or washdown suitability is not established here.
