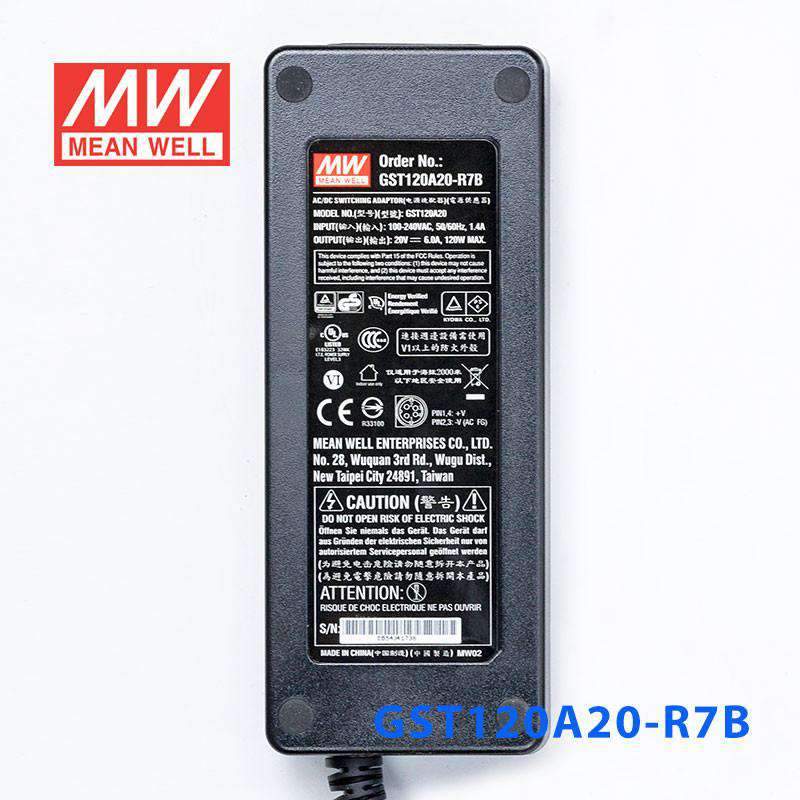

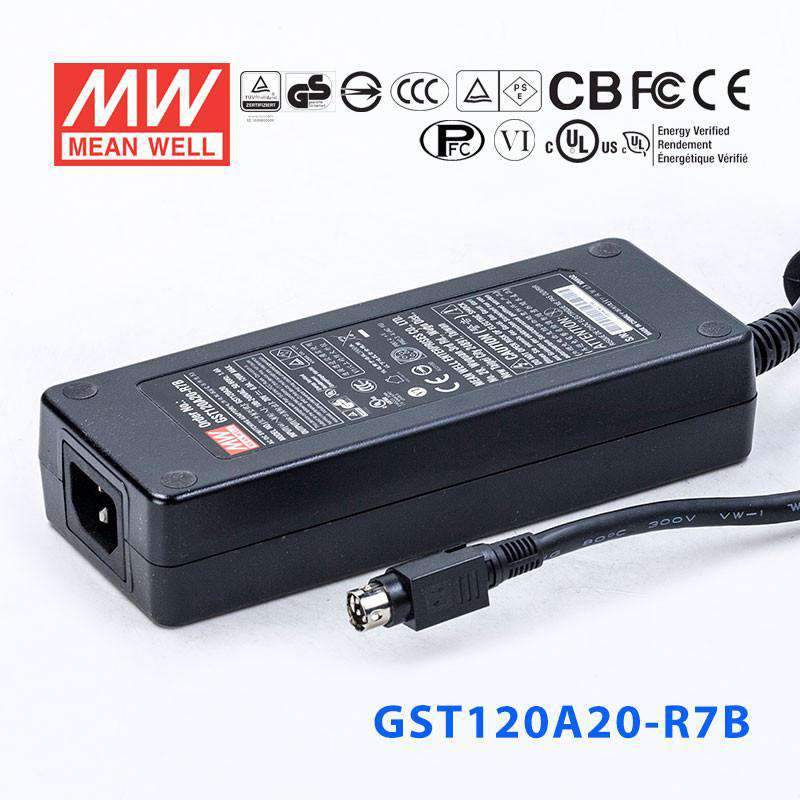

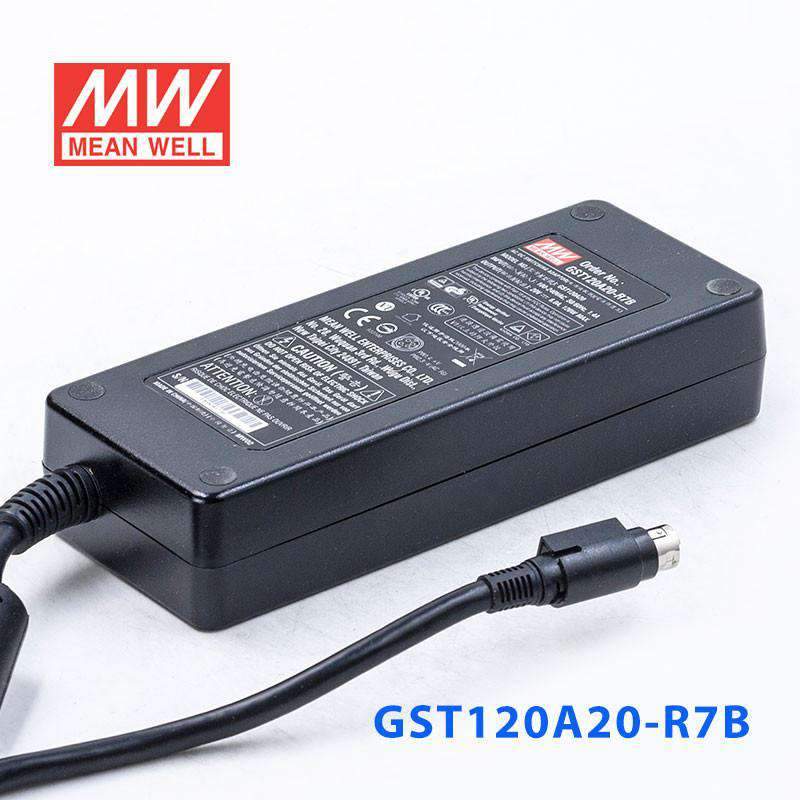

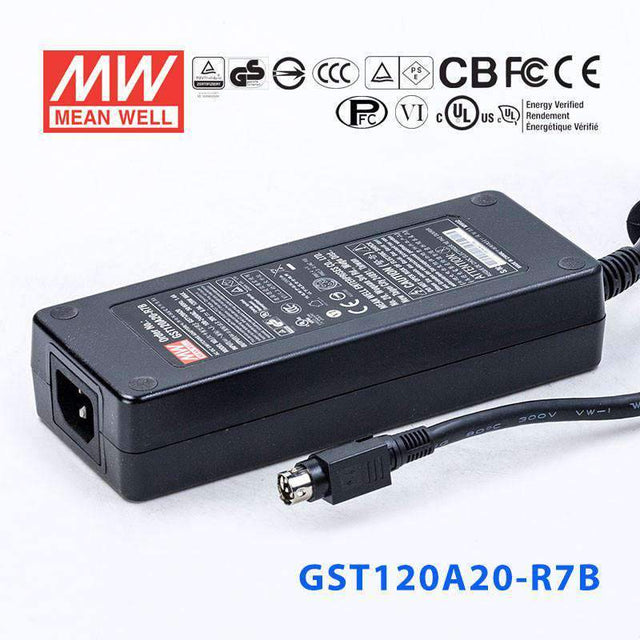

Mean Well GST120A20-R7B Power Supply 120W 20V

$46.85 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption < 0.15W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant

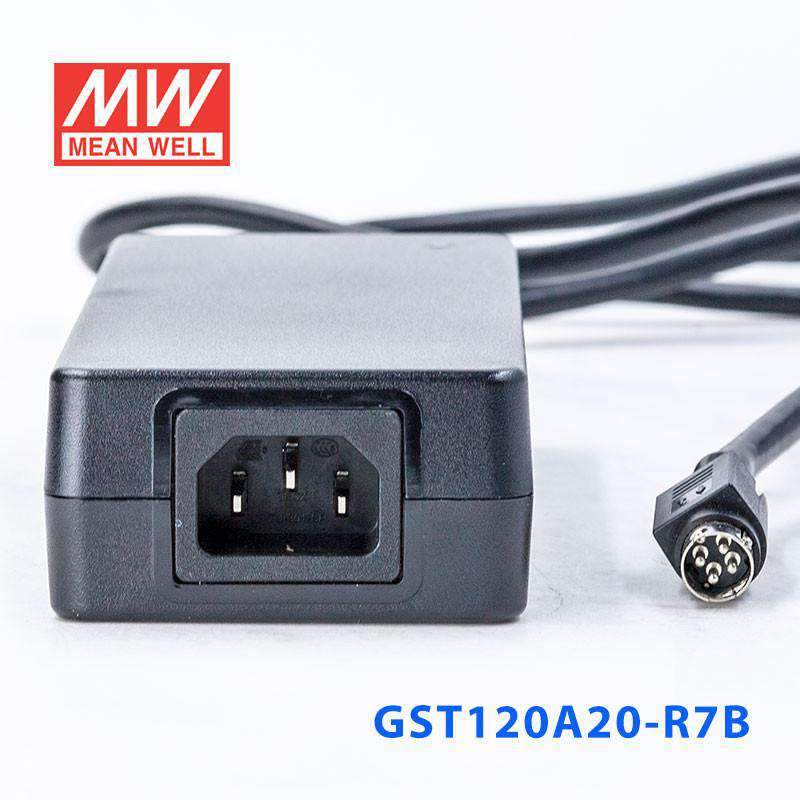

3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit /Overload / Over voltage/Over temperature
Fully enclosed plastic case

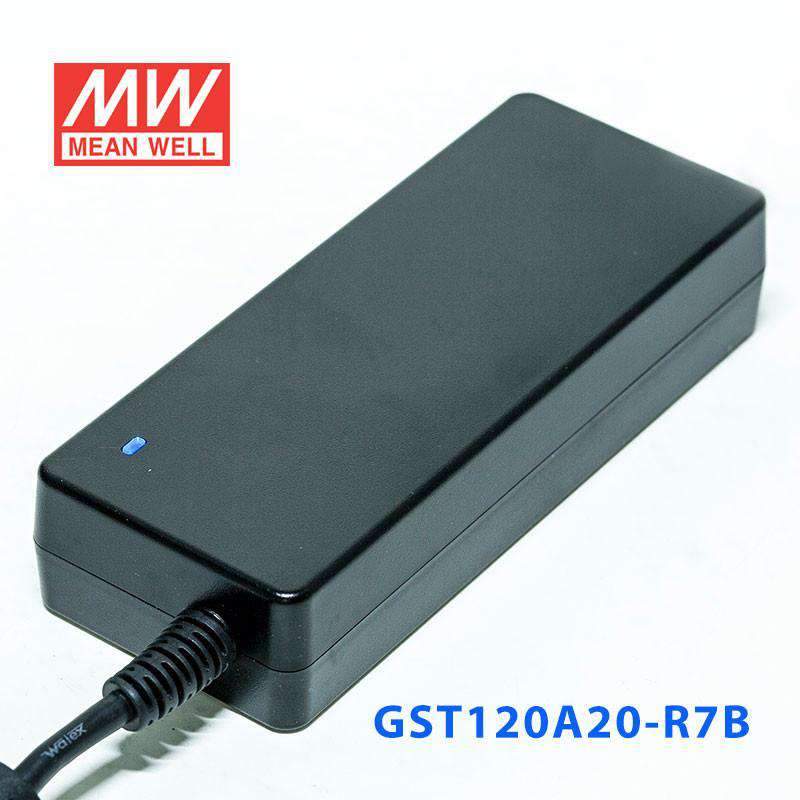

LED indicator for power on
Built-in active PFC function
3 years warranty


General Specification

AC input voltage range 85~264VAC 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
Overload protection 110%~160% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -40~+85°C (refer to output derating curve )
Safety standards UL60950-1,TUV EN60950-1, BSMI CNS14336, CCC GB4943,J60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 120cm of UL2464, 18AWGx4C
Dimension (LxWxH) 167x 67x 35mm
Standard DC plug Power DIN 4P with lock type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    120 Watt
  • Output Voltage
    20 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    6.57 in
  • Width
    2.64 in
  • Height
    1.38 in
  • Weight
    1.37 lb
