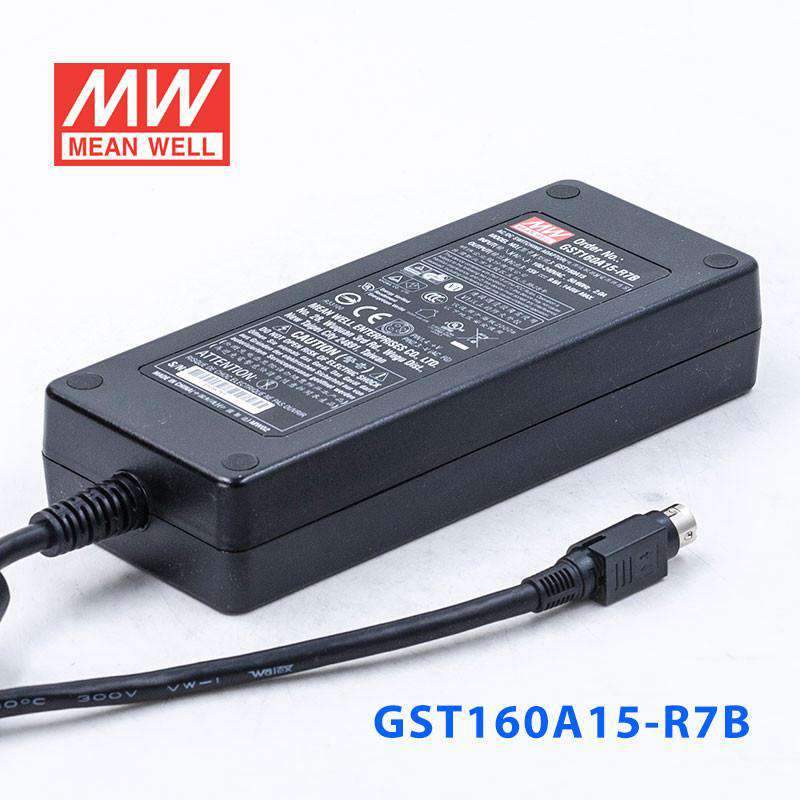

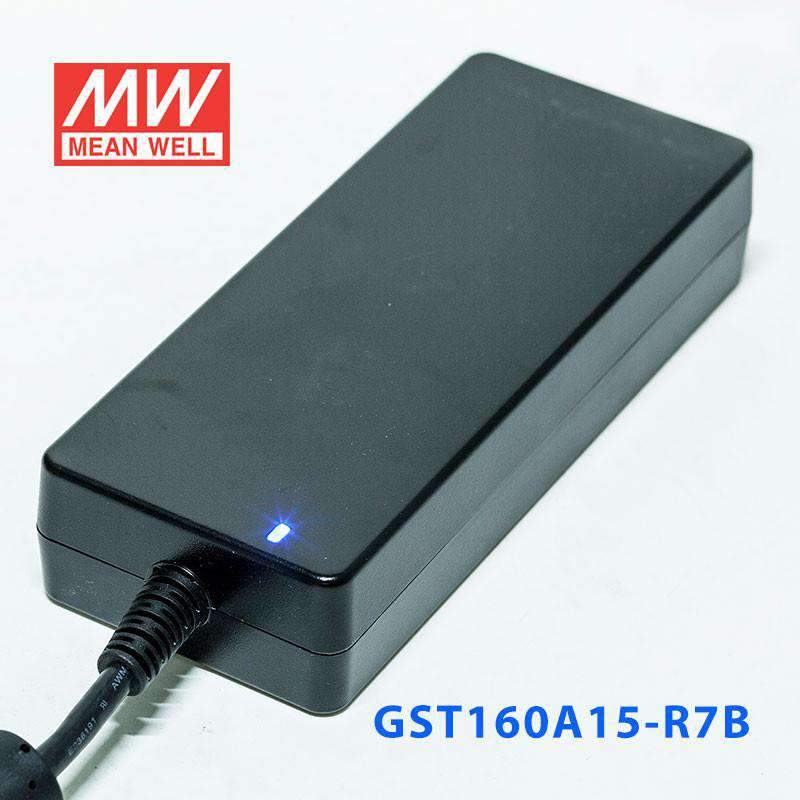

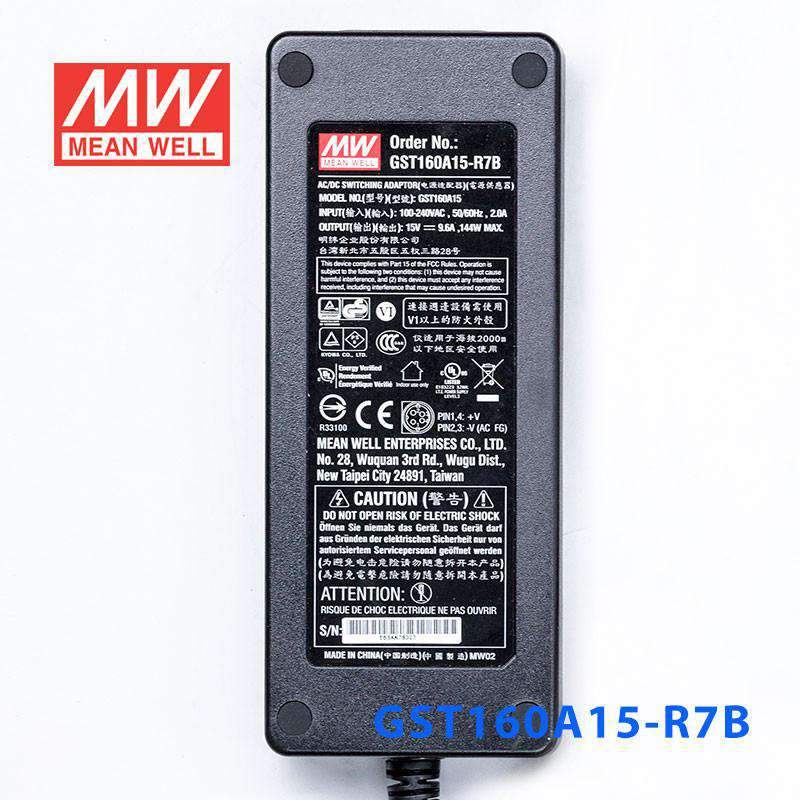

Mean Well GST160A15-R7BPower Supply 144W 15V
The GST160A15 is a 160W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1 BIS IS13252, KC K60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating144 Watt
-
Output Voltage15 Volt
-
Rated Current9.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GST160A15-R7B?
This model is a 144W desktop AC-DC power supply with a 15V DC output. It is rated for up to 9.6A output current. The unit is designed for applications that require this specific voltage and power level.
What input range does the GST160A15-R7B support?
The GST160A15-R7B has a universal input range of 85 to 264VAC or 120 to 370VDC. That makes it suitable for use across a wide range of standard mains environments. It also includes built-in active PFC and meets Energy Efficiency Level VI requirements.
What type of output connector does the GST160A15-R7B use?

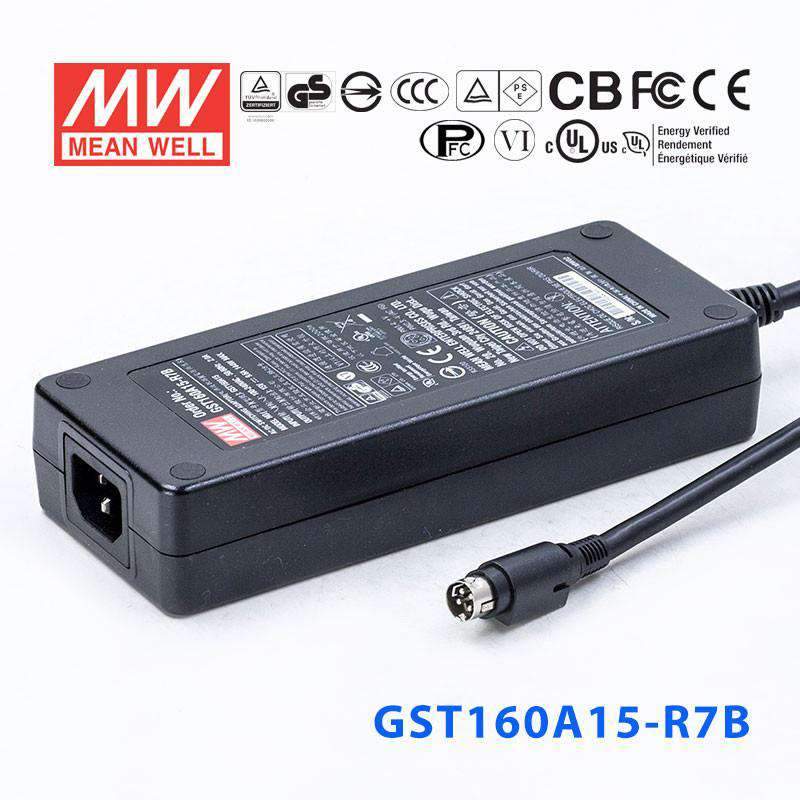

This model uses the R7B output configuration, which is a Power DIN 4P lock type plug. It is intended for equipment designed for that connector style and a 15V DC supply. Buyers should confirm both plug format and electrical rating before selecting it.
Is the GST160A15-R7B suitable for industrial or commercial environments?
It is well suited to commercial and light industrial use where a fanless enclosed desktop power supply is preferred. The unit includes short circuit, overload, over voltage, and over temperature protection for added operational safety. Its Class I design also uses an earth pin configuration.
What operating environment can the GST160A15-R7B handle?
The specified working temperature range is -30°C to +70°C. The design is fanless and fully enclosed in a plastic case, which can be useful where low noise and a contained form factor are important. Environmental fit should still be checked against the end equipment enclosure and load conditions.
How does the GST160A15-R7B compare with lower-power 15V adapters?
The main differentiator is output capacity: this model delivers up to 144W at 15V, which is significantly higher than smaller desktop adapters. It is intended for applications that need up to 9.6A from a single supply. It also includes industrial-style protections and a locking Power DIN 4P output format rather than a generic barrel plug.
