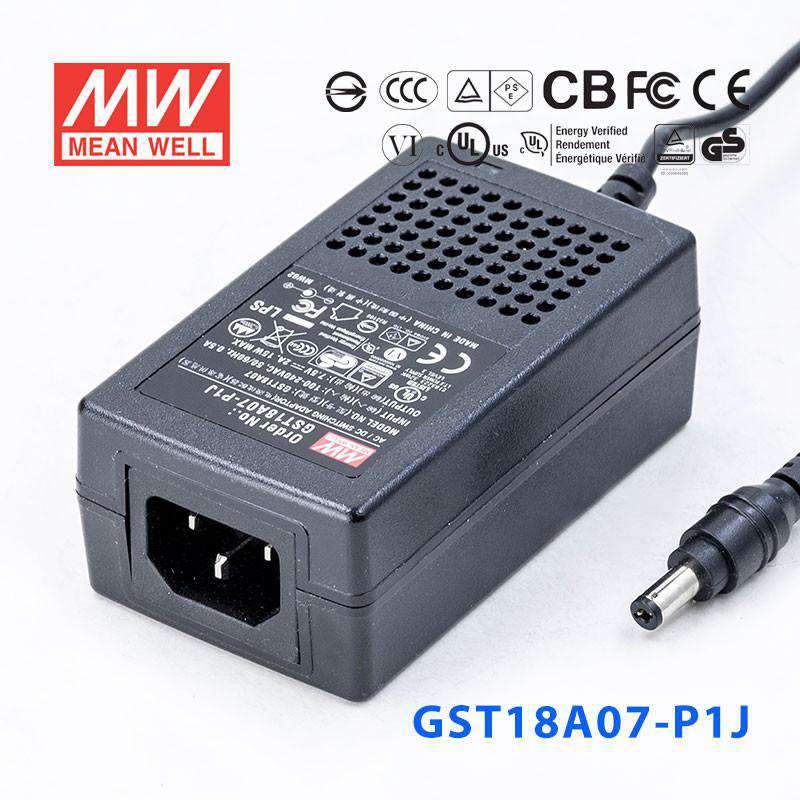

Mean Well GST18A07-P1J Power Supply 15W 7.5V
The GST18A07 is a 18W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST18A07-P1J for equipment that needs 7.5V DC?
This model delivers constant-voltage 7.5V output with a 15W maximum and up to 2A current. It is a fit for devices specifically designed for 7.5V DC, provided their load stays within that 2A limit.
Is the GST18A07-P1J suitable for small embedded or industrial electronics with a 7.5V input?
It can be used for compact embedded or industrial electronics that require a regulated 7.5V constant-voltage supply. The main sizing check is that the total demand does not exceed 15W or 2A.
Can this 7.5V power supply support low-power control or instrumentation devices?
For low-power control or instrumentation devices that run on 7.5V DC, this supply can be appropriate because it provides constant-voltage output at up to 2A. It is better suited to lighter loads than to equipment with higher current demand.
Would the GST18A07-P1J work for 7.5V communication or peripheral hardware?
It may work well for 7.5V peripheral or communication hardware if the device requires constant-voltage input and remains within the 15W output rating. Matching the required voltage to 7.5V is the first selection step for this model.
Is the GST18A07-P1J intended for indoor use only?
The temperature specification is -30°C to +70°C, so the product data supports operation across a broad ambient range. However, no IP rating is listed, so the provided specs do not establish outdoor or weather-exposed suitability.
