Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

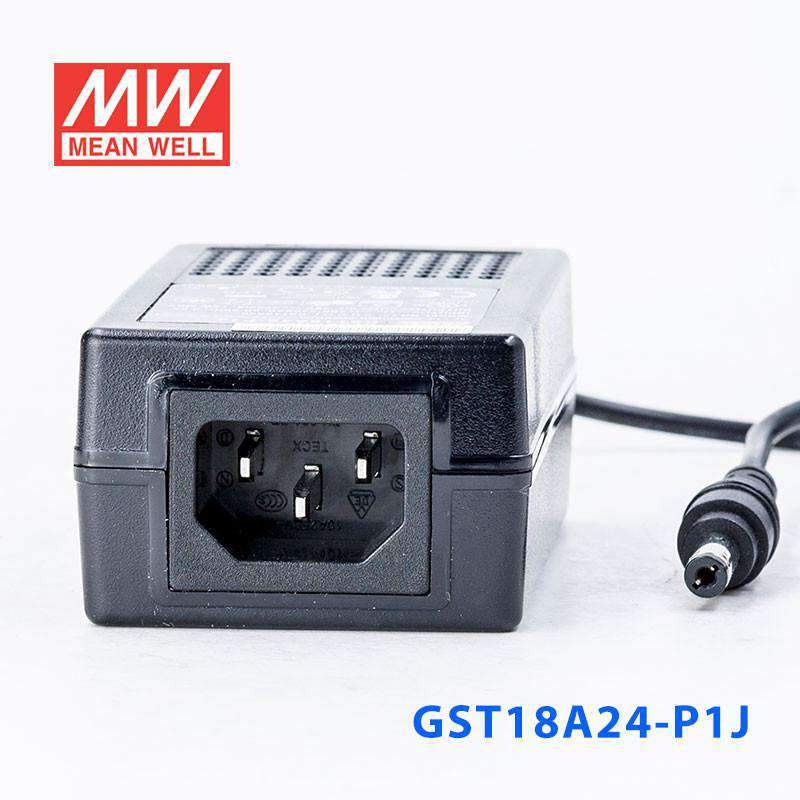

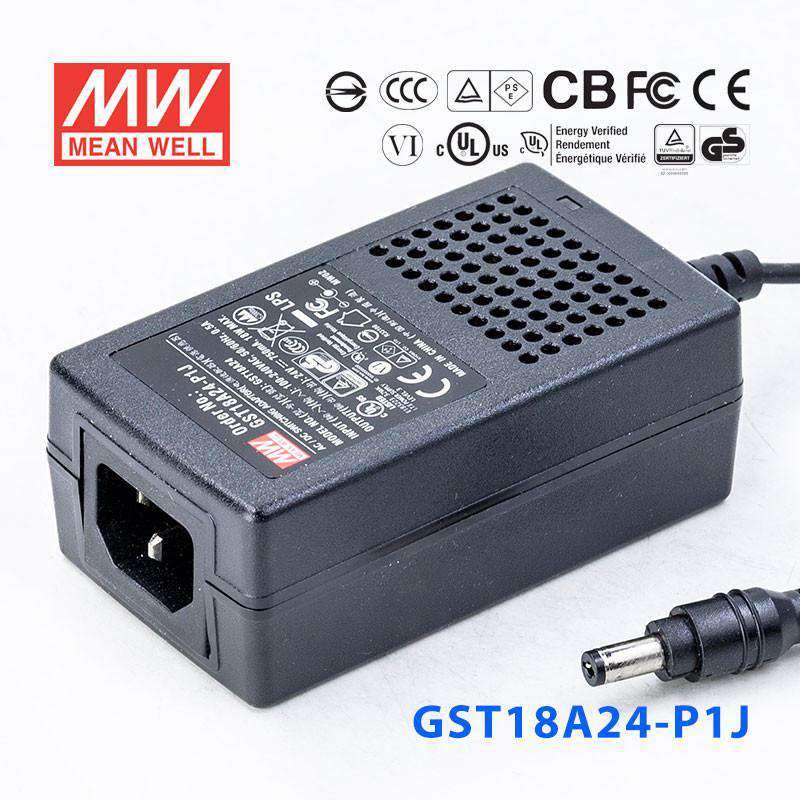

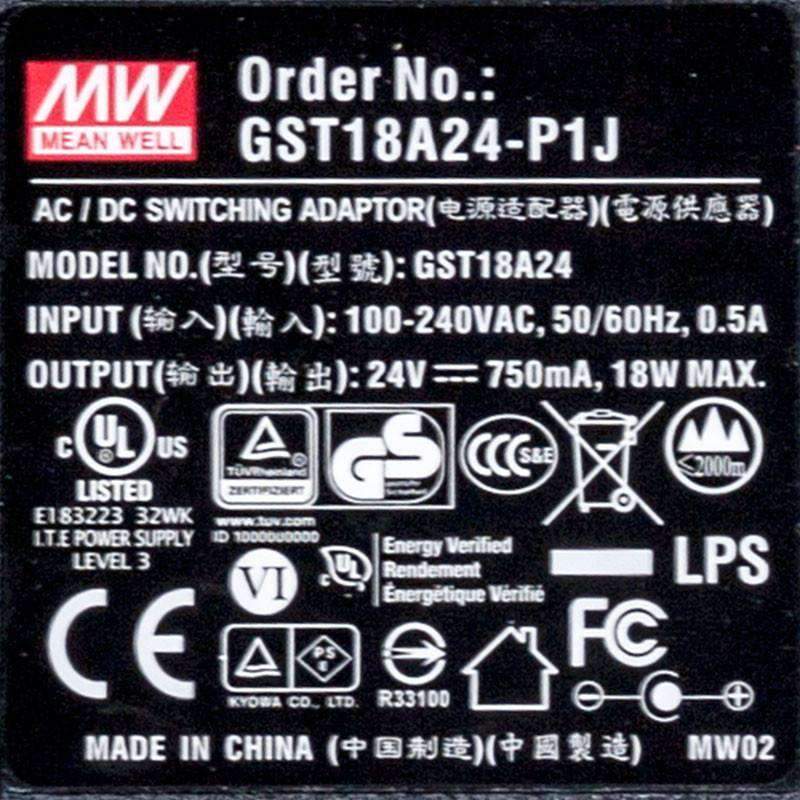

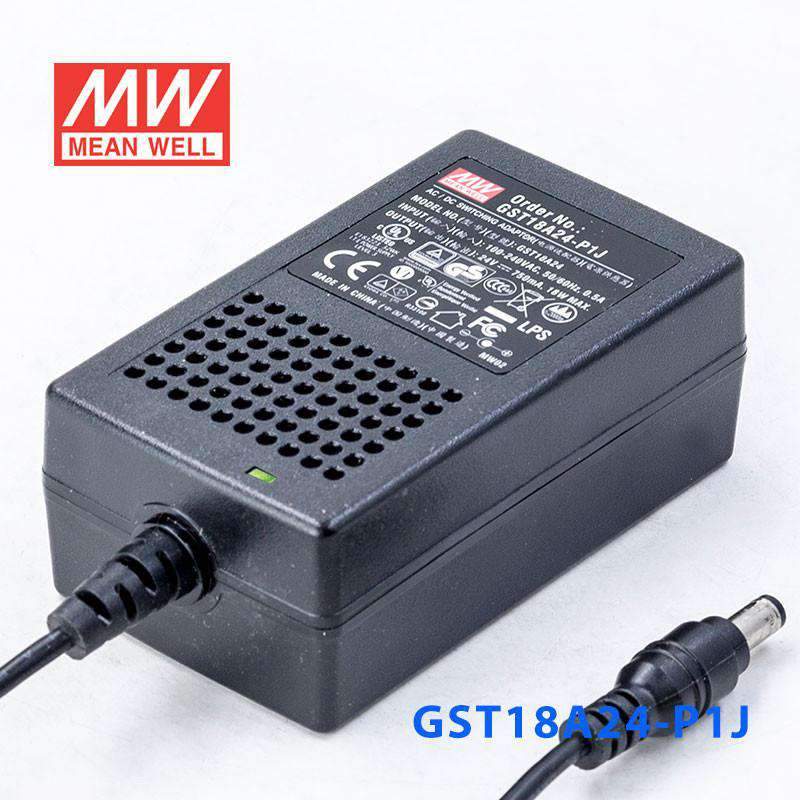

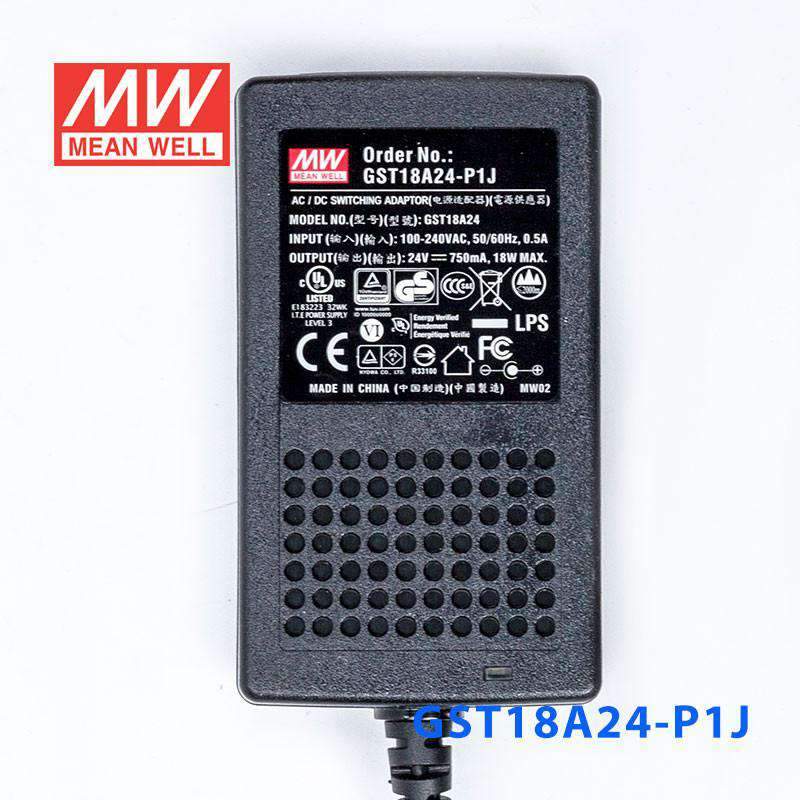

Mean Well GST18A24-P1J Power Supply 18W 24V
The GST18A24 is a 18W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating18 Watt
-
Output Voltage24 Volt
-
Rated Current0.75 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST18A24-P1J for a 24V PLC accessory or industrial control module?
Yes, if the module requires constant 24V DC and draws no more than 0.75A. With an 18W output rating, it is suited to lighter-duty 24V control and automation loads within that limit.
Is this 24V adapter a good fit for compact embedded or instrumentation systems?
It can fit 24V embedded electronics or instruments that need a regulated constant-voltage source and remain at or below 0.75A. The 85-264VAC input range also makes it usable in facilities with different AC input standards.
Can the GST18A24-P1J power small 24V sensors, relays, or interface devices?
It may be used where the total 24V load stays within 18W and 0.75A. It is intended for constant-voltage 24V equipment, so the device specifications should match that output mode.
How can I tell whether this is large enough for my 24V application?
Check whether the equipment needs 24V DC and whether its current stays at or below 0.75A. If either the current or total power requirement exceeds 18W, this model is not the right size.
Is the GST18A24-P1J rated for outdoor use?
The temperature specification is -30°C to +70°C, so the operating range itself is wide. However, the provided specs do not include an IP rating, so outdoor or wet-location suitability is not confirmed here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GST18 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST18A05-P1J Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $14.27 | View |
| Mean Well GST18U48-P1J Adaptor 18W 48V | 18W | 48V | 0.37A | Indoor | $12.50 | View |
