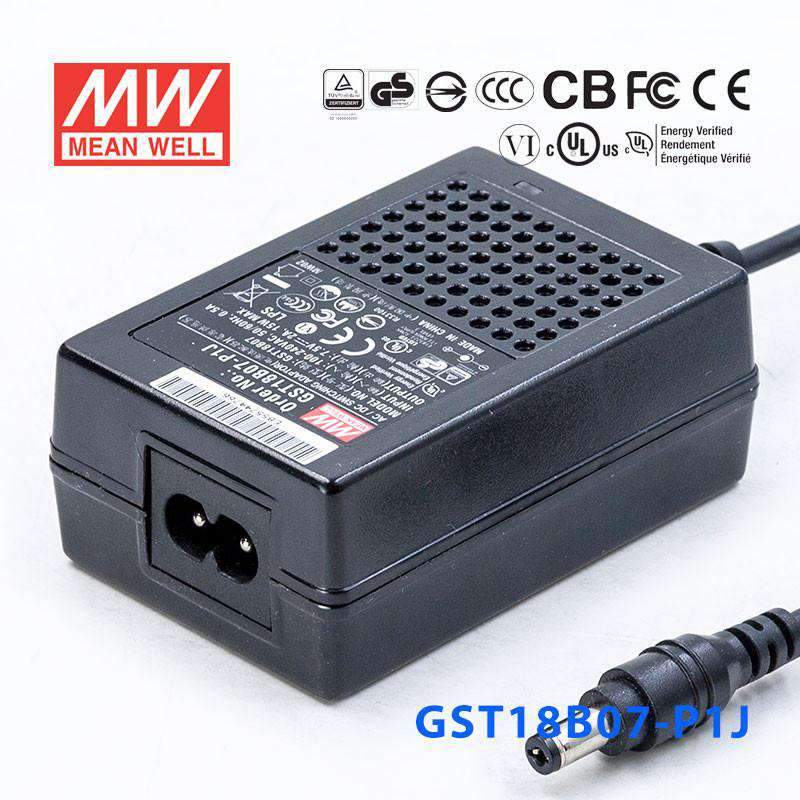

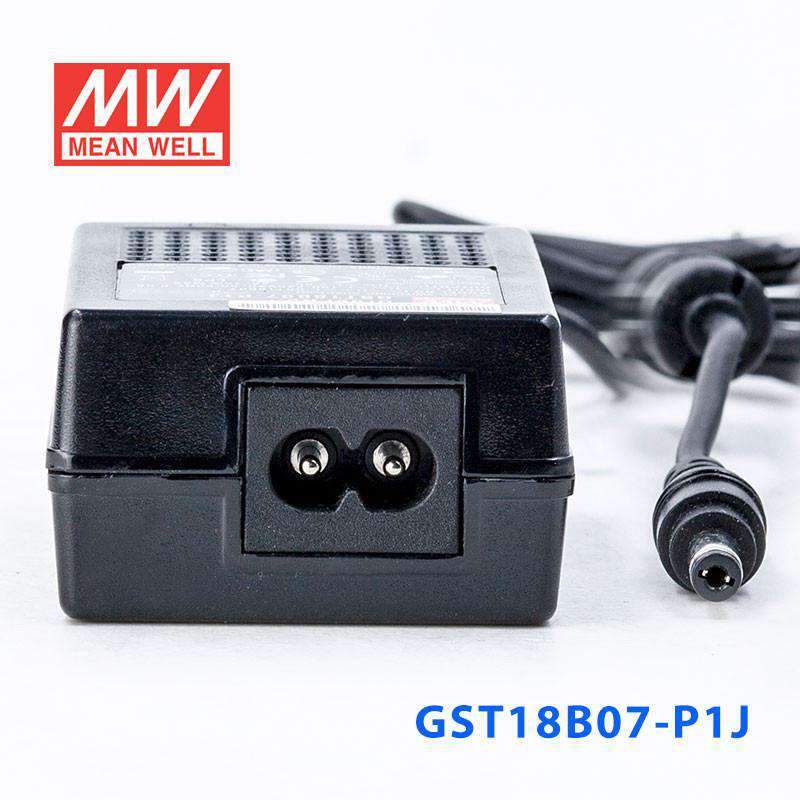

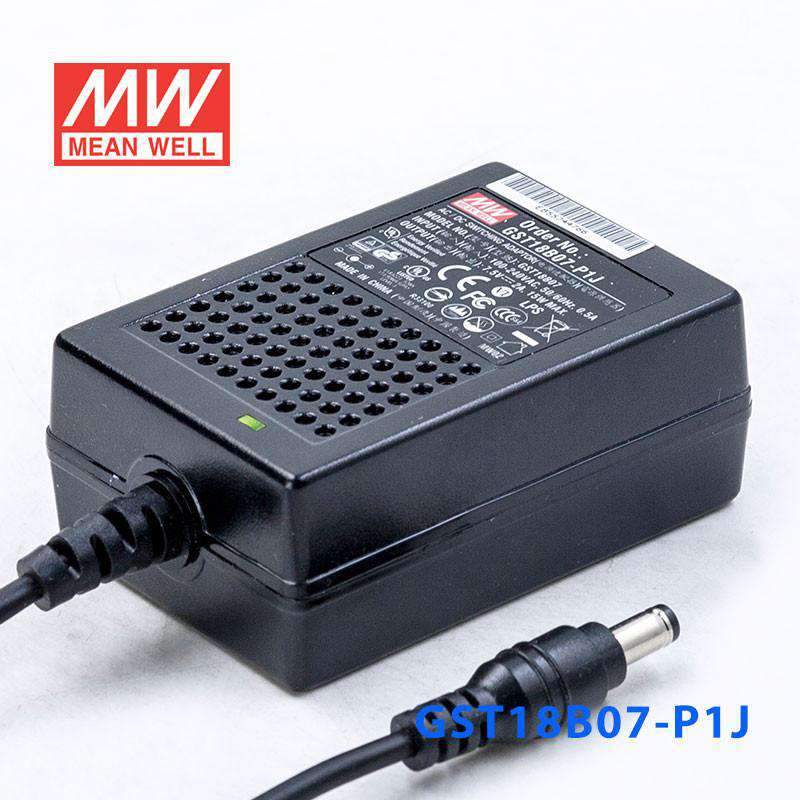

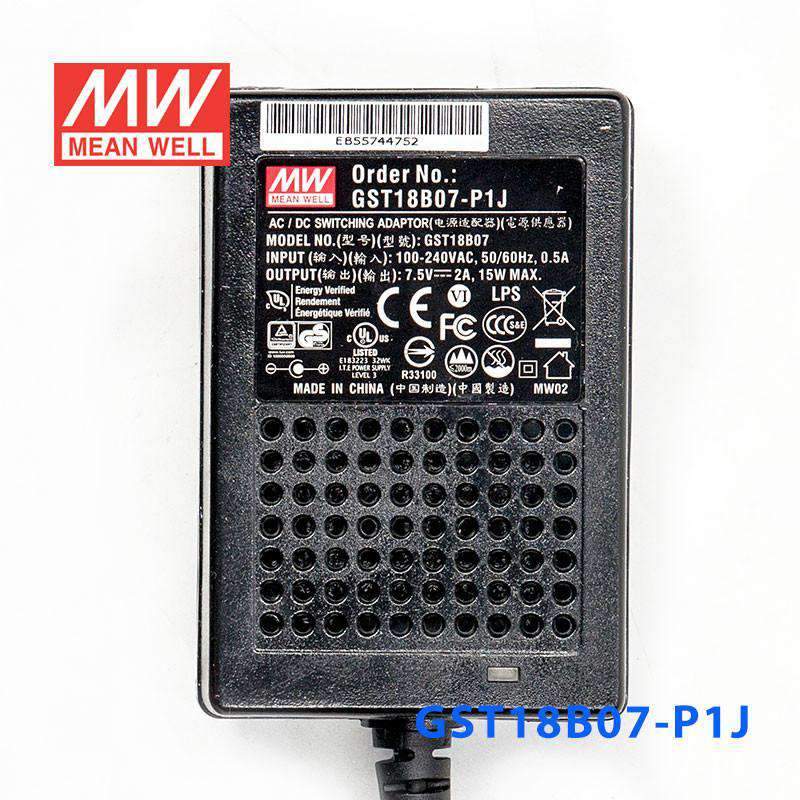

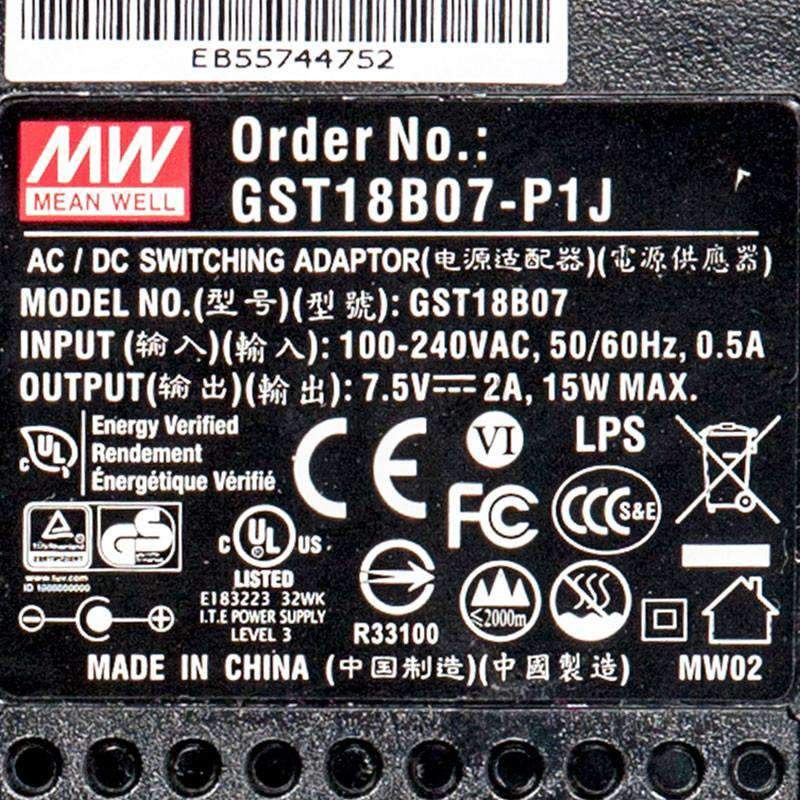

Mean Well GST18B07-P1J Power Supply 15W 7.5V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant for A/U type |
| 2 pole USA / EURO plug or IEC320-C14/C8 |
| Class I power (with earth pin) only |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage, clamp by zener diode |
| Withstand voltage | I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V |
| Dimension (LxWxH) | 93x 54x 36 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CCC,CE,EAC,FCC,KC,PSE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST18B07-P1J for a 7.5V router, gateway, or network peripheral?
Yes, if the device is specified for 7.5V DC input and draws no more than 2A or 15W. This model provides constant-voltage 7.5V output, which suits electronics that require a fixed 7.5V rail. The 85-264VAC input range also supports use across varied AC mains conditions.
Is this 7.5V power supply suitable for small industrial control accessories?
It can work for low-power industrial accessories that call for 7.5V constant voltage and stay within 2A and 15W. That makes it more suitable for compact electronics and control accessories than for higher-power actuators or larger automation hardware. Buyers should confirm the accessory is actually rated for 7.5V input.
Can the GST18B07-P1J power a 7.5V test instrument or handheld dock?
Yes, it is appropriate for 7.5V equipment that needs a constant-voltage source up to 2A and 15W. This makes it a practical option for lighter-duty test or support equipment with a 7.5V requirement. Its small 79.0 × 54.0 × 33.0 mm housing also helps where space is limited.
Would this model fit a 7.5V embedded audio or communications device?
It can be a fit if the device requires regulated 7.5V DC and its total load does not exceed 2A or 15W. The unit is a constant-voltage supply, so it is intended for electronics with a defined 7.5V input requirement. It is not the right choice for products that need a different voltage rail.
Is the GST18B07-P1J meant for indoor or outdoor use?
The operating temperature range is -30°C to +70°C, which supports use in a wide range of protected environments. However, the provided specifications do not list an IP rating, so outdoor exposure or wet locations should not be assumed safe. It is best treated as a power supply for indoor or enclosure-protected applications.
