Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

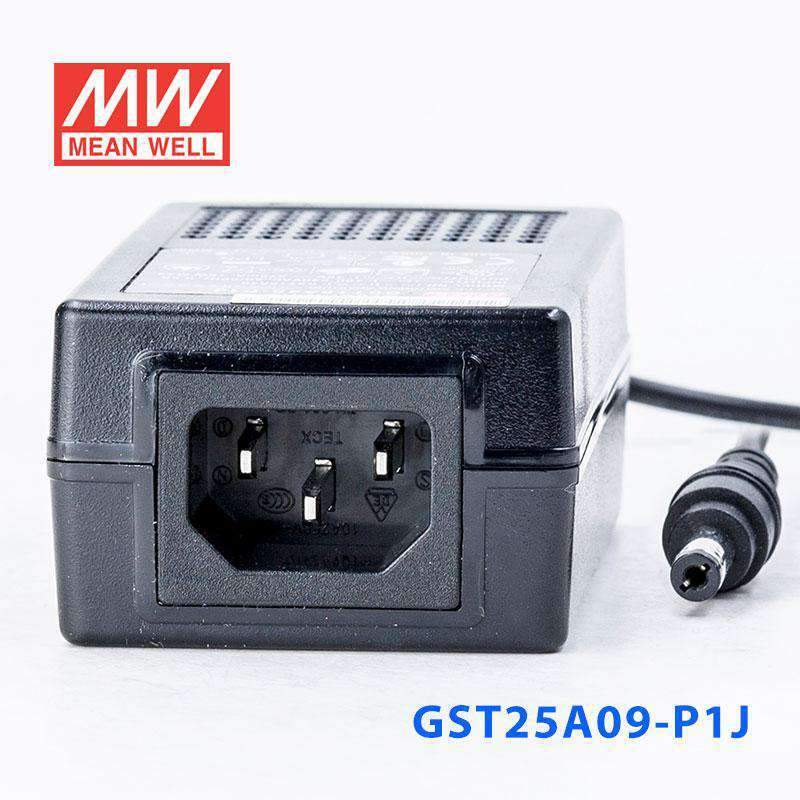

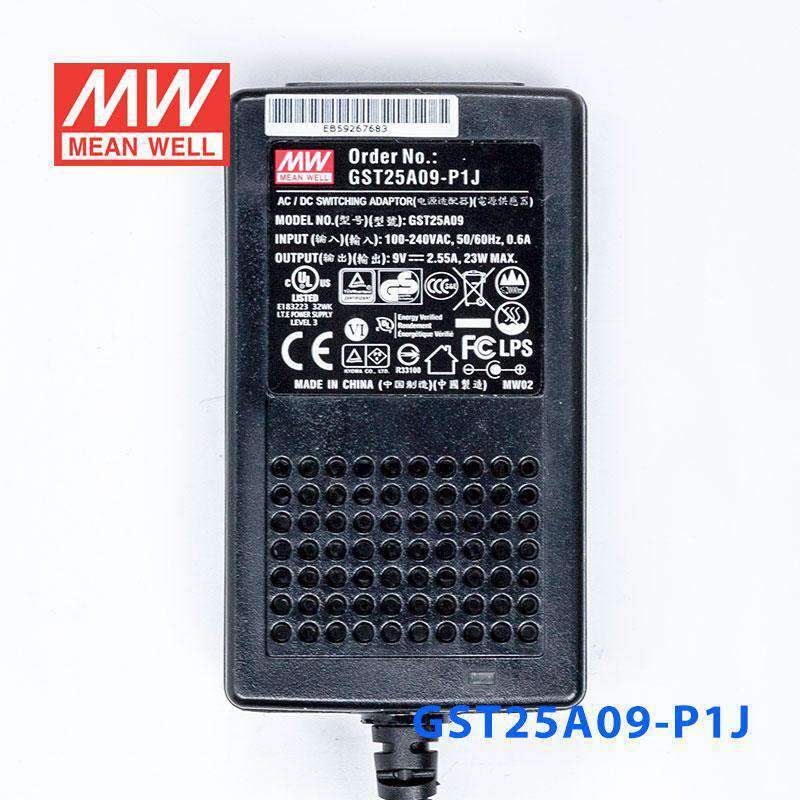

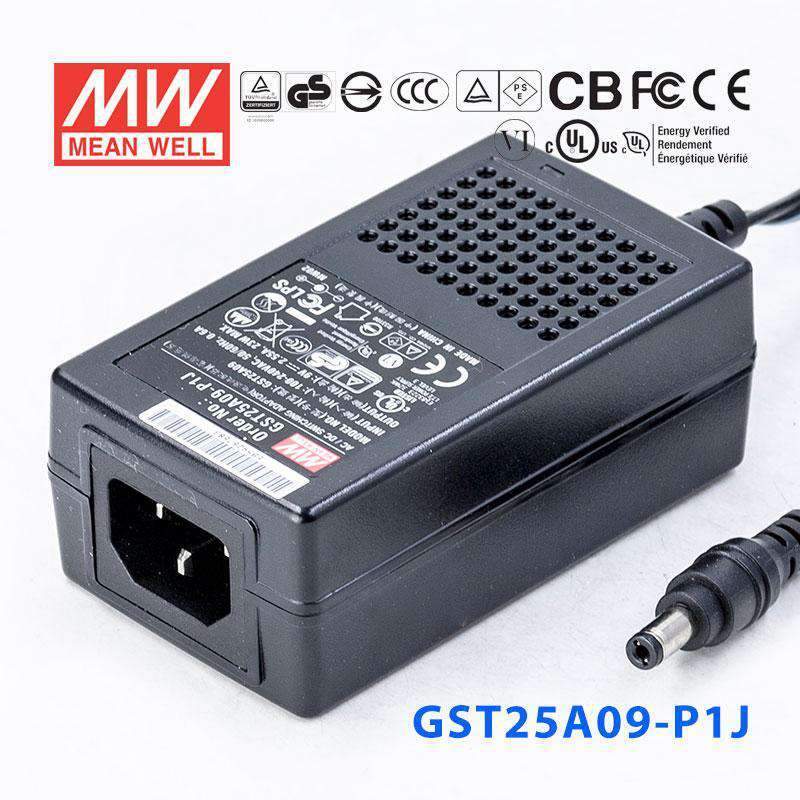

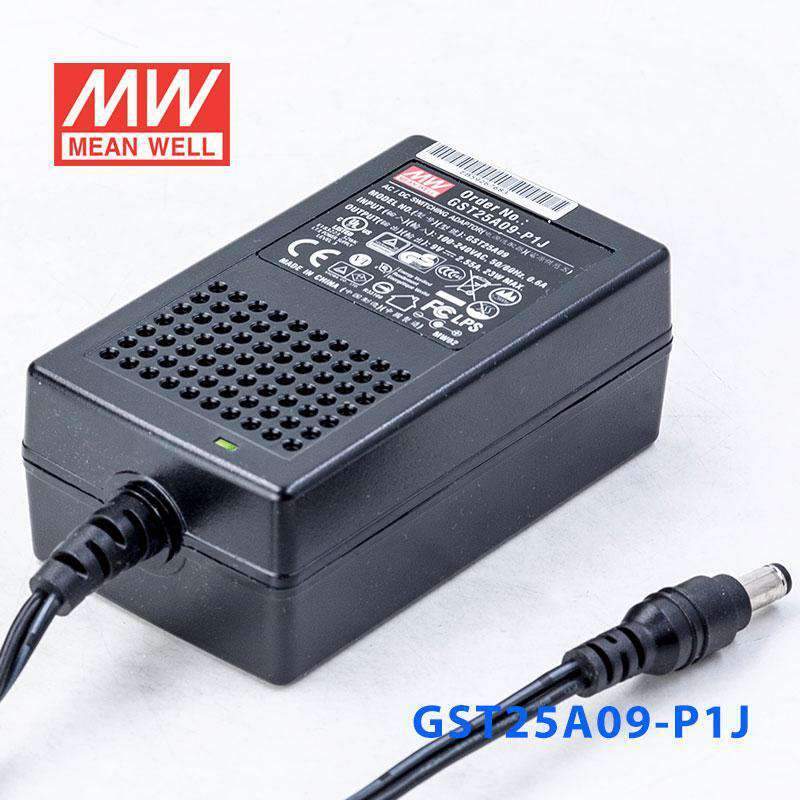

Mean Well GST25A09-P1J Power Supply 23W 9V
$13.56 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant for A/U type |
| 2 pole USA / EURO plug or IEC320-C14/C8 |
| Class I power (with earth pin) only |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage, clamp by zener diode |
| Withstand voltage | I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V |
| Dimension (LxWxH) | 93x 54x 36 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating23 Watt
-
Output Voltage9 Volt
-
Rated Current2.55 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
