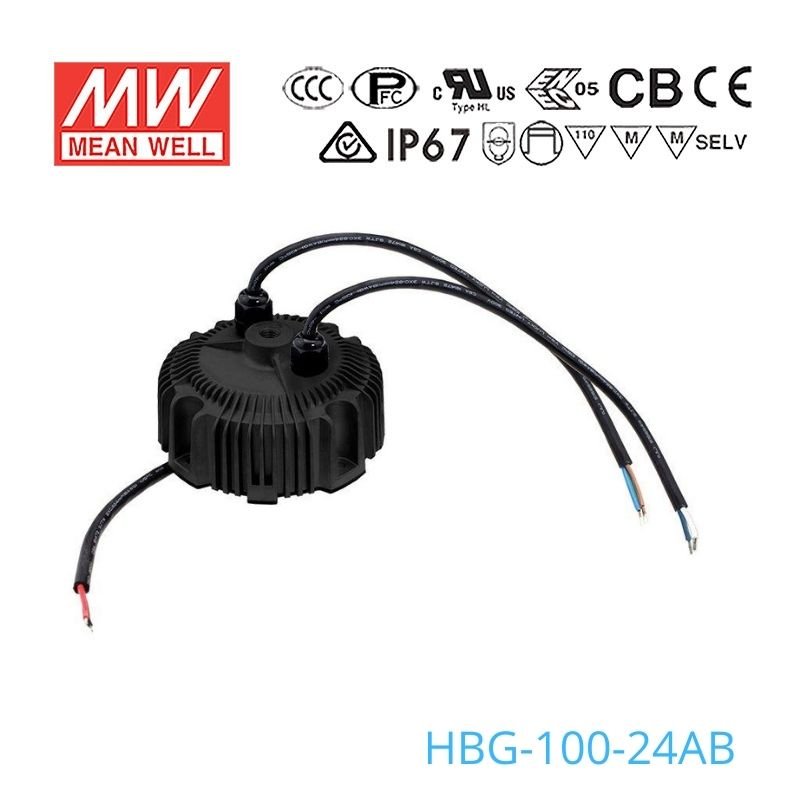

Mean Well HBG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage25 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HBG-100-24AB for a dimmable constant-current LED downlight?
Yes, this version is suited to a constant-current LED downlight when the LED load operates within the 14-24V constant-current range and remains within 96W. It is a constant-current driver rather than a constant-voltage supply, so it should be paired with LED loads designed for current-regulated operation. The adjustable and dimmable version is useful when the fixture design calls for output control at the driver level.
Is the HBG-100-24AB a good fit for dimmable signage modules?
It can be a fit for signage modules if they are constant-current LED loads and their total demand stays within the 14-24V CC range and 96W limit. It is not intended for signage products that require a fixed 24V constant-voltage source. The adjustable and dimmable variant is typically chosen when brightness control is part of the project requirement.
Can this driver power a small LED array where light level control is needed?
Yes, provided the small LED array is designed for constant-current operation and its total forward-voltage requirement fits within 14-24V. The driver is rated for 96W, so the array must stay within that power ceiling. This makes it a practical option for compact LED arrays where adjustable or dimmable output is part of the specification.
How do I know if my LED load is compatible with the HBG-100-24AB?
Compatibility depends on whether the LED load is a constant-current load that fits within the 14-24V CC output range and the 96W power rating. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver. If the load expects constant voltage instead, this is the wrong driver type.
What is the difference between the HBG-100-24AB and other HBG-100 series options?
Within the HBG-100 family, the 24V versions are 96W with 4mA output current and a 14-24V CC range, the 36V versions are 97.2W with 2.7mA and a 21-36V CC range, the 48V versions are 96W with 2mA and a 28-48V CC range, and the 60V versions are 96W with 1.6mA and a 36-60V CC range. The HBG-100-24, HBG-100-24A, HBG-100-24B, and HBG-100-24DA share the same 96W, 4mA, 14-24V electrical class as this unit, while the E version is listed without specs here. The HBG-100-24AB is the adjustable and dimmable member of that 24V electrical group.
Is the HBG-100-24AB appropriate for hot, cold, or wet locations?
This driver is rated IP65 water-resistant and has an operating temperature range of -40°C to +85°C. That makes it suitable for harsh indoor or protected outdoor conditions where moisture resistance and broad temperature tolerance matter. The final enclosure and fixture still need to match the real installation environment.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBG-100 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-100-48AB Power Supply 100W 48V - Adjustable and Dimmable | 96W | 49V | 2A | IP65 | $49.09 | View |
