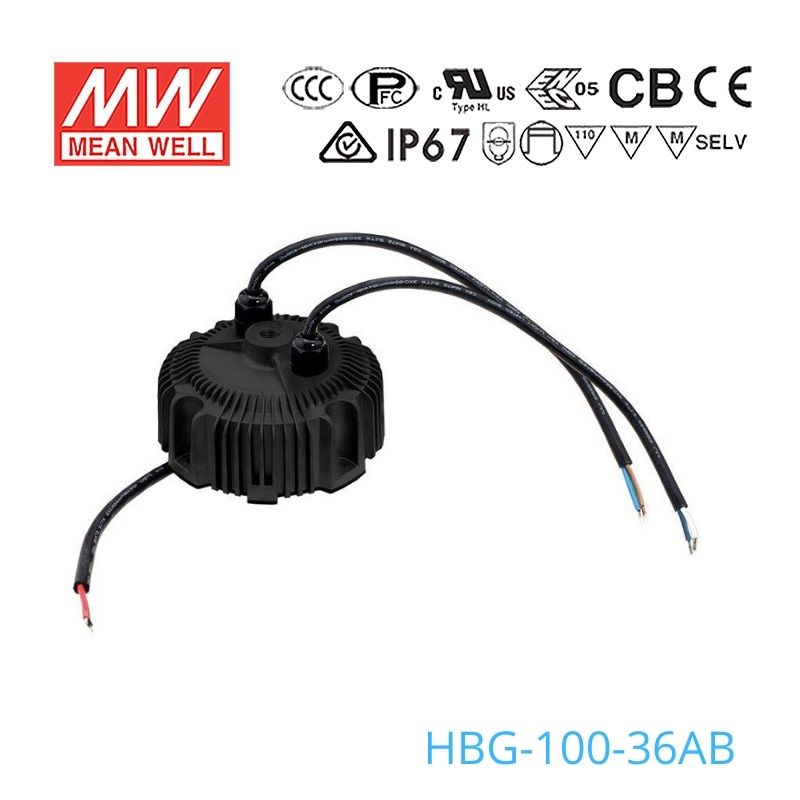

Mean Well HBG-100-36AB Power Supply 100W 36V

Name: Mean Well HBG-100-36AB Power Supply 100W 36V - Adjustable and Dimmable
Brand: Mean Well
SKU: HBG-100-36AB
Price: 49.09 USD
Availability: InStock

Overview

HBG-100-36AB is the model of this series: rated current 2.7A, rated power 97.2W, typical efficiency 91%. Type AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function (IP65).

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100-36ABSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 2.7A
RATED POWER: 97.2W
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
OPEN CIRCUIT VOLTAGE(max.): 37V
CURRENT ADJ. RANGE: Adjustable for AB-Type (via built-in potentiometer) 1.62 ~ 2.7A
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.5: 91%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ130mm *66.5mm (D * H)
PACKING: 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-100-36AB BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100-36AB DIMMING OPERATION — DIMMING OPERATION

HBG-100-36AB Illustration (page 5) — Illustration (page 5)

HBG-100-36AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HBG-100-36AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100-36AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100-36AB MECHANICAL SPECIFICATION ※ Blank-Type — MECHANICAL SPECIFICATION ※ Blank-Type

HBG-100-36AB MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-100-36AB MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-100-36AB INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-100-36AB datasheetHBG-100-spec.pdf · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-36 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can the HBG-100-36AB run a constant current LED downlight with a mid-voltage LED engine?

Yes, if the LED engine is specified for constant current operation and its total forward voltage falls within the 21.6-36V CC range. It is not intended for constant voltage 36V products that need a fixed-voltage output.

Is this driver appropriate for a small LED array in a round fixture design?

Yes, it can be appropriate for a small LED array when the load is constant current, stays within 21.6-36V, and does not exceed 97.2W. The circular housing and high/low bay positioning make it relevant for integrated fixture builds.

Can I use the HBG-100-36AB for a signage or display light engine?

Yes, for signage or display light engines that are designed as constant current loads within the 21.6-36V range. It is not the right choice for common constant voltage LED signage modules.

Is the HBG-100-36AB suitable for indoor industrial areas with dust and water spray?

Yes, the HBG-100 series is IP65 or IP67 approved and this model has an operating case temperature (Tcase) range of -40°C to +85°C. That makes it suitable for demanding indoor environments with dust and water spray, and for outdoor uses when the fixture is designed for them.

How should I determine whether my LED board is compatible with the HBG-100-36AB?

Confirm that the LED board is a constant current load and that its total forward voltage is within the 21.6-36V CC output range. The number of LEDs depends on the forward voltage of each LED, so total forward voltage is the correct sizing method.

How does the HBG-100-36AB compare with other HBG-100 output ranges?

This 36V branch is rated 97.2W with 2.7A output current and a 21.6-36V CC range. The 24V branch is 96W with 4A and 14.4-24V, the 48V branch is 96W with 2A and 28.8-48V, and the 60V branch is 96W with 1.6A and 36-60V.
