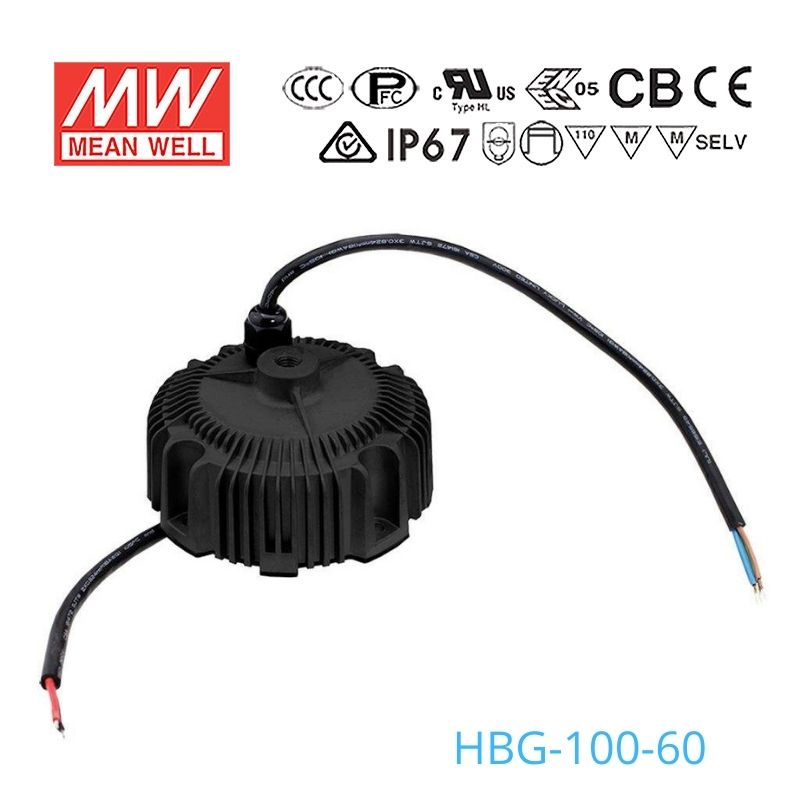

Mean Well HBG-100-60 Power Supply 100W 60V
Overview
HBG-100-60 is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%. Type Blank: Io fixed (IP67).
HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
Features
- Constant current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1.6A
- RATED POWER
- 96W
- CONSTANT CURRENT REGIONNote.2
- 36 ~ 60V
- OPEN CIRCUIT VOLTAGE(max.)
- 62V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SETUP TIMENote.4
- 2000ms / 115VAC 500ms / 230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.5
- 91.5%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting
- OVER VOLTAGE
- 65 ~ 75V Shut down o/p voltage re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ130mm *66.5mm (D * H)
- PACKING
- 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)
MODEL ENCODING
- Blank (this model)
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA
- DALI control technology; IP67
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the Mean Well HBG-100-60 for a high bay LED light?
Yes, this model is designed as a constant current LED driver for high and low bay light applications. It provides 96W with a 36-60V constant current output range, and the HBG-100 series is IP65 or IP67 approved, which fits demanding lighting environments.
Is the HBG-100-60 suitable for outdoor LED fixtures or wet locations?
It is suitable for fixtures that need a water-protected driver: the HBG-100 series is IP65 or IP67 approved and operates at a case temperature (Tcase) of -40°C to +85°C. That aligns with harsh-environment LED lighting use, as long as the fixture needs a constant current driver in the 36-60V range.
Can I use this driver for LED signage modules?
Only if the signage assembly is designed for a constant current driver rather than a constant voltage power supply. The HBG-100-60 outputs constant current across a 36-60V range with 96W, so compatibility depends on the module's required operating voltage and current.
Will the HBG-100-60 work with a small LED array?
Yes, it can work with a small LED array if the array is built for constant current operation within the 36-60V constant current range. The total number of LEDs depends on each LED's forward voltage, so the array must stay within that voltage window and within the 96W output rating.
Can this LED driver be used for LED downlights?
It can be used for LED downlights only when the fixture requires a constant current LED driver with a 36-60V output range. This is not a constant voltage unit, so it should not be matched to products that expect constant voltage input.
How do I know if my LED load is compatible with the HBG-100-60?
The LED load must be designed for constant current operation and fall within the 36-60V constant current voltage range. The number of LEDs cannot be determined from this driver alone because it depends on each LED's forward voltage, and the total load must remain within the 96W rating.
