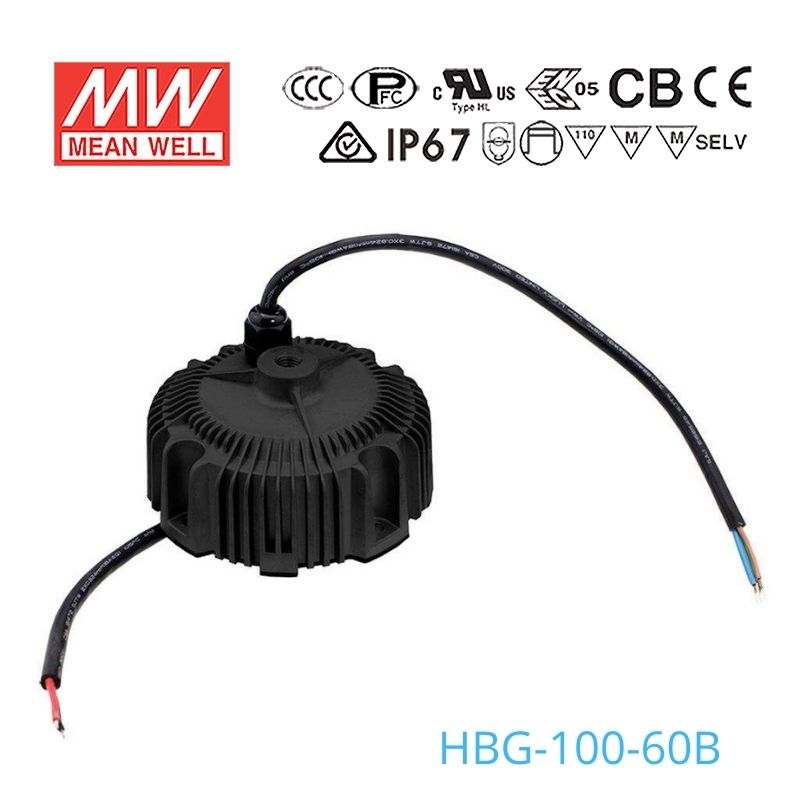

Mean Well HBG-100-60B Power Supply 100W 60V

Name: Mean Well HBG-100-60B Power Supply 100W 60V - Dimmable
Brand: Mean Well
SKU: HBG-100-60B
Price: 46.77 USD
Availability: InStock

Overview

HBG-100-60B is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100-60BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 1.6A
RATED POWER: 96W
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
OPEN CIRCUIT VOLTAGE(max.): 62V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.5: 91.5%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting
OVER VOLTAGE: 65 ~ 75V Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ130mm *66.5mm (D * H)
PACKING: 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-100-60B BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100-60B DIMMING OPERATION — DIMMING OPERATION

HBG-100-60B Illustration (page 5) — Illustration (page 5)

HBG-100-60B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HBG-100-60B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100-60B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100-60B MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-100-60B INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-100-60B datasheetHBG-100-spec.pdf · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-100-60B for a constant-current LED downlight?

Yes, if the LED downlight is designed for constant-current operation and its load stays within the 36-60V constant-current range of this driver. This model delivers up to 96W and is dimmable, so it fits downlight assemblies that need a constant-current LED driver rather than a constant-voltage power supply.

Can this driver power LED signage modules?

It can only be used with LED signage modules that are built for constant-current input and fall within the 36-60V constant-current range. Many signage modules use constant-voltage power instead, so this HBG-100-60B is not the right choice for constant-voltage modules.

Is the HBG-100-60B suitable for a small LED array?

Yes, it can be a fit for a small LED array if the array is a constant-current load within the 36-60V operating range and the total power stays within 96W. Its circular shape is also aligned with round fixture designs and 100W-class applications.

Can I use this LED driver for an outdoor LED downlight?

Yes, this model is built for demanding environments: the HBG-100 series is IP65 or IP67 approved and it has an operating case temperature (Tcase) range of -40°C to +85°C. It is appropriate for outdoor LED downlights only when the LED load is a constant-current design within the 36-60V range and 96W limit.

How do I know if my LED load is compatible with the HBG-100-60B?

Your LED load needs to be a constant-current load that operates within the 36-60V constant-current voltage range of this driver. The number of LEDs depends on each LED's forward voltage, so compatibility should be checked by total forward voltage rather than by a fixed LED count.

Can the HBG-100-60B be used in wet or high-temperature locations?

The HBG-100 series is IP65 or IP67 approved and this driver operates at a case temperature (Tcase) of -40°C to +85°C, so it is designed for wet and demanding environments. Its typical life expectancy exceeds 50,000 hours when the Tcase point is about 75°C or less.

What is the difference between the HBG-100-24B, HBG-100-36B, HBG-100-48B, and HBG-100-60B?

The main differences are output range and current. HBG-100-24B is 96W with a 14.4-24V constant-current range and 4A output, HBG-100-36B is 97.2W with a 21.6-36V range and 2.7A output, HBG-100-48B is 96W with a 28.8-48V range and 2A output, and HBG-100-60B is 96W with a 36-60V range and 1.6A output.
