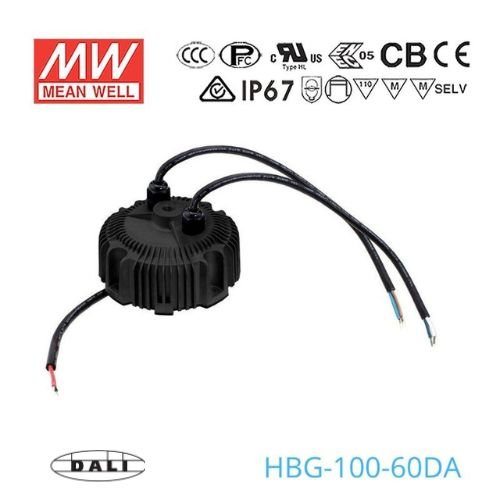

Mean Well HBG-100-60DA Power Supply 100W 60V - DALI
Overview
HBG-100-60DA is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%. Type DA: DALI control technology (IP67).
HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Function options: DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1.6A
- RATED POWER
- 96W
- CONSTANT CURRENT REGIONNote.2
- 36 ~ 60V
- OPEN CIRCUIT VOLTAGE(max.)
- 62V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SETUP TIMENote.4
- 2000ms / 115VAC 500ms / 230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.5
- 91.5%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting
- OVER VOLTAGE
- 65 ~ 75V Shut down o/p voltage re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP67 approved
- DALI STANDARDS
- Compliance to IEC62386-101, 102, 207 for DA-Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ130mm *66.5mm (D * H)
- PACKING
- 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)
MODEL ENCODING
- Blank
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA (this model)
- DALI control technology; IP67
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the Mean Well HBG-100-60DA for a constant-current LED array in a high or low bay fixture?
Yes, this LED driver is intended for high and low bay lighting and provides constant current output across a 36-60V range. It is a fit when the LED array is a constant-current load that stays within the 96W rating, and the DA version is appropriate when DALI control is required.
Can I use this driver for LED downlights?
It can work for LED downlights only when the fixture uses a constant current driver and the LED load operates within the 36-60V constant current range. It is not the right choice for downlights that require a constant voltage power supply instead of constant current.
Can I use the HBG-100-60DA for LED signage modules?
Only if the signage assembly is designed as a constant current load within the 36-60V output range and within the 96W power rating. Many signage modules use constant voltage power supplies, so this model is not a match for constant voltage signage products.
Is this LED driver suitable for a small LED array?
Yes, if the small LED array is a constant current load and its operating voltage falls within 36-60V. The number of LEDs depends on each LED's forward voltage, so compatibility should be checked against the full array voltage rather than a fixed LED count.
How do I know if my LED load is compatible with the HBG-100-60DA?
The LED load must be designed for constant current operation, and its operating range must fit within the driver's 36-60V constant current output range. The number of LEDs that can be driven depends on the forward voltage of each LED, so there is no single fixed LED count for this model.
Can the HBG-100-60DA be used outdoors or in harsh environments?
The HBG-100 series is IP65 or IP67 approved and this model operates at a case temperature (Tcase) of -40°C to +85°C, which makes it suitable for demanding indoor or outdoor environments when the rest of the fixture is designed for those conditions. Its typical life expectancy exceeds 50,000 hours when the Tcase point is about 75°C or less.
What is the difference between the HBG-100-60DA and other HBG-100 60V models?
Within the HBG-100 60V group, the HBG-100-60, HBG-100-60A, HBG-100-60AB, HBG-100-60B, and HBG-100-60DA all share a 36-60V constant current range, 1.6A rated current and 96W output. The HBG-100-60DA is the DALI version in that sibling set, while the other suffixes are fixed-current (Blank), potentiometer-adjustable (A), 3-in-1 dimming (B) or both (AB) options.
