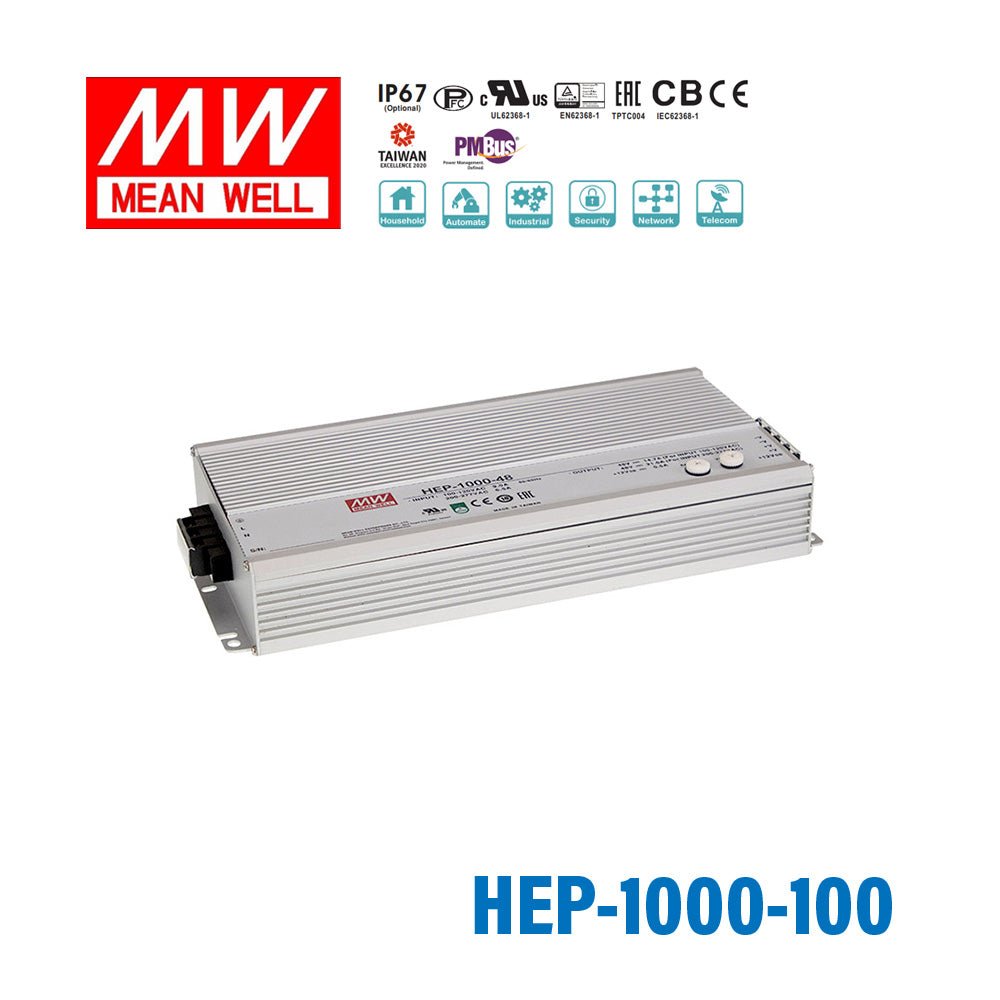

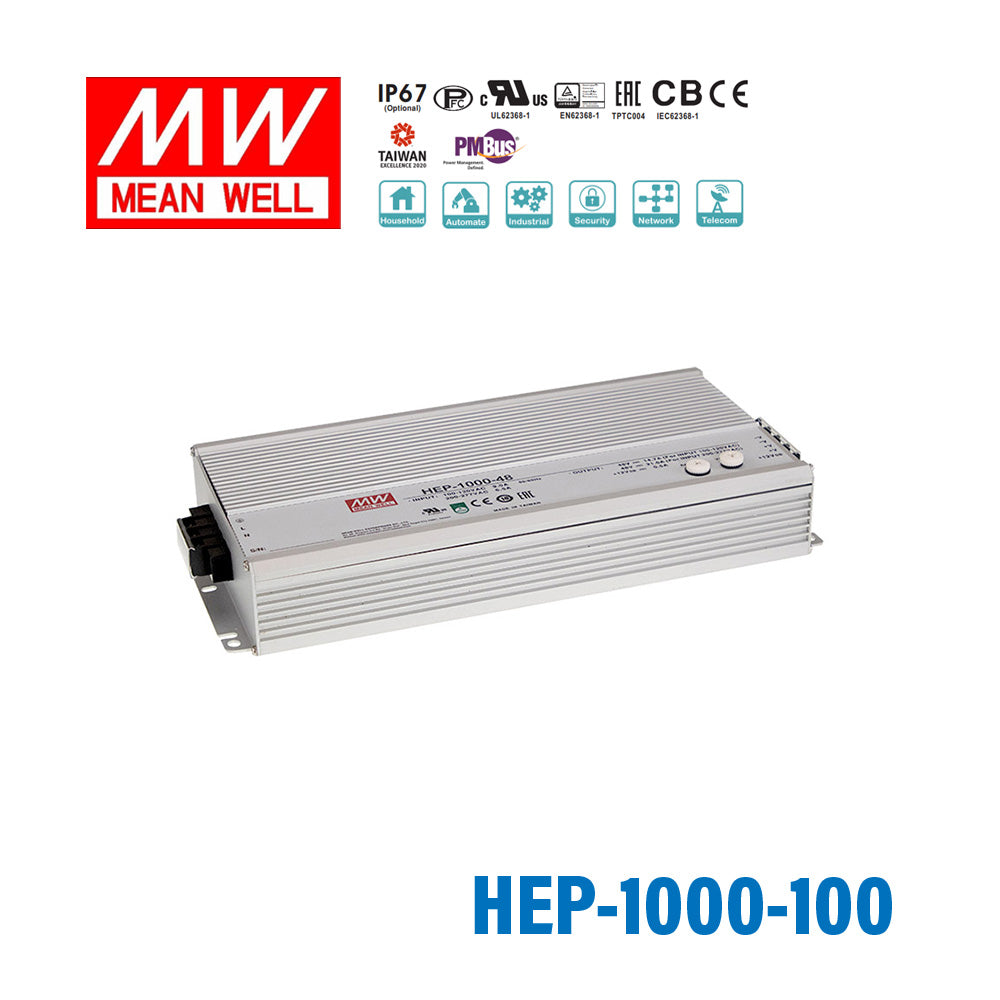

Mean Well HEP-1000-100 Power Supply 1000W 100V

fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
$438.73 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 96%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
IP67 design for indoor or outdoor installation
Cooling by free air convection
DC OK active signal and 12V Auxiliary power available
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Operating altitude up to 5000 meters
6 years warranty



General Specification

AC input voltage range 90~305VAC ; 250~431VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 50%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 1800ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input 3+7P / 11mm pitch terminal block with cover
Connection Output W-Type:SJTW 16AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)+ AWM 24AWGx6C(35cm)
Dimension (LxWxH) (mm) 310x 144x 48.5

Specifications

  • Brand
    Mean Well
  • Series
    HEP Series
  • Power Rating
    1000 Watt
  • Output Voltage
    100 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    6 Year
  • Length
    12.2 in
  • Width
    5.67 in
  • Height
    1.91 in
  • Weight
    8.82 lb
