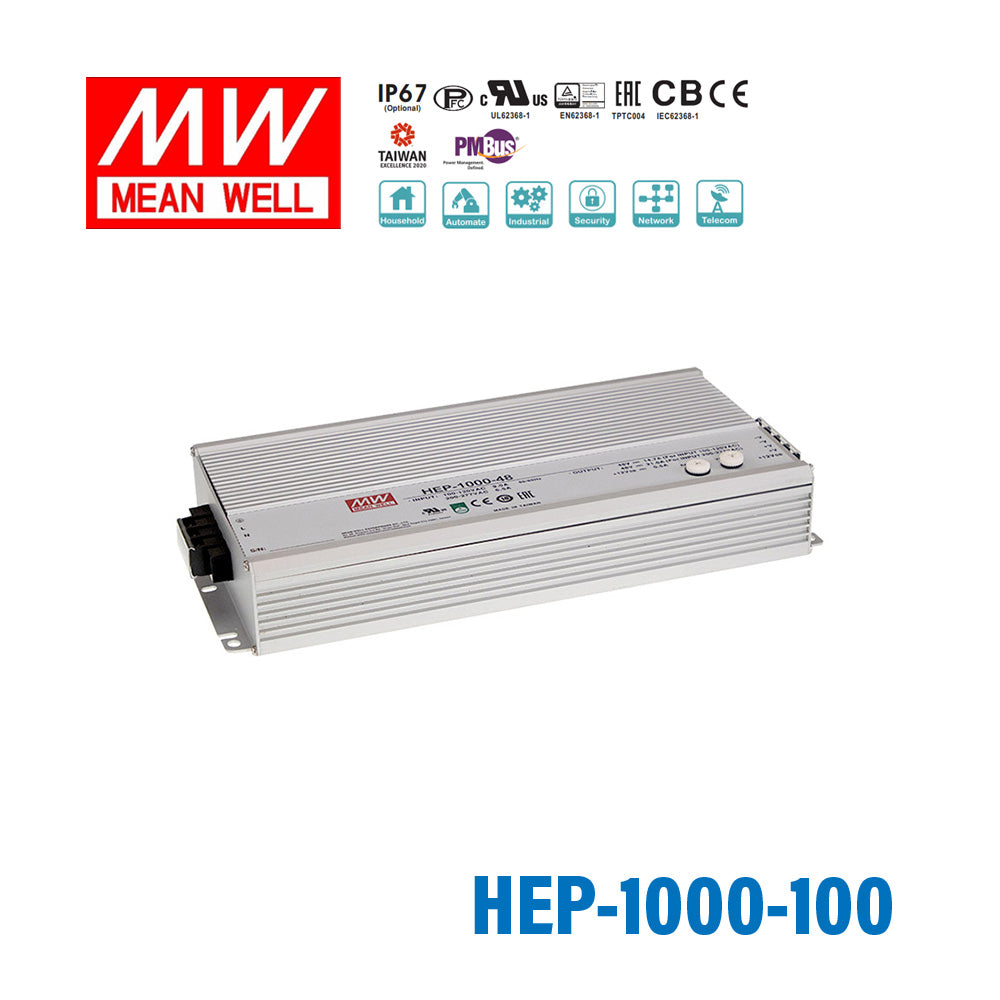

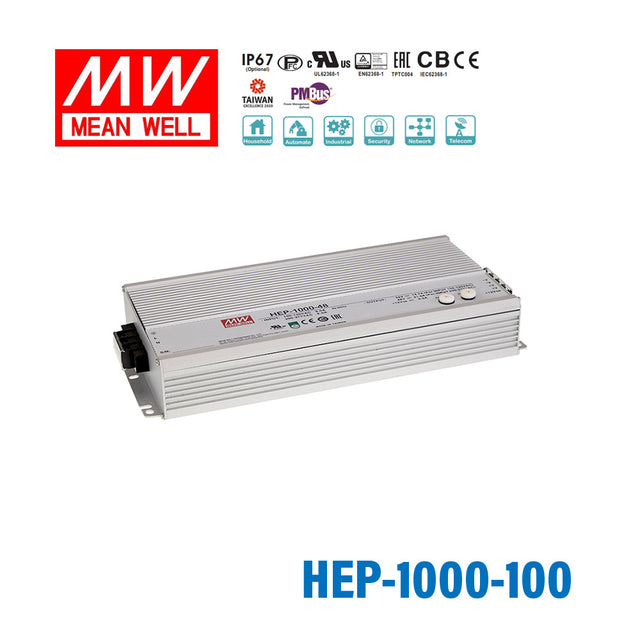

Mean Well HEP-1000-100 Power Supply 1000W 100V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-1000-100 Power Supply 1000W 100V
Description
Description
The HEP-1000 is a 1000W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating1000 Watt
-
Output Voltage100 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length12.2 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.82 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HEP-1000-100 for a 100V DC industrial load?
Yes, if the equipment is designed for constant-voltage 100V DC input. This model delivers 1000W total output at 10A, so it fits high-power industrial or embedded systems that are actually specified for 100V DC.
Is the HEP-1000-100 suitable for centralized 100V automation or control equipment?
It can support centralized 100V constant-voltage loads up to 10A and 1000W. The fanless design and rugged metal case are useful in industrial settings where reliability and lower maintenance are priorities.
Would this work for harsh-environment 100V DC equipment in infrastructure or industrial sites?
This unit is built for harsh conditions, with IP67 waterproof protection, 10G vibration tolerance, and an operating range of -40°C to +70°C. Those specs make it suitable for industrial or infrastructure equipment that needs a 100V DC source in exposed or demanding environments.
Can the HEP-1000-100 be used outdoors?
Yes, the IP67 waterproof rating makes it suitable for outdoor locations where dust and water exposure are expected. It is also rated for -40°C to +70°C operation, which supports use across very cold and very hot environments.
What is the difference between HEP-1000-24, HEP-1000-48, and HEP-1000-100?
The HEP-1000 subgroup listed here includes 24V at 42A and 1008W, 48V at 21A and 1008W, and 100V at 10A and 1000W. The HEP-1000-100 has the highest output voltage of the three, while the 24V model has the highest output current.
Other HEP-1000 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-1000-24 Power Supply 1008W 24V | 1008W | 24V | 42A | IP67 | $455.58 | View |
