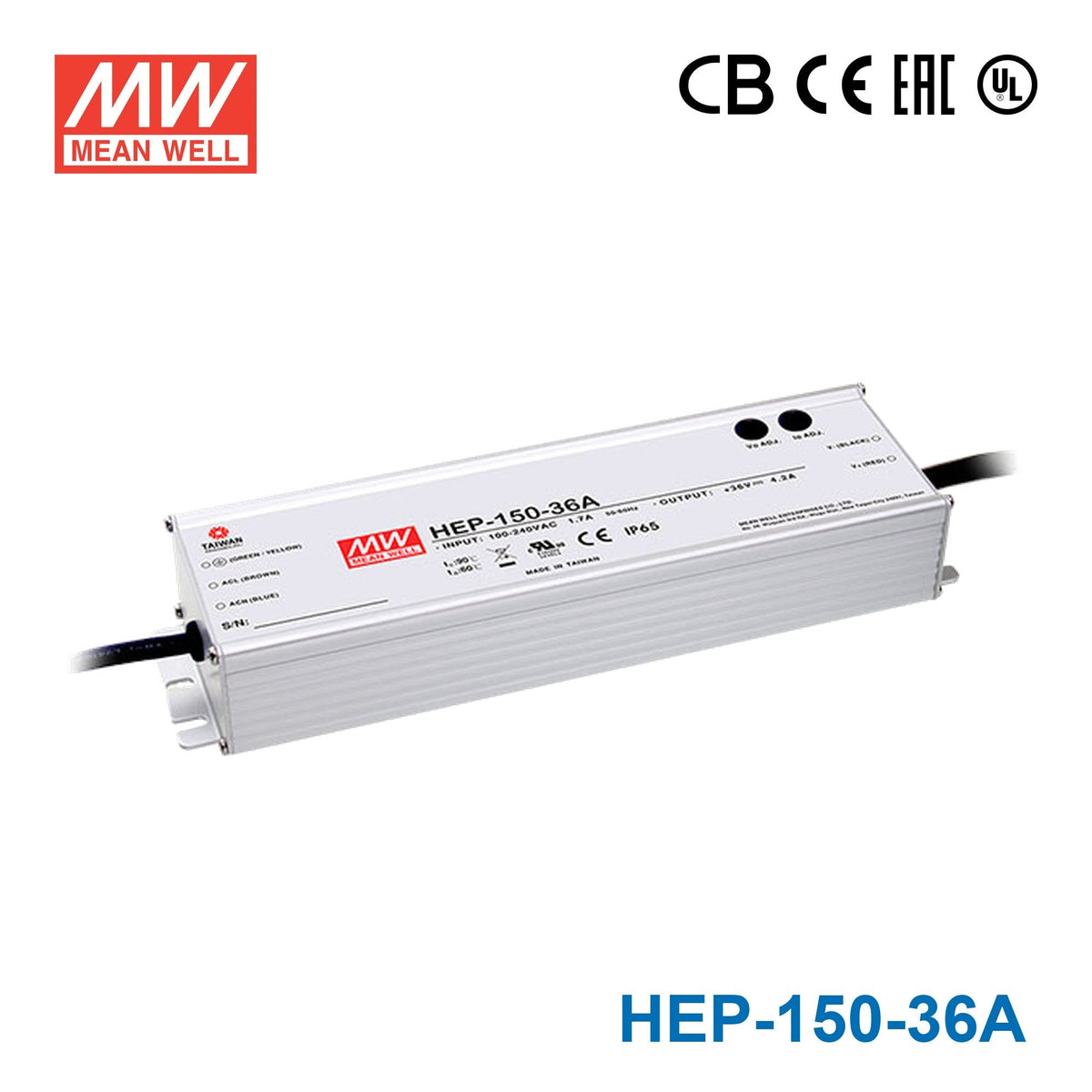

Mean Well HEP-150-36A Power Supply 151.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-150-36A Power Supply 151.2W 36V
The HEP-150 is a 150W Mean Well DIN rail power converter with a 228mm profile (input range: 90~305VAC, operating temperature: -60~+80°C).
Key Features
- ✓ 228mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -60~+80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.6,9 UL62368-1, IECIEN62368-1, IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating151.2 Watt
-
Output Voltage36 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HEP-150-36A for a 36V machine-control or panel-power application?
Yes, if the load is designed for 36V DC constant voltage. The unit provides up to 4.2A and 151.2W, so the total connected demand needs to remain within those figures.
Is the HEP-150-36A a good match for 36V industrial monitoring or communications hardware?
It can support monitoring or communications equipment that requires 36V constant-voltage input and draws no more than 4.2A. The wide 90-305VAC input also helps in facilities with different AC supply conditions.
Can this model be used for 36V automation peripherals in vibration-prone equipment?
It is intended for harsh environments and is specified to withstand 10G vibration. As long as the peripherals need 36V constant voltage and stay under 151.2W, it is a suitable choice.
Is the HEP-150-36A suitable for outdoor use?
This version is rated IP65 Water-Resistant, so it is suited to indoor or outdoor locations where protection against dust and water jets is needed. Its operating temperature range is -55°C to +70°C, but it does not carry the IP68 rating of the non-A HEP-150-36.
What are the differences between the HEP-150-36A and the other HEP-150 voltage options?
In the HEP-150 family, HEP-150-12 and HEP-150-12A are 150W at 12V and 12.5A, HEP-150-15 and HEP-150-15A are 150W at 15V and 10A, HEP-150-24 and HEP-150-24A are 151.2W at 24V and 6.3A, HEP-150-36 and HEP-150-36A are 151.2W at 36V and 4.2A, HEP-150-48 and HEP-150-48A are 153.6W at 48V and 3.2A, and HEP-150-54 and HEP-150-54A are 151.2W at 54V and 2.8A. The HEP-150-36A has the same 36V, 4.2A, and 151.2W rating as HEP-150-36.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-150-12A Power Supply 150W 12V | 150W | 12V | 12.5A | IP65 | $87.40 | View |
| Mean Well HEP-150-24A Power Supply 151.2W 24V | 151.2W | 24V | 6.3A | IP65 | $87.40 | View |
