Mean Well

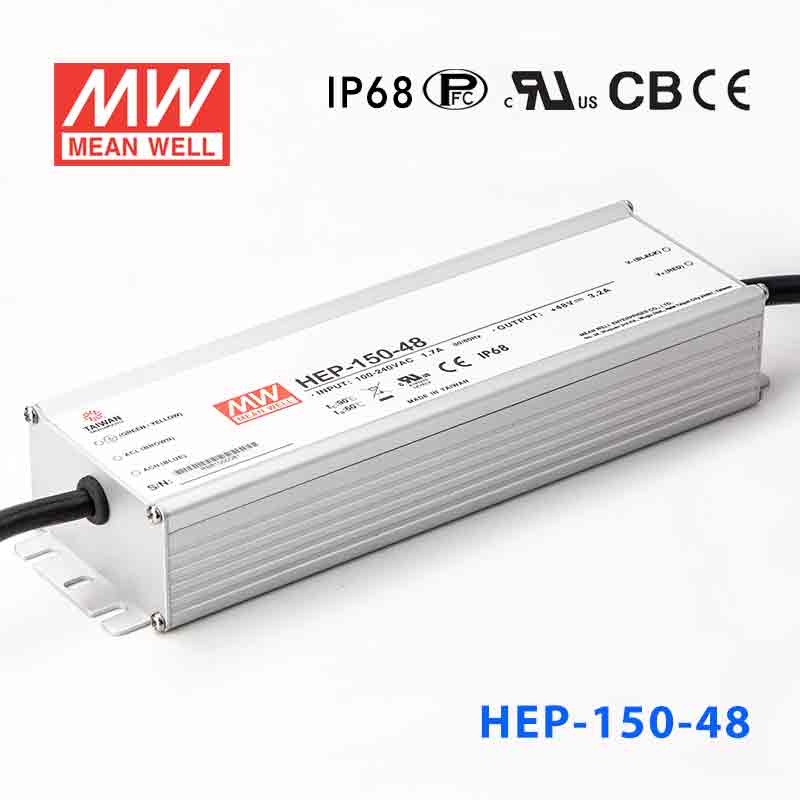

Mean Well HEP-150-48A Power Supply 153.6W 48V

Name: Mean Well HEP-150-48A Power Supply 153.6W 48V
Brand: Mean Well
SKU: HEP-150-48A
Price: 97.11 USD
Availability: InStock

1 units in stock

$97.11 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	-10%~+10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	105%~125% constant current limiting, auto-recovery
Over voltage protection	105%~135% rated output voltage
Setup, rise, hold up time	500ms, 50ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature	-55~+70ºC (refer to output derating curve)
Safety standards	UL62368-1, IEC62368-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input	SJTW 18AWGx3C(30cm)
Connection Output	SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm)	228x 68 x 38.8
