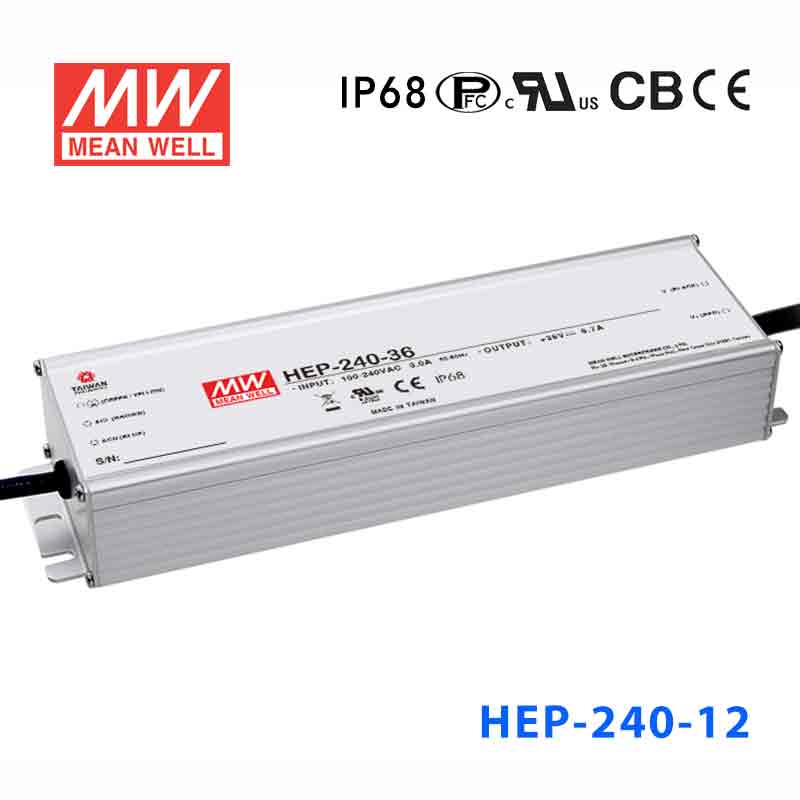

Mean Well HEP-240-12 Power Supply 192W 12V
fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
$113.11 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Description
Description
Features
Universal AC input (up to 305VAC) / Full range |
High efficiency up to 93% |
Built-in active PFC function |
Protections: Short circuit / Over current / Over voltage / Over temperature |
IP65 design, optional IP68 rated model available |
Cooling by free air convection |
Meet 6KV surge immunity level |
Aluminum case and filling with heat-conducted glue |
Withstand 10G vibration test |
Operating altitude up to 5000 meters |
6 years warranty |
General Specification
AC input voltage range | 85~264VAC ; 120~370VDC |
AC inrush current (max.) | Cold start, 75A at 230VAC |
DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
Current adjustment range | 60%~100% |
Over current protection | 105%~125% constant current limiting, auto-recovery |
Over voltage protection | 105%~135% rated output voltage |
Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
Withstand voltage | I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC |
Working temperature | -55~+70ºC (refer to output derating curve) |
Safety standards | UL62368-1, IEC62368-1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EAC TP TC 020 |
Connection Input | SJTW 18AWGx3C(30cm) |
Connection Output | SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) |
Dimension (LxWxH) (mm) | 244.2x 68 x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
