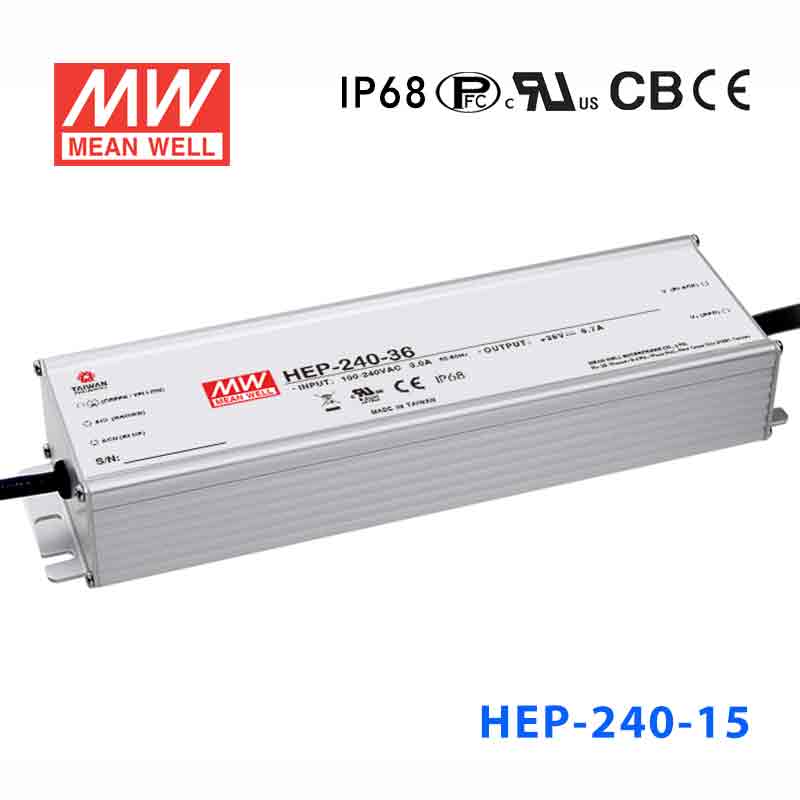

Mean Well HEP-240-15 Power Supply 225W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-240-15 Power Supply 225W 15V
The HEP-240 is a 240W Mean Well power converter (input range: 90~305VAC, operating temperature: -55~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -55~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 IEC/EN62368-1, , IP65 (or IP68 for HEP-240 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating225 Watt
-
Output Voltage15 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HEP-240-15 for 15V industrial control equipment?
Yes, this model is a constant-voltage 15V supply rated for 15A and 225W, which fits 15V industrial control loads that need a fixed 15V DC output. Its wide 90-305VAC input also helps when the AC source varies across different facilities.
Is the HEP-240-15 suitable for embedded systems or 15V electronics cabinets?
It can be used for embedded or electronics-cabinet applications that are designed for a 15V constant-voltage source and stay within 15A and 225W. The fanless design is also useful where moving parts and airflow management are undesirable.
Can this 15V power supply run outdoor automation or equipment in wet locations?
The HEP-240-15 has an IP68 rating, so it is intended for harsh environments where high dust and water protection are required. Its operating range of -55°C to +70°C also makes it suitable for demanding outdoor conditions when the connected load needs 15V DC.
Would the HEP-240-15 work for 15V signage, sensors, or other low-voltage field equipment?
It is appropriate for 15V field equipment when the system requires constant voltage and the total load does not exceed 15A or 225W. The rugged metal case, 10G vibration tolerance, and IP68 protection make it a better fit for tougher industrial or outdoor use than a basic indoor supply.
How does the HEP-240-15 compare with other HEP-240 models?
Within the HEP-240 group, the 12V versions are HEP-240-12 and HEP-240-12A at 192W and 16A, the 15V versions are HEP-240-15 and HEP-240-15A at 225W and 15A, the 24V versions are HEP-240-24 and HEP-240-24A at 240W and 10A, the 36V versions are HEP-240-36 and HEP-240-36A at 241.2W and 6.7A, the 48V versions are HEP-240-48 and HEP-240-48A at 240W and 5A, and the 54V versions are HEP-240-54 and HEP-240-54A at 240.3W and 4.45A. This HEP-240-15 is the IP68 15V, 15A version, while the A-suffix counterpart is the IP65 variant.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-240 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-240-48A Power Supply 240W 48V | 240W | 48V | 5A | IP65 | $110.13 | View |
| Mean Well HEP-240-54A Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP65 | $110.13 | View |
| Mean Well HEP-240-54 Power Supply 240.3W 54V | 240.3W | 54V | 4.45A | IP68 | $113.11 | View |
| Mean Well HEP-240-48 Power Supply 240W 48V | 240W | 48V | 5A | IP68 | $113.11 | View |
