Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

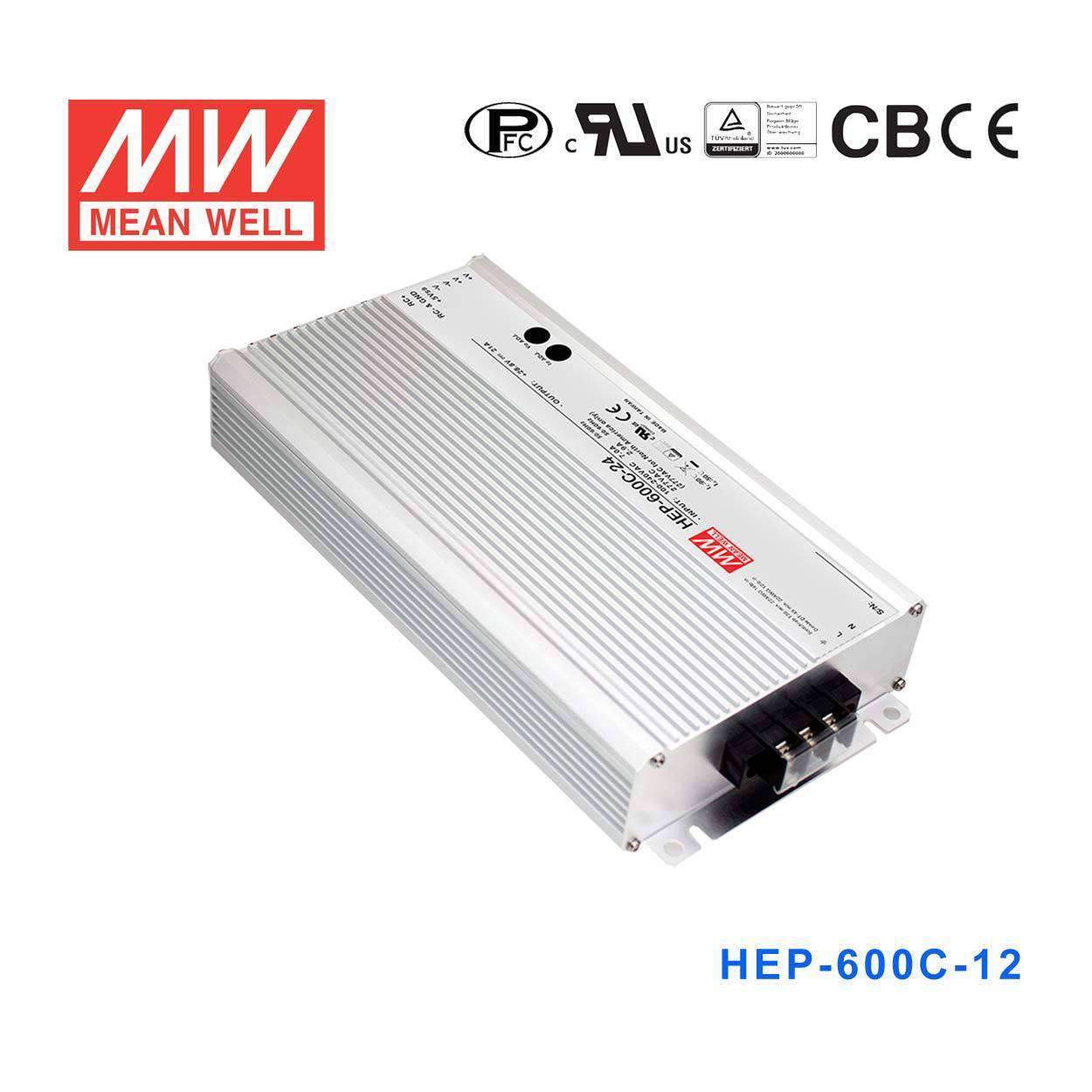

Mean Well HEP-600C-12 Battery Chargers 600W 14.4V 35A - 3 Stage W/PFC

suitable for lead-acid and Li-ion batteries, high efficiency up to 95.5%, operating altitude up to 5000 meters, withstand 10G vibration test
$239.30 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 96%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
No load power consumption<0.5W at remote OFF
Cooling by free air convection
Output current adjustable
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
LED indicator for power on
6 years warranty



General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 50%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL62368-1, TUV BS EN6236-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input 3P / 11mm pitch terminal block with cover
Connection Output 7P / 11mm pitch terminal block with cover
Dimension (LxWxH) (mm) 280x 144x 48.5

Specifications

  • Brand
    Mean Well
  • Series
    HEP-C Series
  • Power Rating
    600 Watt
  • Output Voltage
    14.4 Volt
  • Rated Current
    35 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    6 Year
  • Length
    11.02 in
  • Width
    5.67 in
  • Height
    1.91 in
  • Weight
    8.6 lb

File Downloads

::specification::
