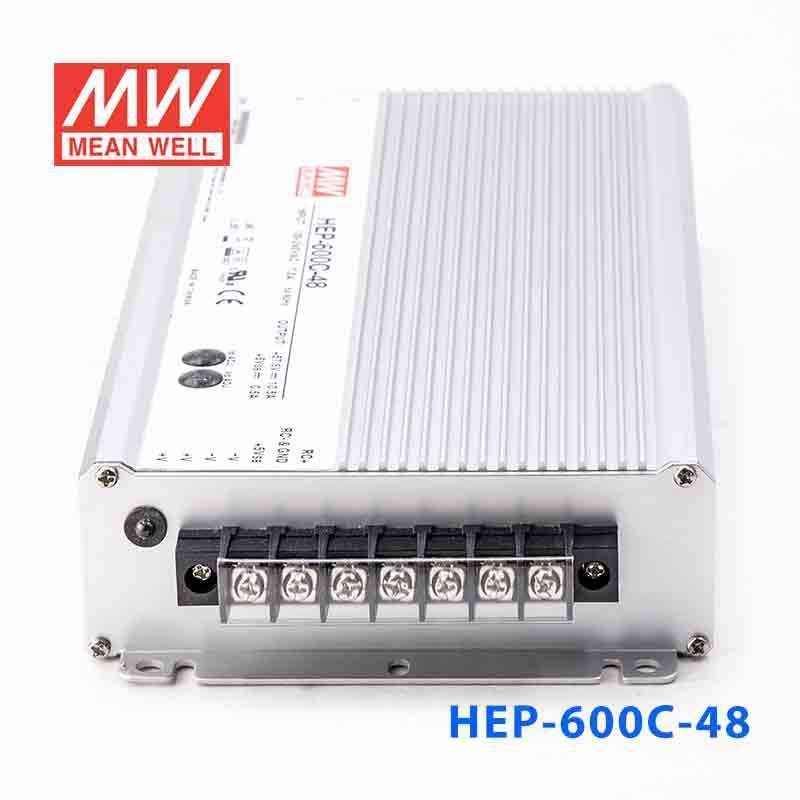

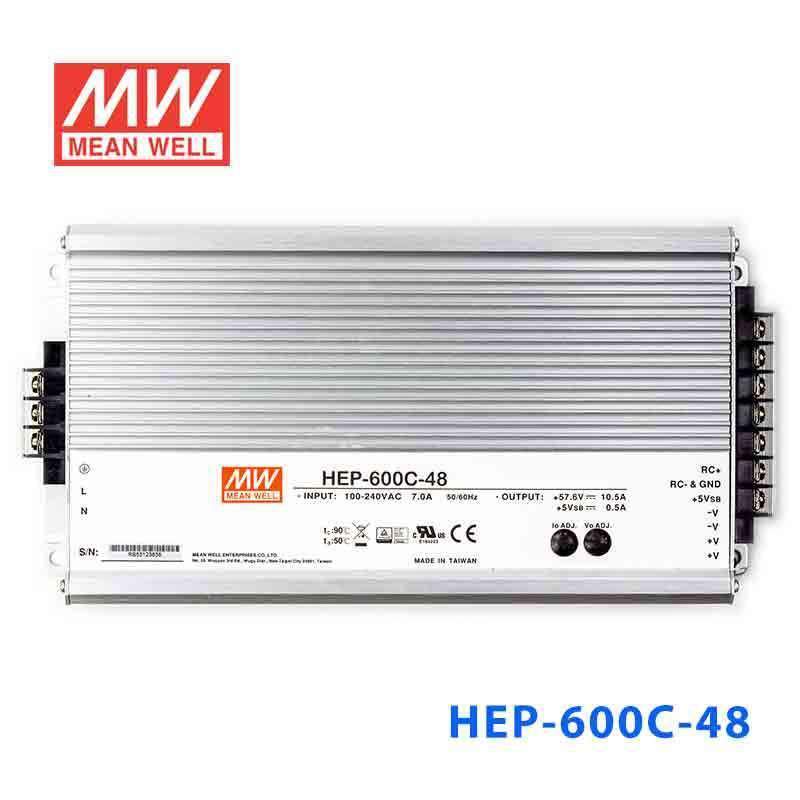

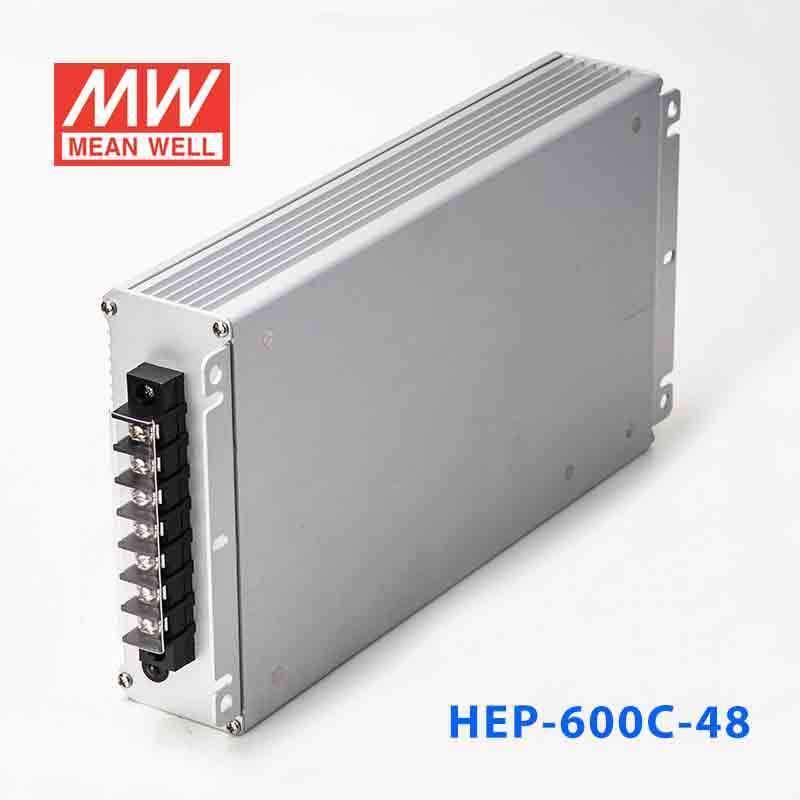

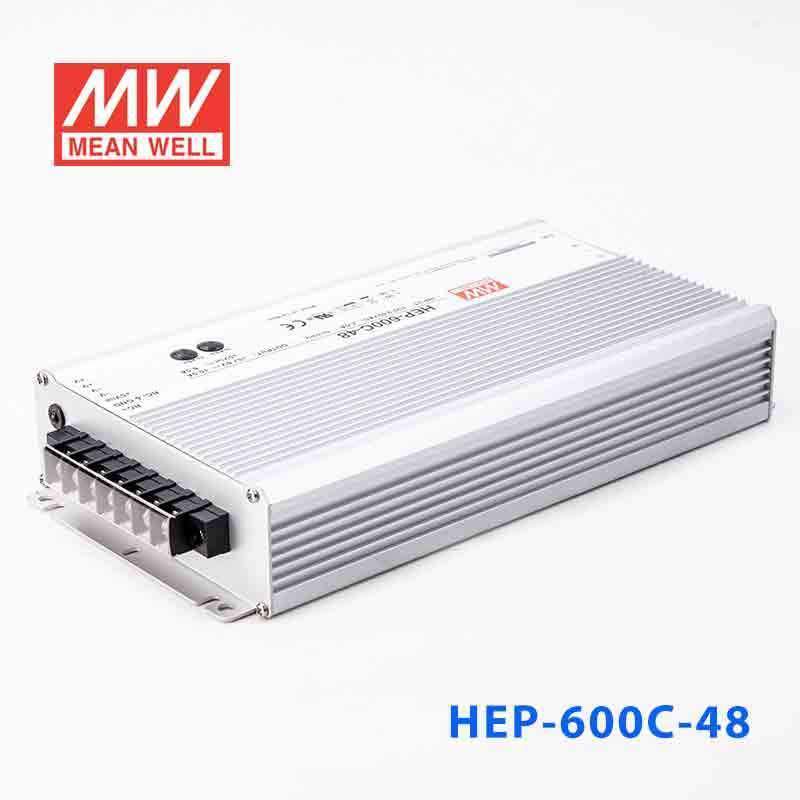

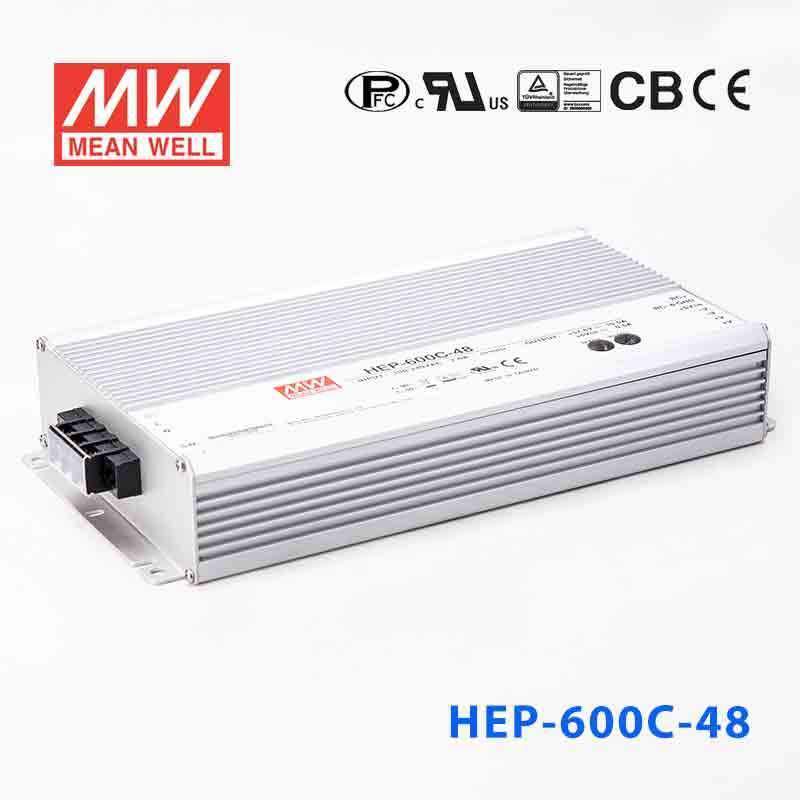

Mean Well HEP-600C-48 Battery Chargers 600W 57.6V 10.5A - 3 Stage W/PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600C-48 Battery Chargers 600W 57.6V 10.5A - 3 Stage W...
Description
Description
The HEP-600C is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP-C Series
-
Power Rating600 Watt
-
Output Voltage57.6 Volt
-
Rated Current10.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output ratings of the Mean Well HEP-600C-48?
The HEP-600C-48 is a 600W battery charger with a 57.6V output and 10.5A rated current. It is designed for applications that need a higher-power 3-stage charging solution with active PFC.
What input range does the HEP-600C-48 support?
This model accepts a wide input range of 85 to 264VAC and 120 to 370VDC. It also supports universal AC input up to 305VAC, which helps it fit a broad range of industrial power environments.
Is the HEP-600C-48 suitable for demanding industrial environments?
Yes. The unit is rated for operation from -40°C to +70°C, uses an aluminum case with heat-conducted filling, and is tested to withstand 10G vibration. Those characteristics make it a strong option for demanding industrial and commercial applications.
Does this charger use active PFC and high-efficiency design?
Yes, the HEP-600C-48 includes built-in active power factor correction and offers efficiency up to 96%. That combination helps reduce wasted energy and supports more efficient operation in higher-power systems.
What protection features are included in the HEP-600C-48?
This model includes protection for short circuit, over current, over voltage, and over temperature. The over current protection operates with constant current limiting and auto-recovery.
What kinds of applications is the HEP-600C-48 commonly used for?
The HEP-600C-48 is intended for industrial battery charging applications that need 57.6V output at up to 10.5A. Buyers typically consider it for higher-power systems where wide input range, passive cooling, and rugged environmental performance matter.
How does the HEP-600C-48 differ from lower-power battery chargers?
Compared with lower-power chargers, this model provides 600W output capacity with 57.6V at 10.5A, making it better suited to larger or more demanding battery charging loads. It also stands out with up to 96% efficiency, active PFC, wide operating temperature range, and a 6-year warranty.
Other HEP-600C Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-600C-24 Battery Chargers 600W 28.8V 21A - 3 Stage W/PFC | 600 Watt | Lead Acid Battery | 24V | — | $239.30 | View |
| Mean Well HEP-600C-12 Battery Chargers 600W 14.4V 35A - 3 Stage W/PFC | 600 Watt | Lead Acid Battery | 12V | — | $239.30 | View |
