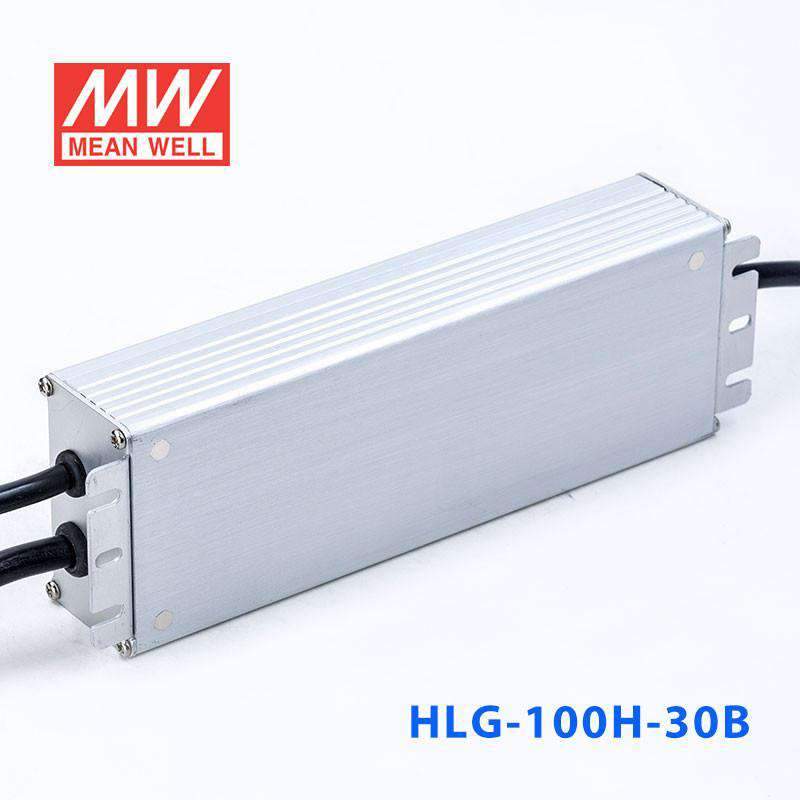

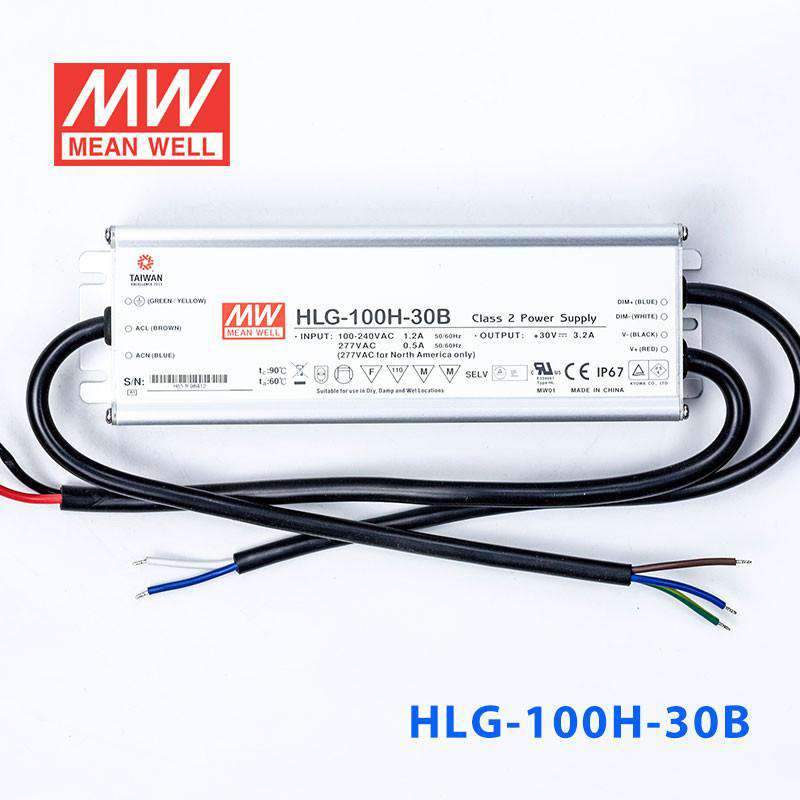

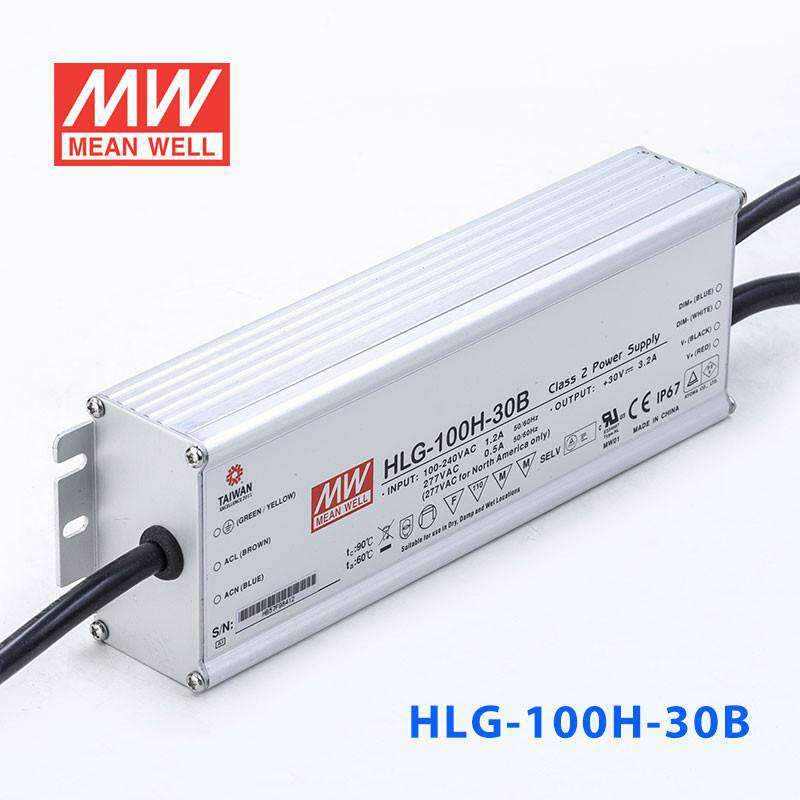

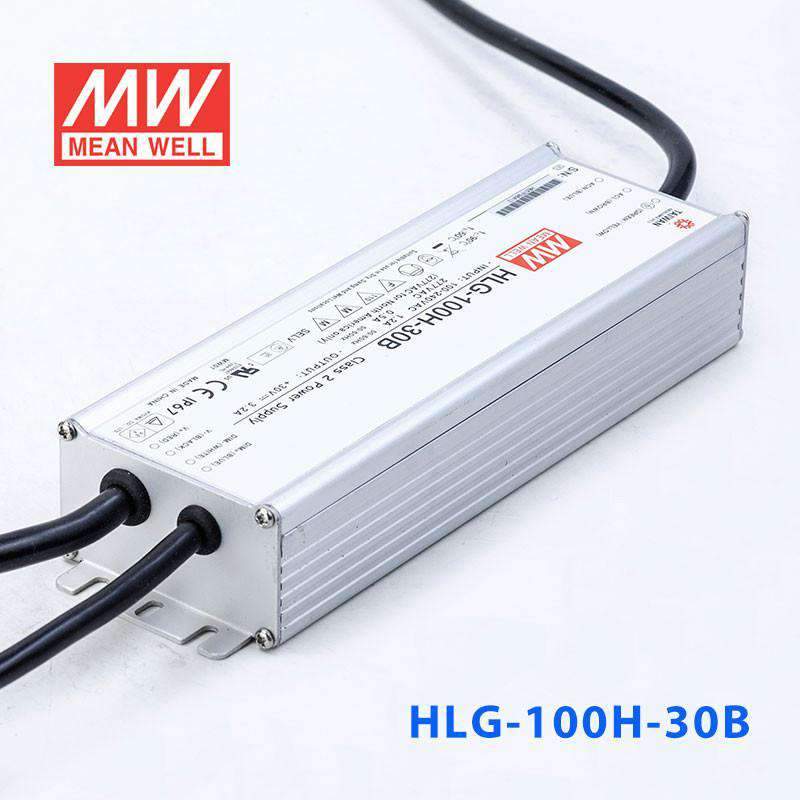

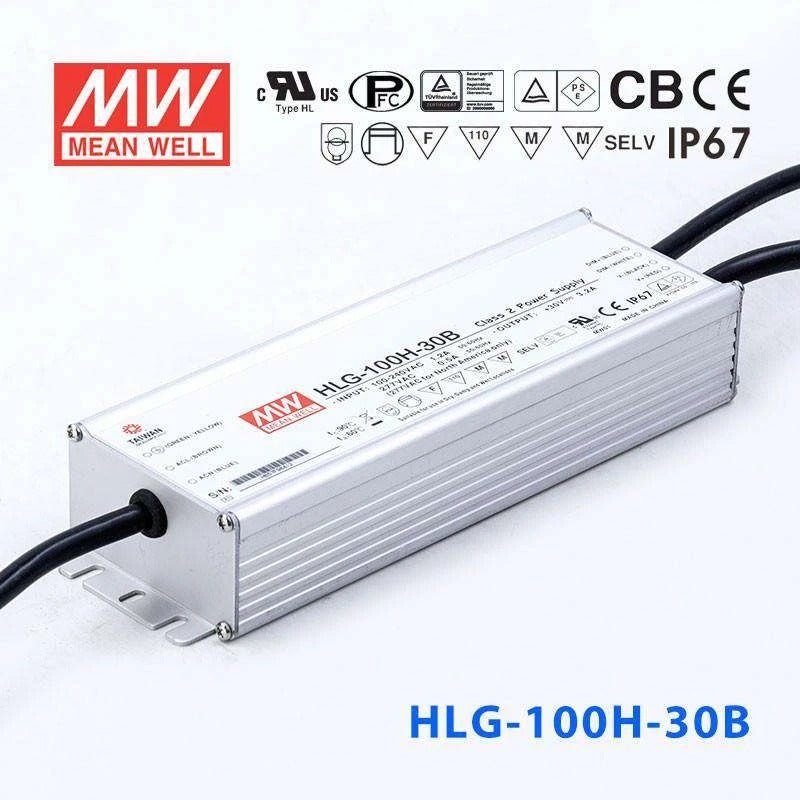

Mean Well HLG-100H-30B Power Supply 100W 30V - Dimmable
The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage30 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-100H-30B for outdoor dimmable 30V LED landscape lighting?
Yes. The HLG-100H-30B delivers 30V at up to 3.2A (100W) with dimming capability, and its IP67 waterproof rating makes it ideal for fully exposed outdoor landscape lighting. It can be buried in underground junction boxes or mounted in unprotected locations.
Is the HLG-100H-30B a good choice for dimmable 30V LED flood lights?
It works well for 30V LED flood lights up to 100W total. The dimming input allows you to reduce output for curfew hours or ambient control, and the IP67 waterproof rating means the driver can be mounted near the fixtures in exposed outdoor conditions.
Can I use the HLG-100H-30B to power dimmable 30V LED signage in a car wash environment?
The IP67 waterproof rating makes the HLG-100H-30B one of the better choices for wet environments like car washes. It can withstand temporary immersion and direct water exposure. Combined with its dimming input and 100W at 30V, it can drive LED signage in these harsh conditions.
What is the maximum 30V LED strip length the HLG-100H-30B can power?
The HLG-100H-30B provides 100W at 30V. For a strip rated at 12W per meter, the maximum length would be approximately 8.3 meters (100W / 12W per meter). Always verify your strip's rated power per meter and ensure total consumption stays at or below 100W.
How does the HLG-100H-30B handle extreme cold weather installations?
The HLG-100H-30B is rated for operation from -40°C to +80°C, so it handles extreme cold well. The IP67-sealed aluminium housing prevents moisture ingress from freeze-thaw cycles, and the wide 90-305VAC input tolerance accommodates voltage fluctuations common in remote cold-climate locations.
