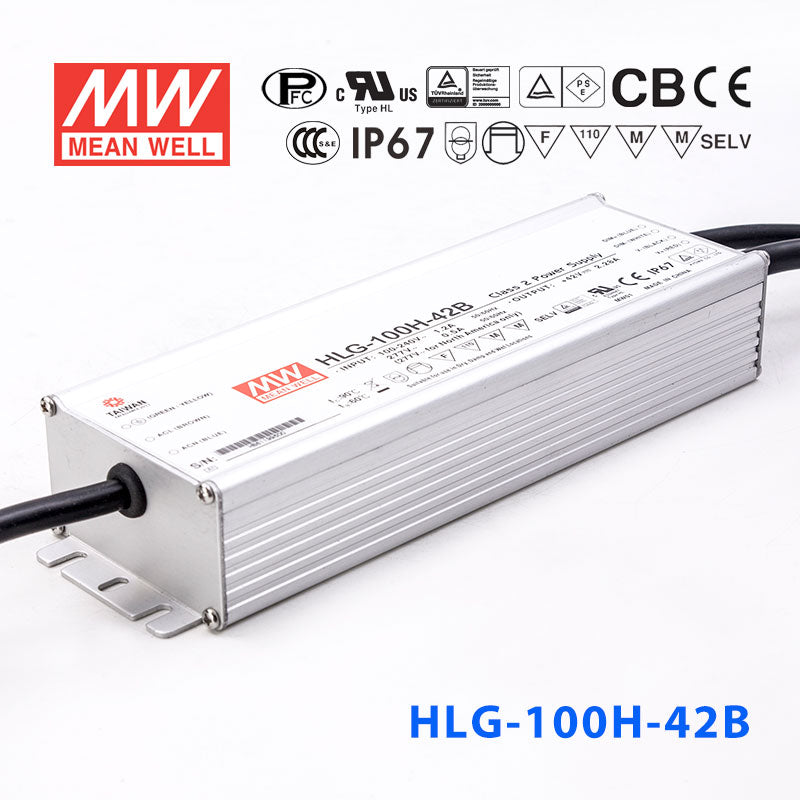

Mean Well HLG-100H-42AB Power Supply 100W 42V - Adjustable and Dimmable 2.28A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-100H-42AB Power Supply 100W 42V - Adjustable and Dimm...
Overview
HLG-100H-42AB is the 42V output model of this series: rated current 2.28A, rated power 95.76W, typical efficiency 93%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).
HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 42V
- CONSTANT CURRENT REGIONNote.4
- 21 ~ 42V
- RATED CURRENT
- 2.28A
- RATED POWER
- 95.76W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for AB-Type only (via built-in potentiometer) 38 ~ 46V
- CURRENT ADJ. RANGE
- Adjustable for AB-Type only (via built-in potentiometer) 1.4 ~ 2.28A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 1200ms,50ms/115VAC 500ms,50ms/230VAC
- HOLD UP TIME (Typ.)
- 16ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 47 ~ 53V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.9
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP65, J61347-1, J61347-2-13, KC61347-1,KC61347-2-13,EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)
OTHERS
- MTBF
- 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 220*68*38.8mm (L*W*H)
- PACKING
- 1.12Kg; 12pcs/14.4Kg/0.8CUFT
MODEL ENCODING
- Blank
- Io and Vo fixed; IP67
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
- AB (this model)
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes15
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
- 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. For A/AB type need to consider build in using to comply with Type HL application.
- 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the HLG-100H-42AB with a 0-10V dimmer for 42V LED retail display lighting?
The HLG-100H-42AB accepts 1-10VDC, 10V PWM (100Hz-3kHz) or resistance dimming between DIM+ and DIM-, so it works with controllers that provide a 1-10V signal. For turning the fixture fully off (0%), the sheet recommends a switch and relay on the AC input. It handles up to 95.76W total load.
Is the HLG-100H-42AB a good choice for dimmable 42V LED architectural accent lighting?
It is well suited for architectural accent applications where you need both fine output tuning and scene-based dimming. The built-in potentiometer sets the baseline output, while the dimming input enables dynamic brightness control. Total load must stay at or below 95.76W at 42V.
Can I power a dimmable 42V LED light box or backlit sign with the HLG-100H-42AB?
Yes, provided the light box draws 95.76W or less. The HLG-100H-42AB delivers 42V at up to 2.28A with adjustable output and dimming capability. The dimming input lets you reduce brightness for ambient settings or to save energy during off-peak hours.
How many meters of 42V LED strip can the HLG-100H-42AB drive while dimming?
The maximum strip length is determined by the driver's 95.76W rated power, not the dimming level. Divide 95.76W by your strip's rated wattage per meter. A strip rated at 10W/m would allow up to about 9.5 meters (95.76W / 10W per meter). Always check your strip's rated power per meter.
Can I install the HLG-100H-42AB in an outdoor sign enclosure?
The HLG-100H series' IP65/IP67 metal-housing design suits enclosed or semi-enclosed outdoor sign cabinets. For fully exposed installations where submersion or heavy water ingress is possible, confirm the exact IP rating of this AB-type first.
What makes the HLG-100H-42AB different from the 42A and 42B models?
The -42AB combines both features: adjustable output (potentiometers, 38-46V / 1.4-2.28A) and dimming input (1-10V/PWM/resistance). The -42A has adjustable output only (no dimming). The -42B has dimming only (no potentiometer adjustment). All share the same 95.76W, 42V, 2.28A core specs.
