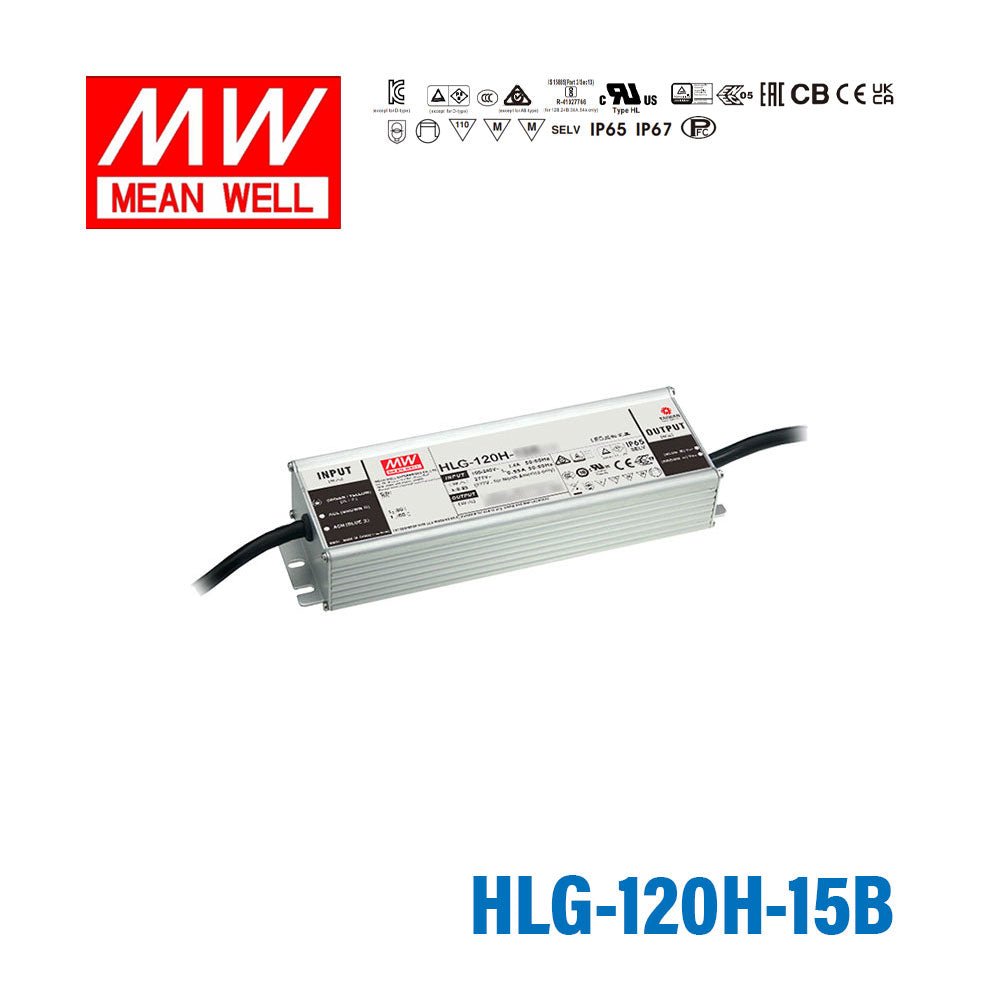

Mean Well HLG-120H-15B Power Supply 120W 15V - Dimmable 8A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-120H-15B Power Supply 120W 15V - Dimmable 8A
Overview
HLG-120H-15B is the 15V output model of this series: rated current 8A, rated power 120W, typical efficiency 92%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).
HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Function options: 3 in 1 dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- CONSTANT CURRENT REGIONNote.4
- 7.5 ~ 15V
- RATED CURRENT
- 8A
- RATED POWER
- 120W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 13.5 ~ 17V
- CURRENT ADJ. RANGE
- 4 ~ 8A
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.5%
- SETUP, RISE TIMENote.6
- 1200ms,50ms/115VAC 500ms,50ms/230VAC
- HOLD UP TIME (Typ.)
- 12ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT (Typ.)
- 1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 18 ~ 21V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.9
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750 (type”HL”) , CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP67, J61347-1, J61347-2-13 (except for D-type) ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004 , KC61347-1,KC61347-2-13 (except for D-type) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)
OTHERS
- MTBF
- 2185.8K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 220*68*38.8mm (L*W*H)
- PACKING
- 1.12Kg; 12pcs/14.4Kg/0.8CUFT
MODEL ENCODING
- Blank
- Io and Vo fixed; IP67
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B (this model)
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
- AB
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
- 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Catalogues1
FAQ
Can I use the HLG-120H-15B for dimmable outdoor 15V LED landscape lighting?
Yes. The HLG-120H-15B delivers 120W at 15V with dimming capability and carries an IP67 waterproof rating. This makes it ideal for outdoor landscape LED lighting where you need both weather resistance and brightness control, including garden paths, deck lighting, and water feature illumination.
Is the HLG-120H-15B suitable for dimmable 15V LED sign backlighting in exposed conditions?
Yes. With 120W at 15V, dimming support, and an IP67 waterproof rating, the HLG-120H-15B handles outdoor sign backlighting where brightness needs to change between day and night modes. The IP67 metal housing withstands rain, dust, and temporary submersion.
Can I use the HLG-120H-15B with a PWM dimming signal for 15V LED fixtures?
Yes. The HLG-120H-15B accepts dimming via 1-10V, PWM, and resistance signals. This allows integration with a wide range of dimming controllers for 15V LED fixtures. The driver provides up to 8A (120W) while maintaining the IP67 waterproof rating that the adjustable AB variant does not offer.
How many meters of 15V LED strip can the HLG-120H-15B power?
The HLG-120H-15B provides 120W at 15V. Divide 120W by your strip's rated power per meter to get maximum run length. For a strip rated at 15W/m, that is 8 meters (120W / 15W per meter = 8m). Always check your strip's rated power per meter and stay within the 120W limit.
Can the HLG-120H-15B withstand submersion or heavy rain?
Yes. The IP67 rating means the HLG-120H-15B is protected against temporary submersion in water up to 1 meter depth and is fully dust-tight. Combined with the -40°C to +80°C case temperature (Tcase) rating and metal housing, it handles harsh outdoor conditions including heavy rain and snow.
What is the difference between the HLG-120H-15B and the HLG-120H-15AB?
Both offer dimming capability on a 120W, 15V, 8A platform. The key differences are that the -15B has an IP67 waterproof rating and fixed baseline output, while the -15AB has an IP65 water-resistant rating and adds a potentiometer for adjusting the baseline output voltage and current. Choose the -15B for fully exposed outdoor sites and the -15AB when you need both dimming and output adjustment in a sheltered location.
