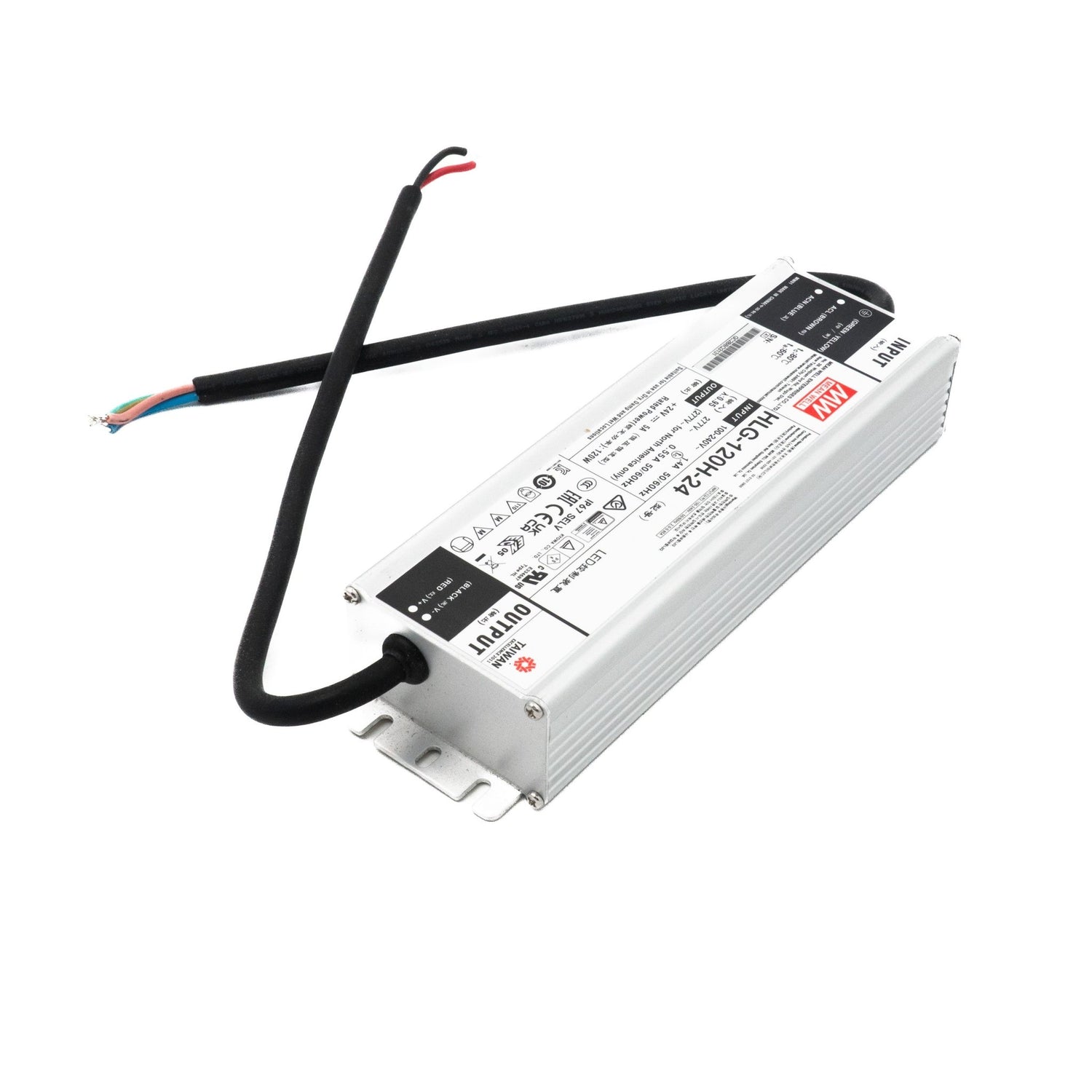

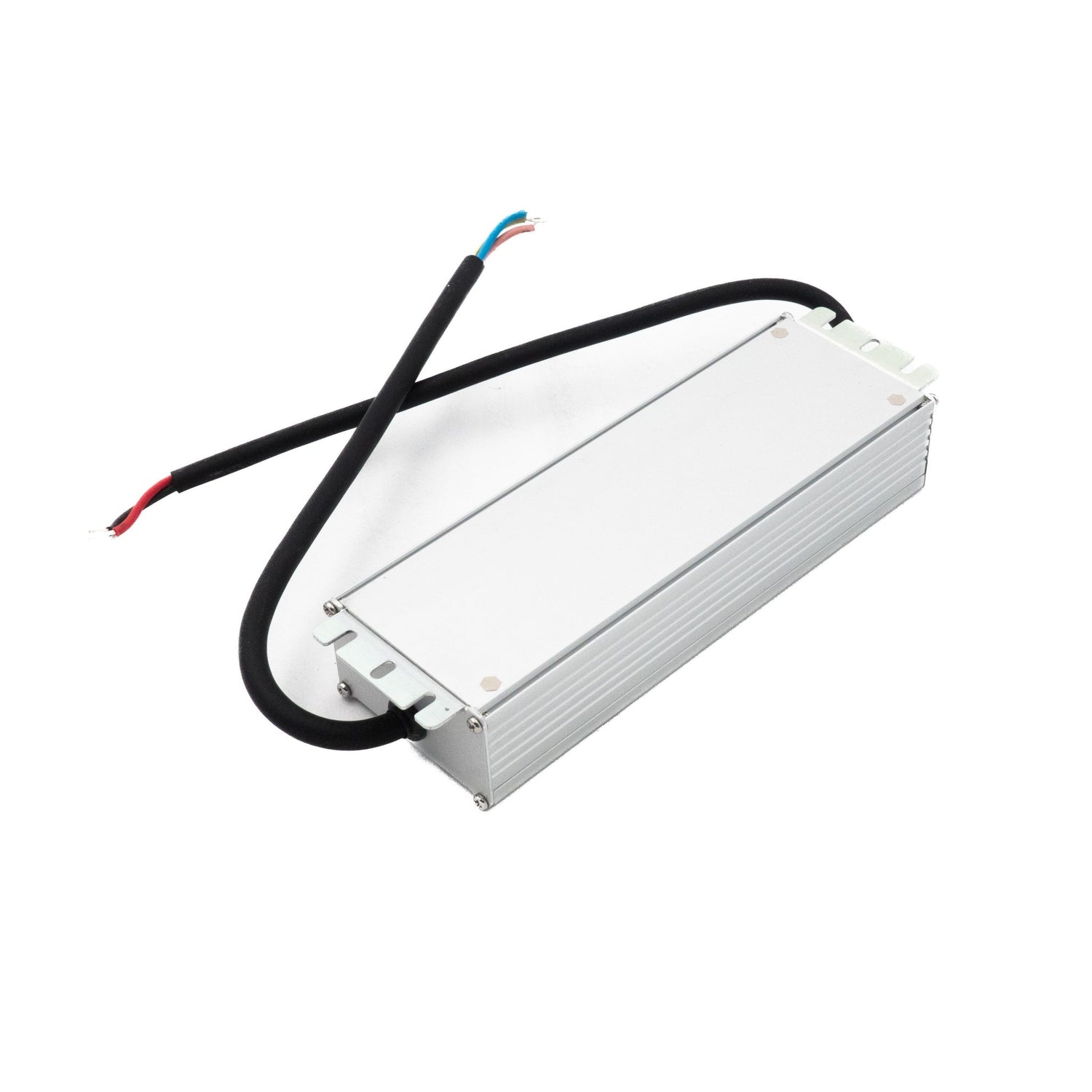

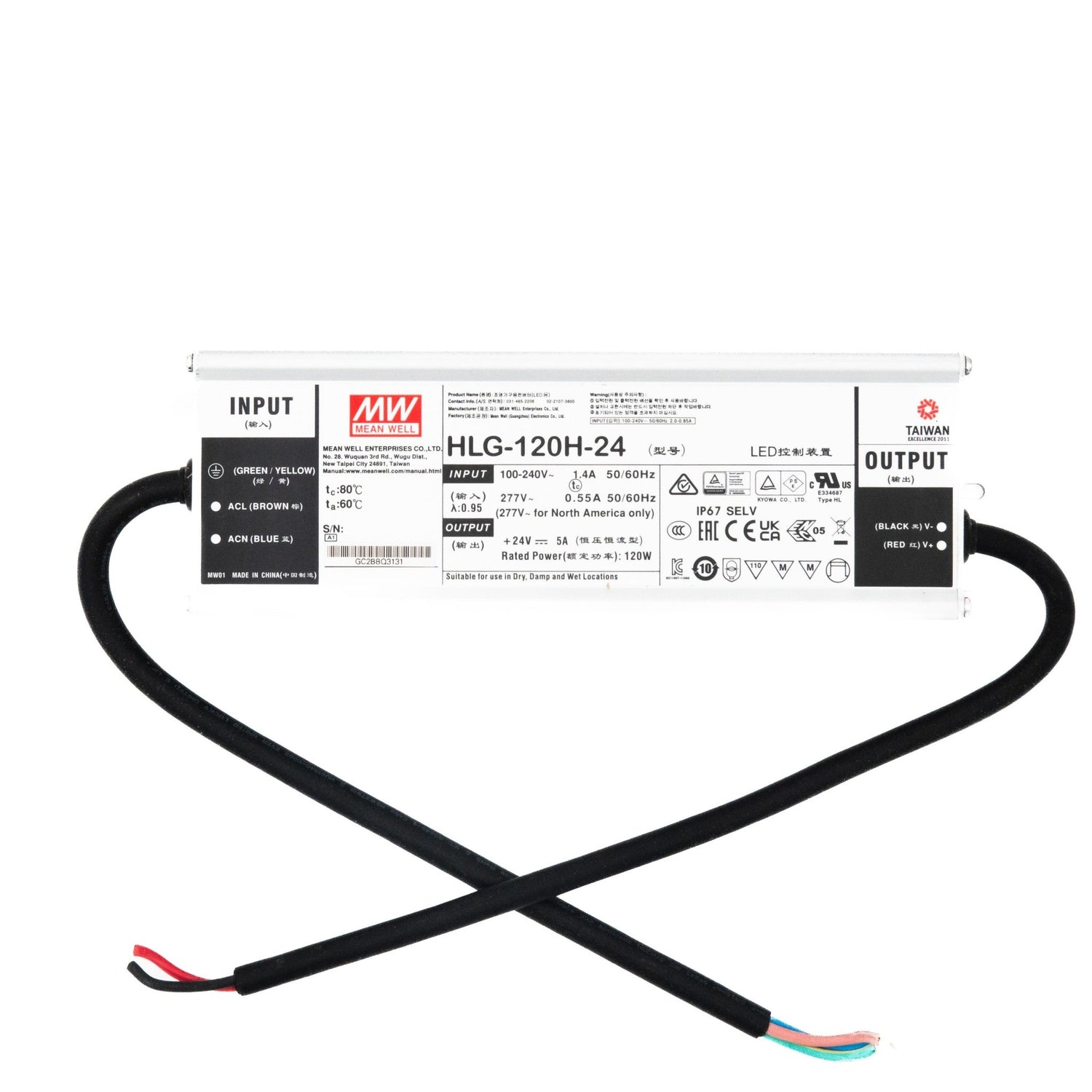

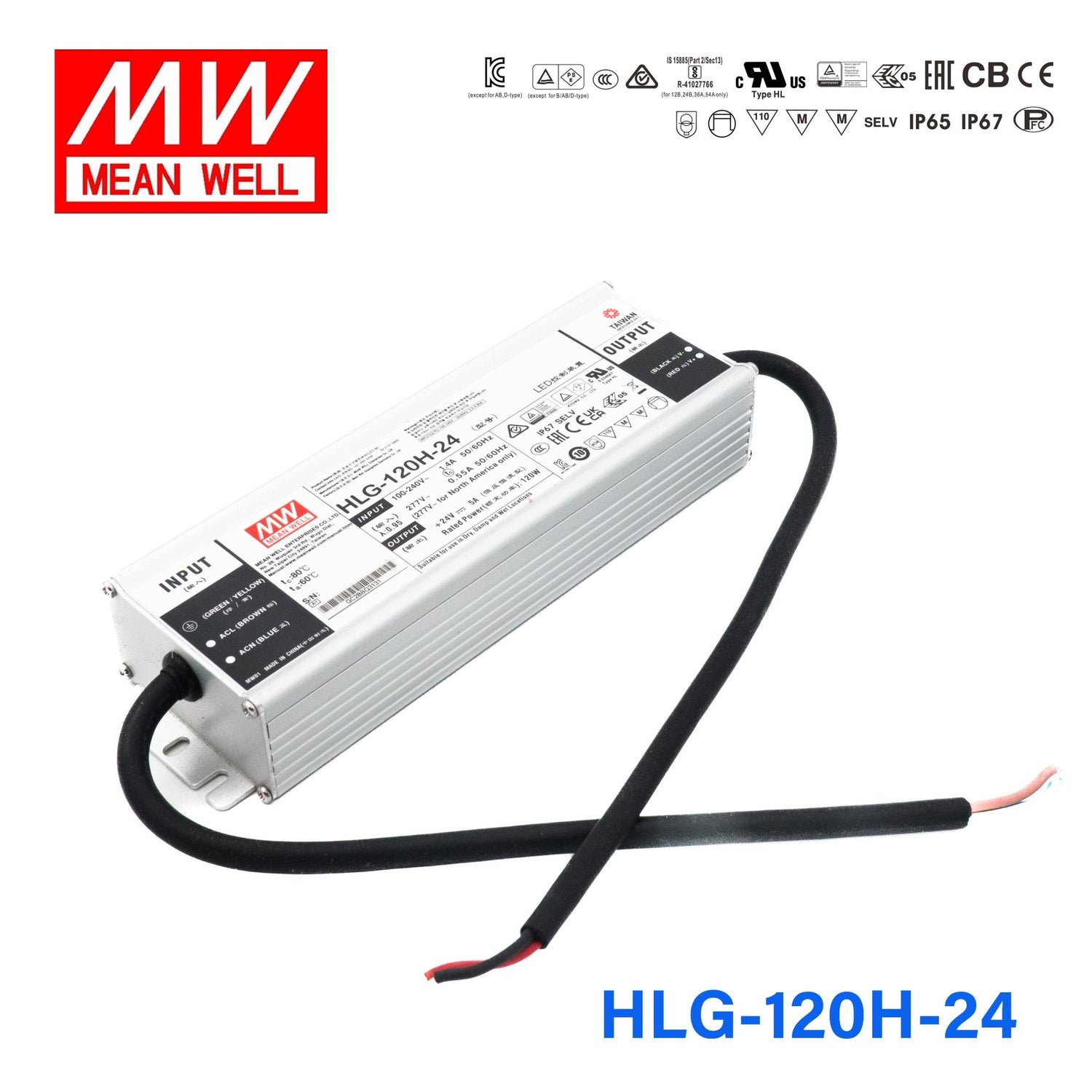

Mean Well HLG-120H-24 Power Supply 120W 24V 5A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-120H-24 Power Supply 120W 24V 5A
Overview
HLG-120H-24 is the 24V output model of this series: rated current 5A, rated power 120W, typical efficiency 93%. Type Blank: Io and Vo fixed (IP67).
HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Typical lifetime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.4
- 12 ~ 24V
- RATED CURRENT
- 5A
- RATED POWER
- 120W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 22 ~ 27V
- CURRENT ADJ. RANGE
- 2.5 ~ 5A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 1200ms,50ms/115VAC 500ms,50ms/230VAC
- HOLD UP TIME (Typ.)
- 12ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.9
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750 (type”HL”) , CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP67, J61347-1, J61347-2-13 ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004 , KC61347-1,KC61347-2-13 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)
OTHERS
- MTBF
- 2185.8K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 220*68*38.8mm (L*W*H)
- PACKING
- 1.12Kg; 12pcs/14.4Kg/0.8CUFT
MODEL ENCODING
- Blank (this model)
- Io and Vo fixed; IP67
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
- AB
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
- 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Catalogues1
FAQ
Can I use the HLG-120H-24 to power 24V LED strip lighting outdoors?
Yes. The HLG-120H-24 outputs 24V at up to 5A (120W) and carries an IP67 waterproof rating, making it well suited for outdoor 24V LED strip runs exposed to rain, snow, or irrigation spray. Its metal housing and -40°C to +80°C case temperature (Tcase) rating handle harsh weather conditions year-round.
Is the HLG-120H-24 a good fit for powering 24V LED channel-letter signage?
Yes. At 120W and 24V output, the HLG-120H-24 can drive a substantial run of 24V LED sign modules. The IP67 rating and wide 90-305VAC input make it practical for outdoor channel letters, cabinet signs, and monument signs where weather exposure and variable mains voltages are common.
Can I use the HLG-120H-24 for 24V landscape or pathway LED lighting?
Yes. The 120W capacity at 24V provides enough power for several landscape or pathway fixtures in series or parallel. The IP67 waterproof rating means it can be installed in outdoor junction boxes or exposed outdoor locations without additional weatherproofing.
How many meters of 24V LED strip can the HLG-120H-24 power?
That depends on the strip's rated power per meter. The HLG-120H-24 supplies up to 120W at 24V. For example, if your strip draws 14.4W/m, you could run up to about 8.3 meters (120W / 14.4W per meter). Always check your strip's rated power per meter and keep the total load at or below 120W.
Can the HLG-120H-24 be mounted in an outdoor enclosure or wet-location junction box?
Yes. Its IP67 waterproof rating means the unit is protected against temporary submersion up to 1 meter depth. It can be mounted in outdoor enclosures, wet-location junction boxes, or directly exposed to rain without needing additional weatherproofing.
What are the differences between the HLG-120H-24, 24A, 24AB, and 24B variants?
All four share the same 120W / 24V / 5A core specs. The base HLG-120H-24 has fixed output and IP67 waterproof rating. The -24A adds output voltage/current adjustment via built-in potentiometer (IP65). The -24AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -24B offers dimming input only and retains IP67 waterproof rating.
