Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

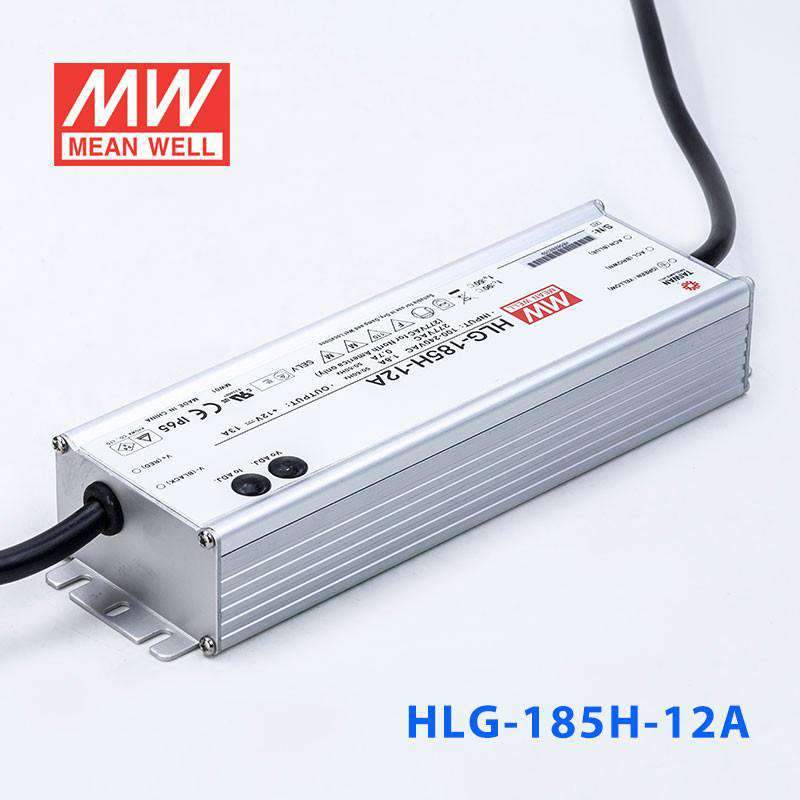

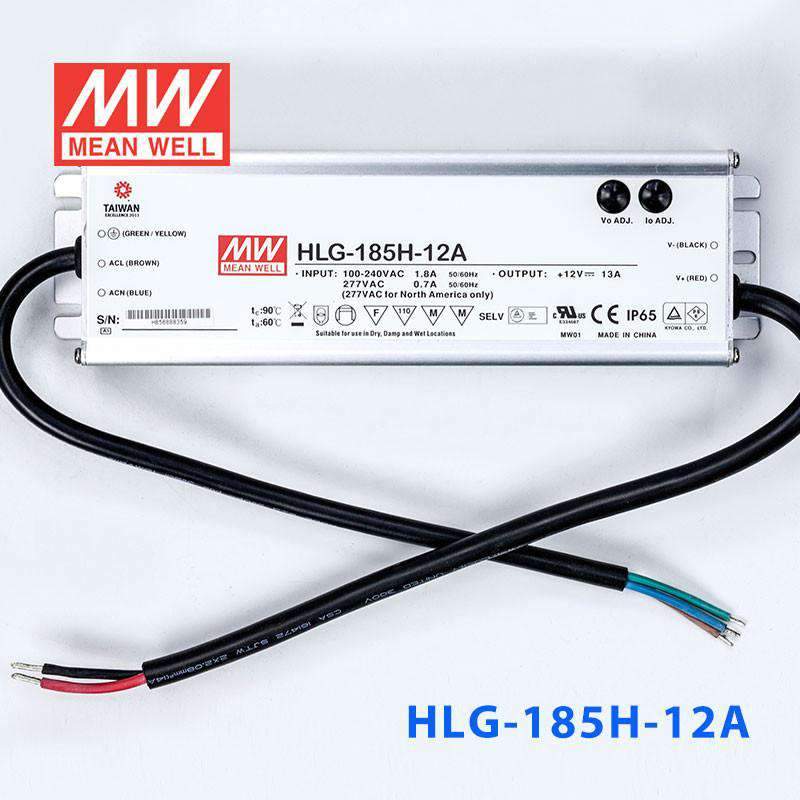

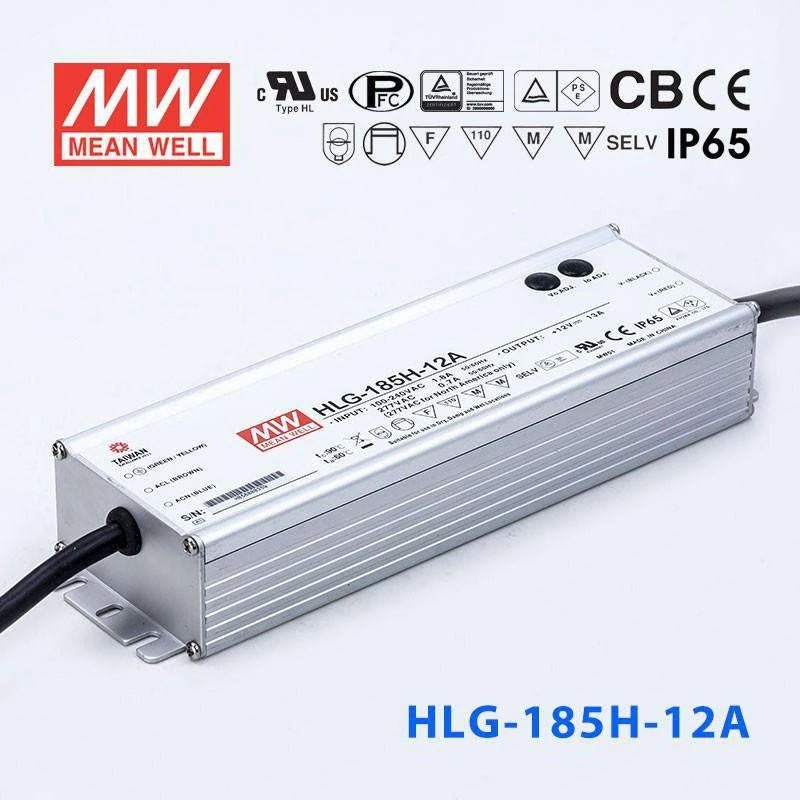

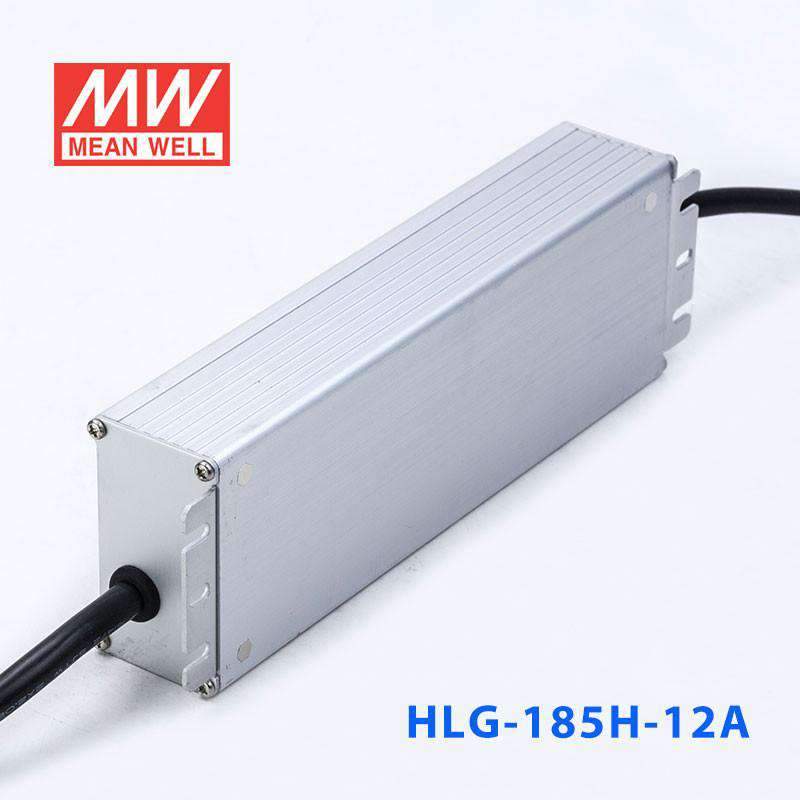

Mean Well HLG-185H-12A Power Supply 156W 12V - Adjustable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating156 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-12A to adjust brightness for 12V LED retail display lighting?
Yes. The HLG-185H-12A has a built-in potentiometer that lets you trim the output voltage and current. This is useful for retail displays where you need to set a specific brightness level for 12V LED strips or modules without an external dimmer. It delivers up to 156W at 12V.
Is the HLG-185H-12A a good fit for 12V LED strips in a covered outdoor patio or pergola?
Yes. At 156W and 12V with IP65 water-resistant protection, the HLG-185H-12A handles dust and splashing water in sheltered outdoor settings like patios, pergolas, or covered walkways. For fully exposed rain installations, consider the IP67-rated HLG-185H-12 base model.
Can the HLG-185H-12A power 12V LED light bars for vehicle or marine accent lighting?
Yes, for stationary installations. The HLG-185H-12A delivers up to 13A at 12V, which is sufficient for multiple 12V LED light bars. The adjustable output lets you match the drive voltage precisely. Note that this driver requires 90-305VAC mains input and is not designed for direct vehicle battery use.
How many meters of 12V LED strip can the HLG-185H-12A handle?
Divide 156W by your strip's wattage per meter. For a strip rated at 9.6W/m, you could run about 16.2 meters (156W / 9.6W per meter). For a higher-power strip at 19.2W/m, the maximum would be about 8.1 meters. Always check your strip's rated power per meter and stay at or below 156W total.
Is the HLG-185H-12A rated for installation in a damp basement or garage workshop?
Yes. IP65 protects against dust ingress and low-pressure water jets, which is more than sufficient for damp basements, garages, or workshops. The aluminium casing also resists corrosion in humid environments. For locations with standing water or direct hose-down, the IP67-rated HLG-185H-12 is a better choice.
