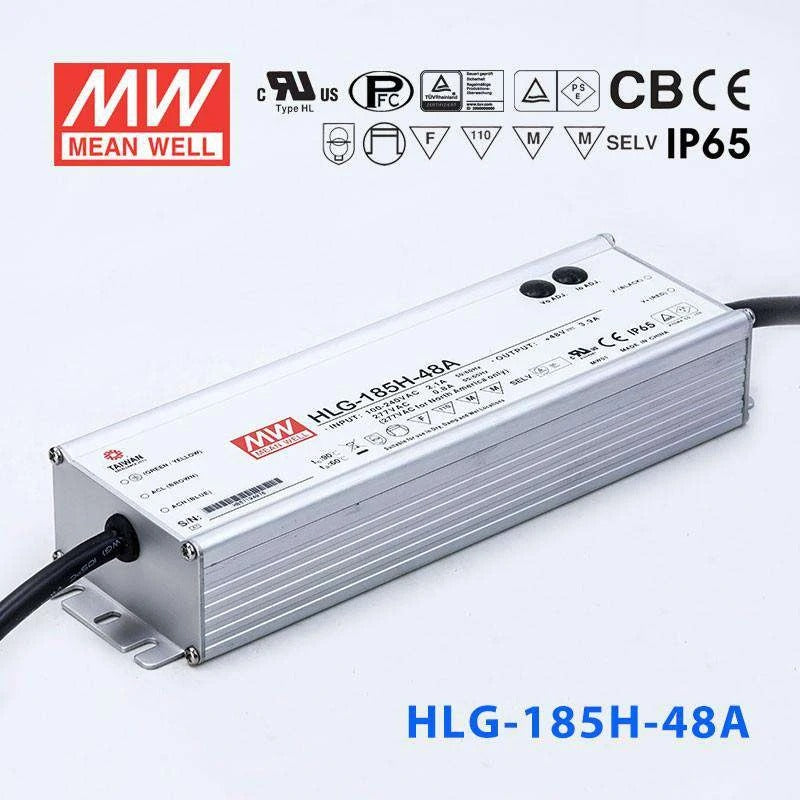

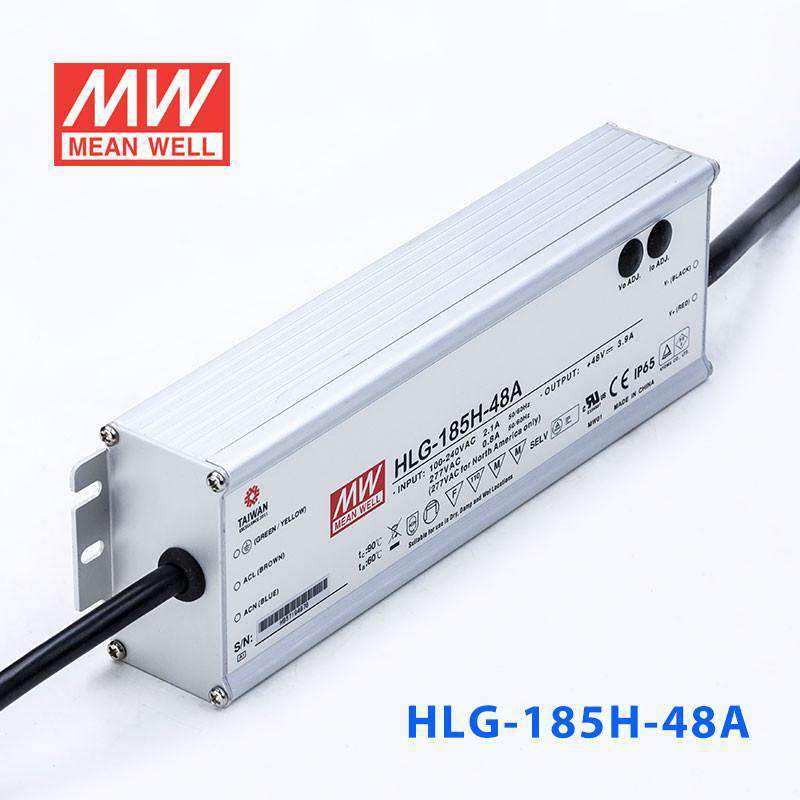

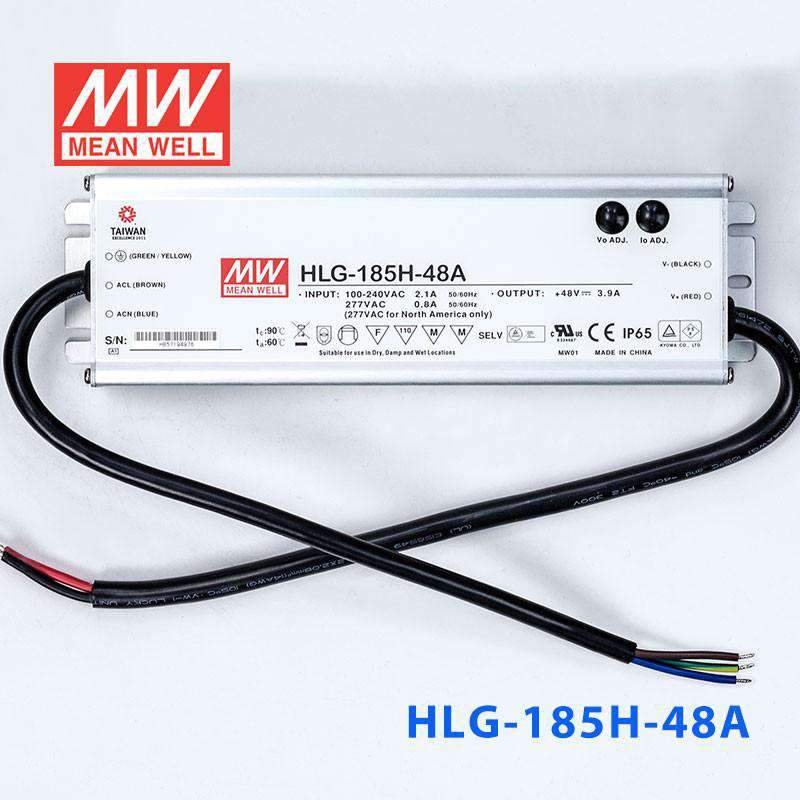

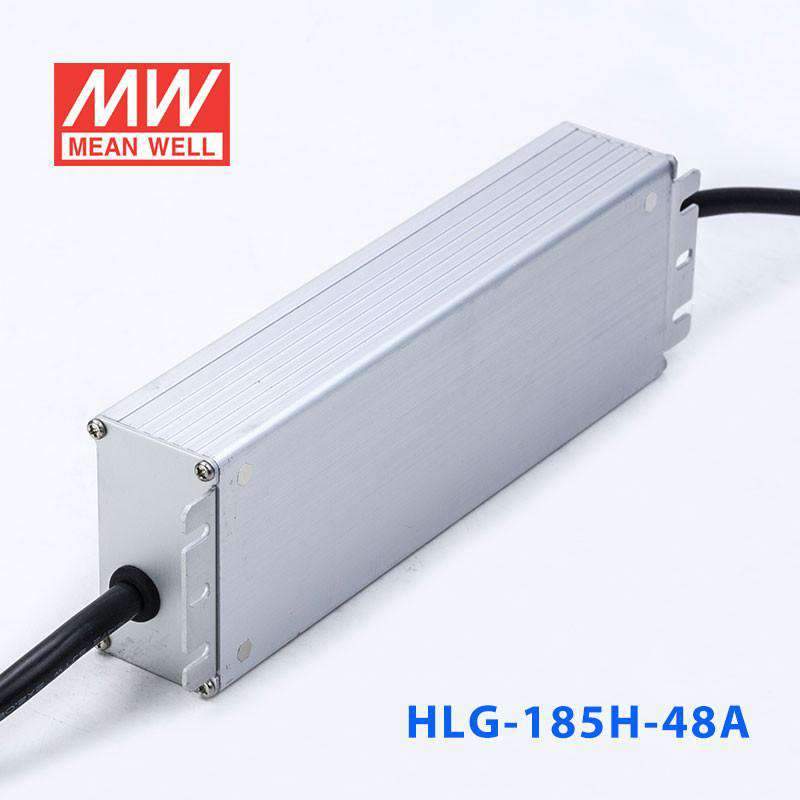

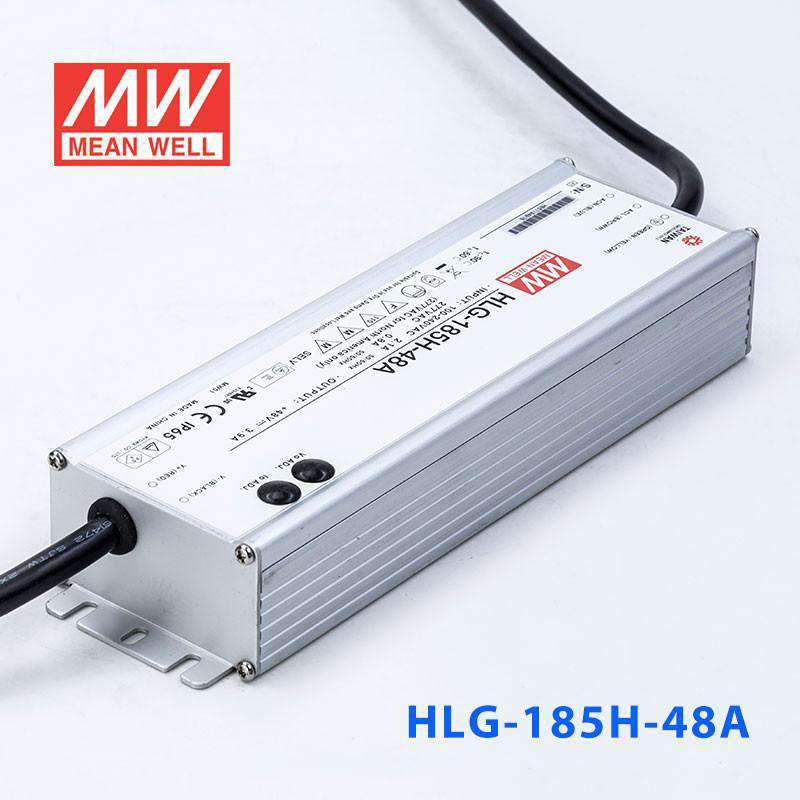

Mean Well HLG-185H-48A Power Supply 185W 48V - Adjustable

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

Optional CQC models available (A/Blank-Type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	±10% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 16ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm);
Dimension (LxWxH) (mm)	A/B/D/Blank-Type: 228x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

185 Watt
Output Voltage

48 Volt
Rated Current

3.9 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.98 in
Width

2.68 in
Height

1.53 in
Weight

2.54 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-185H-48A to power 48V LED strips in a covered outdoor area?

Yes. The HLG-185H-48A delivers 48V at up to 3.9A (185W) with an IP65 water-resistant rating, so it handles splashing water and dust in covered patios, canopies, or soffits. For fully exposed rain installations, consider the IP67-rated HLG-185H-48 or -48B instead.

Is the adjustable output on the HLG-185H-48A useful for fine-tuning LED brightness?

Yes. The built-in potentiometer lets you trim the output voltage and current without an external dimmer. The CC voltage range is 24-48V, so you can lower the drive level to match your specific LED load or reduce brightness slightly for the desired effect.

Can the HLG-185H-48A power 48V LED modules for commercial signage?

Yes. At 185W and 48V, it can drive 48V channel letters, light boxes, or cabinet sign modules. The adjustable output is useful for precisely matching driver voltage to the module string voltage, and the wide 90-305VAC input handles most commercial mains supplies.

Can the HLG-185H-48A drive 48V architectural or cove lighting?

Yes. The 185W output at 48V suits medium-power architectural fixtures such as linear cove lights, wall washers, and accent strips. The built-in adjustment lets you dial in the exact output voltage for optimal performance across varying LED forward voltages within the 24-48V CC range.

How many meters of 48V LED strip can the HLG-185H-48A handle?

Divide 185W by your strip's power consumption per meter. For instance, a 48V strip rated at 10W/m would allow about 18.5 meters (185W / 10W per meter). Always check your strip's rated power per meter and keep the total load at or below 185W.

Is the HLG-185H-48A suitable for a damp warehouse or parking garage?

Yes. IP65 protects against low-pressure water jets and dust ingress, which is more than sufficient for damp indoor environments like warehouses, parking garages, or wash-down areas. For locations with direct rain or potential standing water, the IP67-rated HLG-185H-48 is more appropriate.
