Mean Well HLG-185H-C1050A Power Supply 199.5W 1050mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours

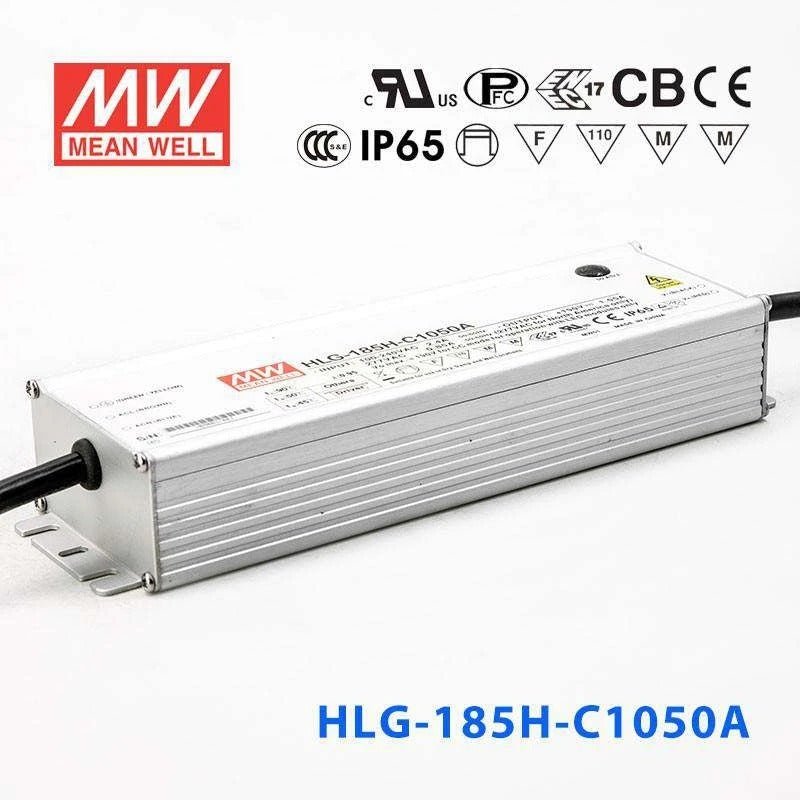

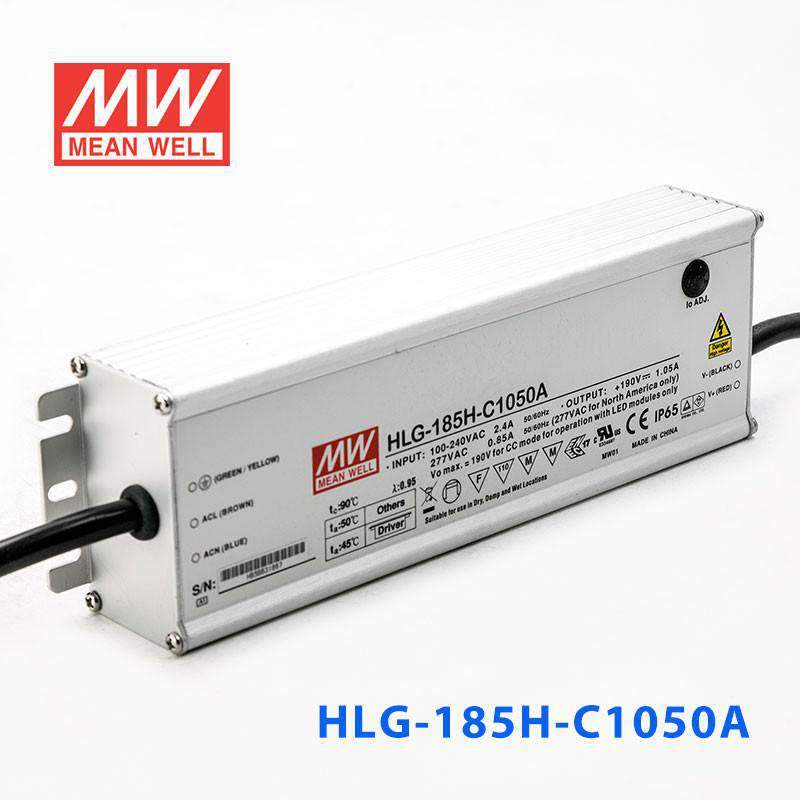

Mean Well HLG-185H-C1050A Power Supply 199.5W 1050mA - Adjustable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating199.5 Watt
-
Output Voltage190 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-C1050A to drive high-power LED downlights or high-bay fixtures?
Yes. The HLG-185H-C1050A delivers 1050mA constant current at up to 199.5W with a CC voltage range of 95-190V. This higher current and wattage is appropriate for demanding commercial lighting such as high-bay warehouse fixtures, large recessed downlights, or industrial task lighting. The adjustable output lets you fine-tune the current to match your LED modules.
Is the HLG-185H-C1050A suitable for powering LED grow lights in a commercial greenhouse?
Yes. At 199.5W and 1050mA, it provides substantial power for high-intensity LED grow light arrays. The CC voltage range of 95-190V accommodates various series string configurations. The adjustable output via potentiometer lets you optimize the drive current for different growth stages. The IP65 rating is appropriate if the driver is kept in a sheltered location away from direct water spray.
Can the HLG-185H-C1050A power large LED signage arrays requiring 1050mA drive current?
Yes. Many high-power LED signage modules are rated for 1050mA. This driver provides that current with a voltage range of 95-190V, and the adjustable output (A suffix) allows fine-tuning to match the exact module specifications. The IP65 rating suits sign cabinet installations, and the 7-year warranty ensures long-term reliability for commercial signage.
How does the HLG-185H-C1050A compare in size and capacity to the HLG-120H constant current models?
The HLG-185H-C1050A provides 199.5W at 1050mA compared to approximately 150W for the HLG-120H-C series. It is slightly larger at 228 x 68 x 38.8 mm and 1.15 kg versus 220 x 68 x 38.8 mm and 1.04 kg for the HLG-120H-C models. The higher wattage makes it better suited for larger LED installations that exceed the 150W capacity of the HLG-120H series.
Can the HLG-185H-C1050A be installed outdoors under a building overhang?
Yes. The IP65 rating provides dust-tight protection and resistance to low-pressure water jets, making it suitable for sheltered outdoor locations like building overhangs, soffits, or weather-protected equipment enclosures. The -40°C to +90°C operating range handles year-round temperature variation in most climates.
What certifications does the HLG-185H-C1050A carry for international use?
The HLG-185H-C1050A holds CB, CCC, CE, EAC, ENEC, c_pse, c_rcm, and UL certifications. This broad certification coverage allows it to be deployed in projects across North America, Europe, Asia-Pacific, and other markets without additional compliance testing, which simplifies procurement for multinational installations.
