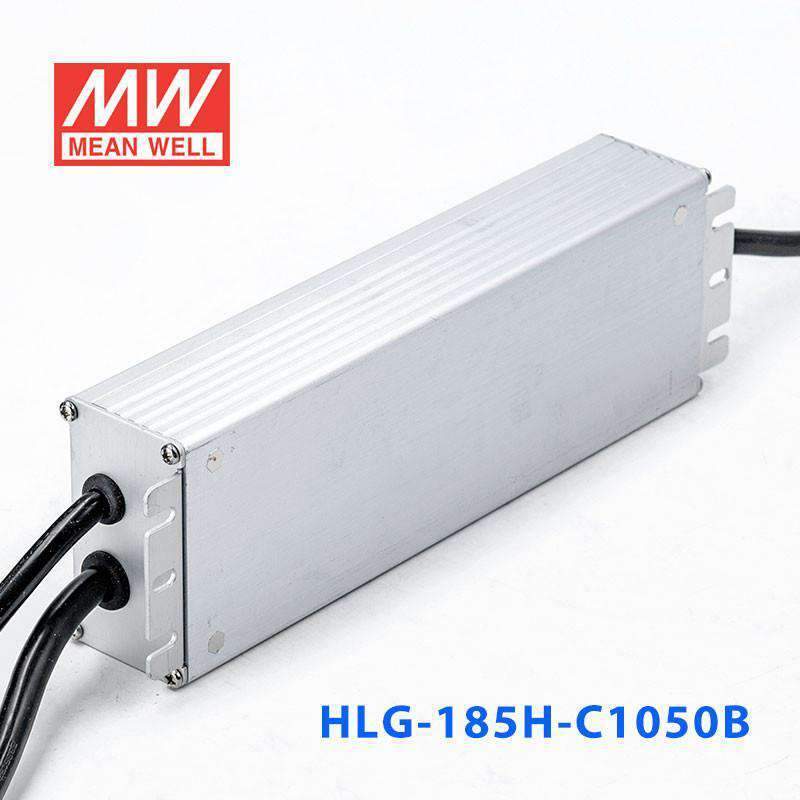

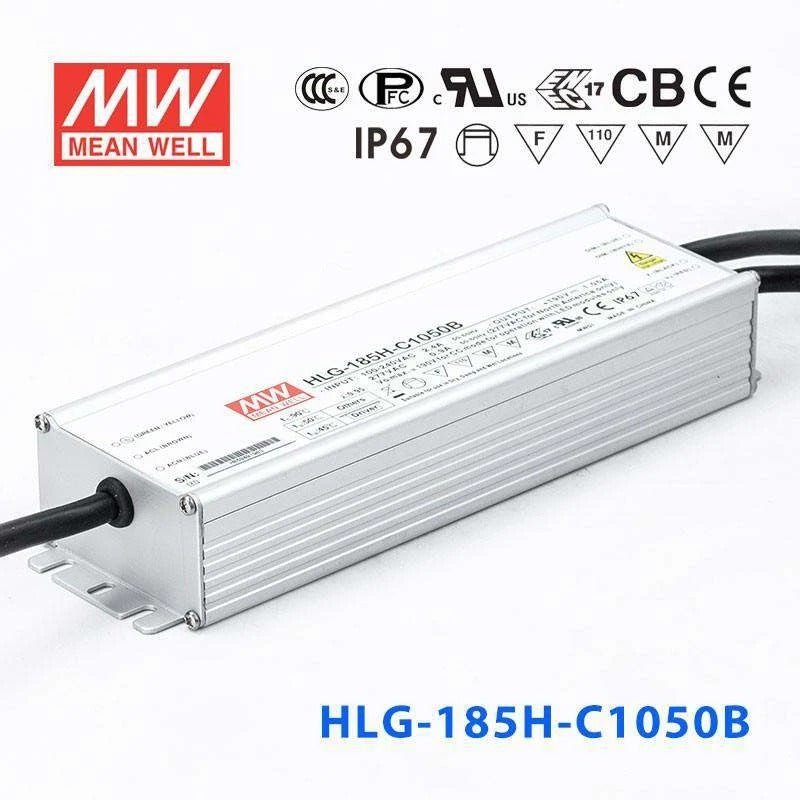

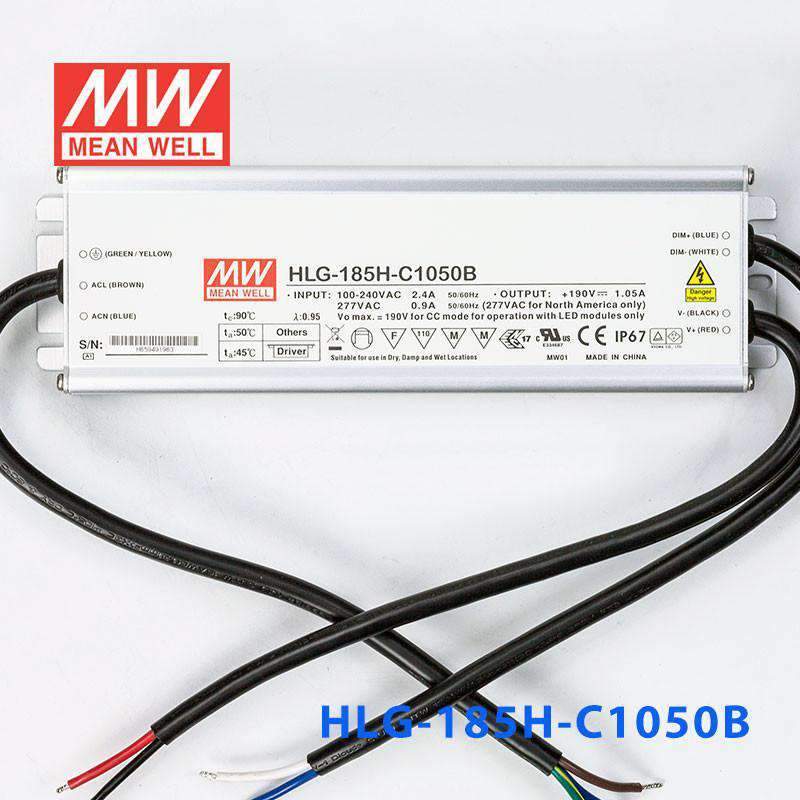

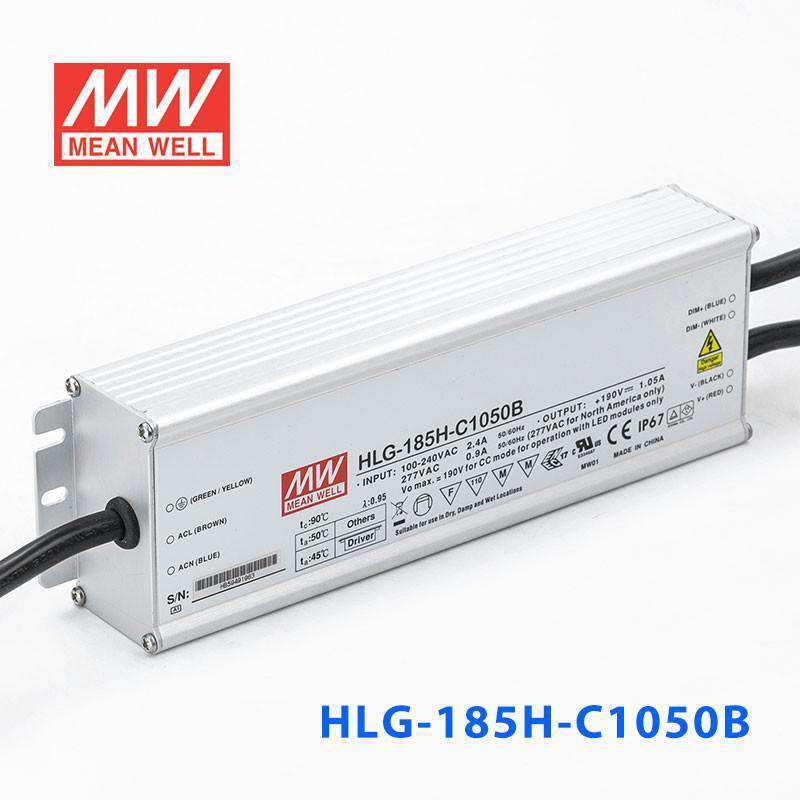

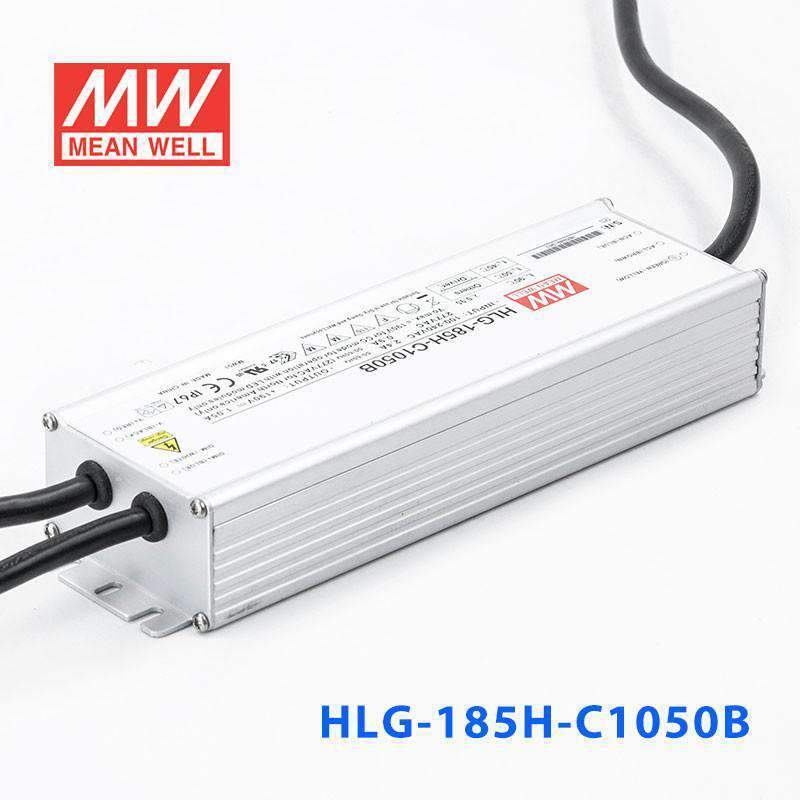

Mean Well HLG-185H-C1050B Power Supply 199.5W 1050mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-C1050B Power Supply 199.5W 1050mA - Dimmable
Overview
HLG-185H-C1050B is the model of this series: rated current 1050mA, rated power 199.5W, typical efficiency 94%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).
HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Function options: 3 in 1 dimming
- Typical lifetime>62000 hours
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1050mA
- RATED POWER
- 199.5W
- CONSTANT CURRENT REGIONNote.2
- 95V ~ 190V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 1000ms/115VAC 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 210 ~ 225V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.7
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Refer to "Derating Curve")
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 10 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 228*68*38.8mm (L*W*H)
- PACKING
- 1.15Kg; 12pcs/14.8Kg/0.8CUFT
MODEL ENCODING
- A
- Io adjustable through built-in potentiometer; IP65
- B (this model)
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
- 8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED bay lighting
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HLG-185H-C1050B for dimmable LED downlight installations?
Yes. The HLG-185H-C1050B provides 1050mA constant current across a 95-190V range and includes a 1-10V/PWM dimming input. This makes it a strong choice for series-wired LED downlight strings where smooth brightness control is needed from an external dimmer or automation system.
Is the HLG-185H-C1050B a good fit for outdoor LED signage that needs dimming?
Yes. At 199.5W and 1050mA constant current, it can drive long series chains of signage LED modules. The built-in dimming input supports day/night brightness scheduling. The series' IP65 or IP67 rating allows installation in sheltered outdoor enclosures near the sign; refer to MEAN WELL's user manual for waterproof installation cautions.
Can this driver power series-connected LED COB fixtures in a warehouse?
Yes, as long as the total forward voltage of the COB string stays within 95-190V and the COBs are rated for 1050mA. The number of fixtures you can wire in series depends on each COB's forward voltage. With 199.5W capacity, it handles substantial industrial lighting loads.
What is the difference between the HLG-185H-C1050B and the HLG-185H-C1050AB?
Both share the same 199.5W, 1050mA, 95-190V constant-current specs and dimming input. The C1050AB adds an output adjustment potentiometer that lets you fine-tune the current level, whereas the C1050B has dimming only with no manual adjustment. Choose the AB if you need to trim the drive current for a specific LED string.
Can the HLG-185H-C1050B operate in cold environments such as walk-in freezers?
Yes. The driver is rated for a case temperature (Tcase) down to -40°C, so it can function in freezer applications. Working humidity is rated at 10-95% RH non-condensing, and the series' IP65 or IP67 rating protects against dust and water.
How many LEDs can the HLG-185H-C1050B drive in series?
That depends on each LED's forward voltage. The driver's constant-current output covers 95-190V, so you divide the total available voltage by the forward voltage of each LED. For example, with LEDs rated at 3.2V each, you could theoretically wire up to 59 in series (190V / 3.2V). Always verify your LED forward voltages and ensure the total stays within the 95-190V range.
