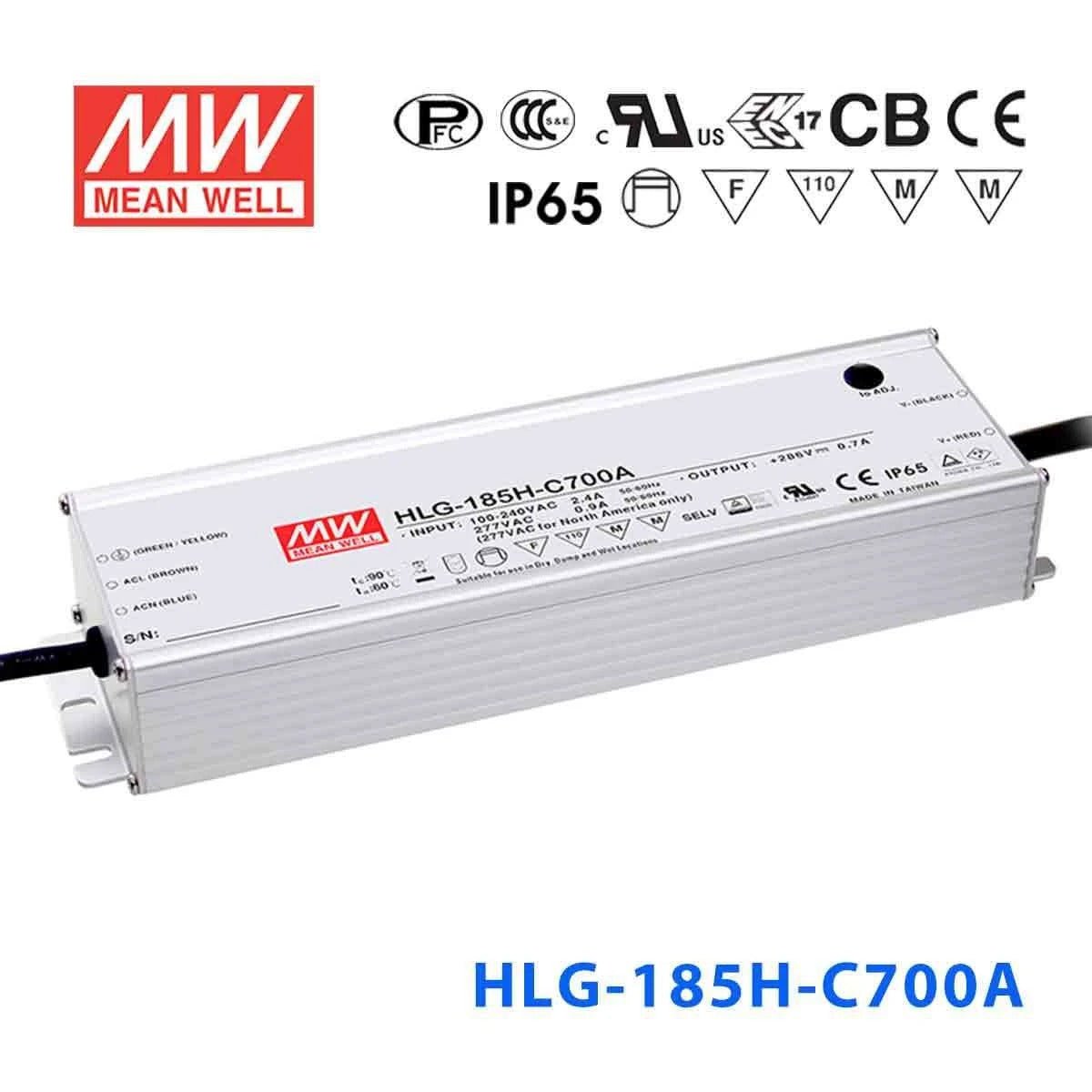

Mean Well HLG-185H-C700A Power Supply 200.2W 700mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-C700A Power Supply 200.2W 700mA - Adjustable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating200.2 Watt
-
Output Voltage286 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-C700A to drive high-voltage LED string arrays for commercial signage?
Yes. The HLG-185H-C700A delivers a constant 700mA across a CC voltage range of 143-286V, making it well suited for long series strings of LEDs used in channel letters and large signage modules. The number of LEDs you can drive depends on each LED's forward voltage; the total forward voltage of the string must fall within the 143-286V range.
Is the HLG-185H-C700A suitable for powering high-bay LED downlights in a warehouse?
Yes. At 200.2W and 700mA constant current, this driver can power high-output LED downlight or high-bay fixtures whose combined forward voltage falls within 143-286V. The adjustable output lets you fine-tune the current to match your fixture's optimal operating point.
Can the HLG-185H-C700A power LED modules in an outdoor illuminated sign?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered or semi-exposed outdoor sign installations. The 200.2W output at 700mA handles medium-to-large LED sign arrays whose series string voltage falls within 143-286V.
How many LEDs can I run in series with the HLG-185H-C700A?
The exact number depends on each LED's forward voltage. The driver operates in constant current mode at 700mA with a CC voltage range of 143-286V, so you need to sum the forward voltages of your LEDs and confirm the total falls within that range. The adjustable output allows you to trim the operating point for your specific LED string.
Can the HLG-185H-C700A be mounted in an outdoor enclosure exposed to rain?
The HLG-185H-C700A carries an IP65 rating, which protects against dust ingress and low-pressure water jets but not full immersion. It is appropriate for sheltered outdoor locations such as soffits, ventilated enclosures, or covered canopies. For fully submerged or heavily exposed installations, consider an IP67-rated model such as the HLG-185H-C700B.
What does the 'A' suffix mean on the HLG-185H-C700A compared to the AB and B versions?
The HLG-185H-C700A includes a built-in potentiometer for output current adjustment but has no dimming signal input. The -C700AB adds both adjustment and a 1-10V/PWM dimming input. The -C700B provides a dimming input only, without the adjustment potentiometer. All three share the same 200.2W, 700mA, 143-286V core specs and IP65 rating.
