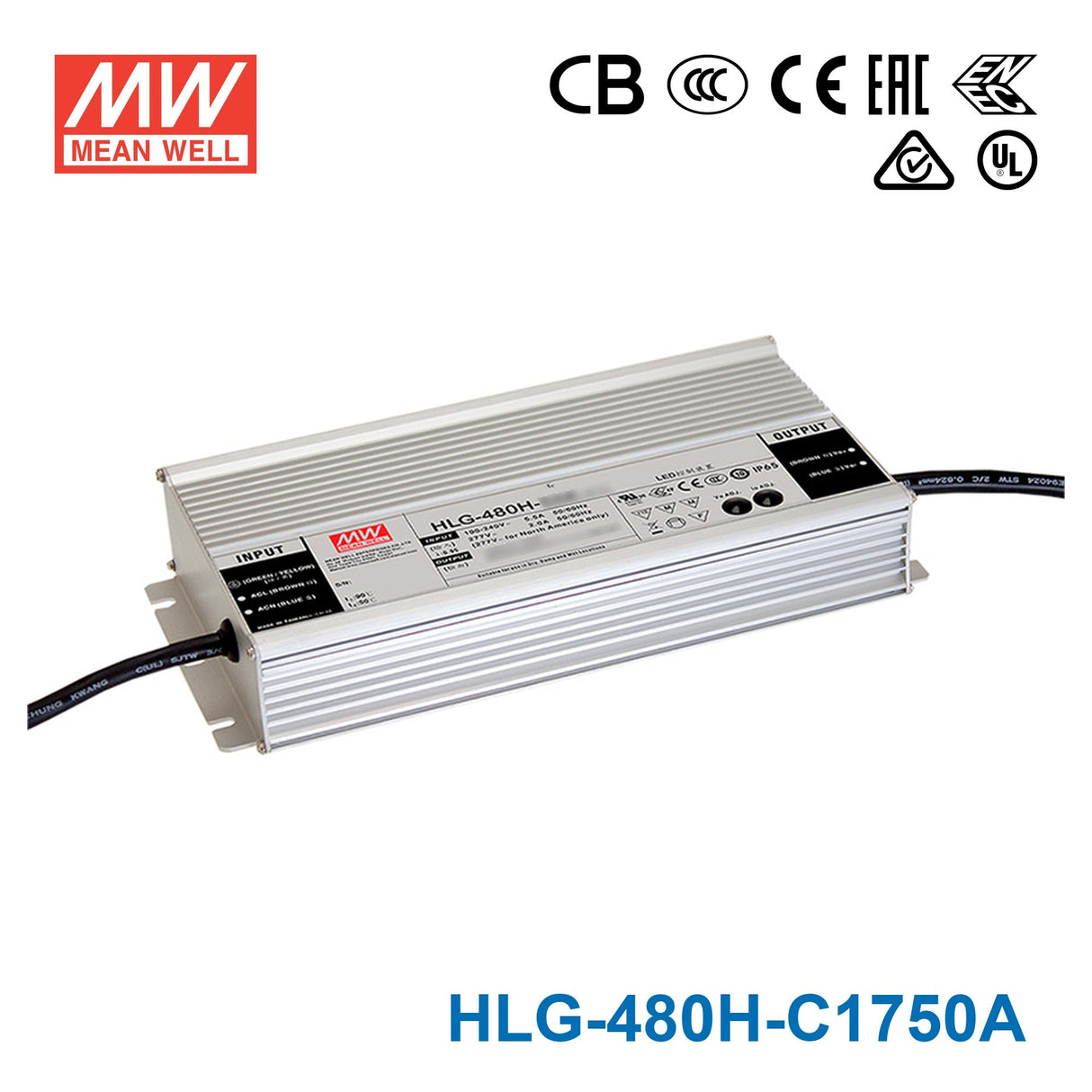

Mean Well HLG-480H-C1750A Power Supply 480W 1750mA

Name: Mean Well HLG-480H-C1750A Power Supply 480W 1750mA - Adjustable
Brand: Mean Well
SKU: HLG-480H-C1750A
Price: 133.41 USD
Availability: InStock

Overview

HLG-480H-C1750A is the model of this series: rated current 1750mA, rated power 480W, typical efficiency 95%. Type A: Io adjustable through built-in potentiometer. And environment adaptiveness (IP65).

HLG-480H-C series is a 480W LED AC/DC driver featuring the constant current mode and high voltage output. HLG-480H-C operates from 90~305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreove, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HLG-480H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Environment-adaptive driving capability
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; Low temperature light-on; Junction box
Typical lifetime>62000 hours (Note.7)
7 years warranty

Specifications

HLG-480H-C1750ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 480W
CONSTANT CURRENT REGION^Note.2: 137~274V
OPEN CIRCUIT VOLTAGE (max.): 340V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700~1400mA 875~1750mA 1050~2100mA 1400~2800mA 1750~3500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧40% /115VAC, 230VAC, 277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current, recovers automatically after fault condition is removed
OVER VOLTAGE: 345 ~ 382V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Certifications & ratings

Type: HL
IP level: IP65 IP67

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer. And environment adaptiveness; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptiveness; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request. And environment adaptiveness; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-480H-C1750A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-480H-C1750A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HLG-480H-C1750A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-480H-C1750A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-480H-C1750A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-480H-C1750A LIFETIME(Kh) — LIFETIME(Kh)

HLG-480H-C1750A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

HLG-480H-C1750A Illustration (page 10) — Illustration (page 10)

HLG-480H-C1750A ※ Junction Box Option — ※ Junction Box Option

HLG-480H-C1750A ※ Junction Box Option (2) — ※ Junction Box Option (2)

Typical applications

LED Harboure
LED greenhouse lighting
LED statium lighting
LED mining lighting
Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

Datasheet1

HLG-480H-C1750A datasheetHLG-480H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates7

Mean Well HLG-480H-C-ENEC Certificate PDF Download

Mean Well HLG-480H-C-CCC Certificate PDF Download

Mean Well HLG-480H-C-CB Certificate PDF Download

Mean Well HLG-480H-C-EMC Certificate PDF Download

Mean Well HLG-480H-C-CE-dec Certificate PDF Download

Mean Well HLG-480H-C-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well HLG-480H-C1750 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-480H-C1750A for high-power LED street lighting?

Yes. The HLG-480H-C1750A delivers 480W at 1750mA constant current with a CC voltage range of 137-274V, making it suitable for municipal street light fixtures using high-power LED modules. The IP65 water-resistant rating and -40 to +90 degree Celsius case temperature (Tcase) range handle year-round outdoor conditions in sheltered pole-top housings.

Is the HLG-480H-C1750A appropriate for driving LED grow lights in greenhouses?

Yes. At 480W and 1750mA, this driver has enough capacity for high-output horticultural LED fixtures. The adjustable output (A suffix) lets you fine-tune the current via the built-in potentiometer to match your specific LED module requirements. The wide 90-305VAC input handles varying mains voltages found in agricultural facilities.

Can the HLG-480H-C1750A power LED arrays in large-format stadium or arena signage?

Yes. The 1750mA constant current output across a 137-274V range can drive extended series strings of high-power LEDs used in stadium displays and large advertising signs. The IP65 protection suits installations in covered outdoor concourses or equipment rooms adjacent to the sign location.

Can I adjust the output current on the HLG-480H-C1750A?

Yes. The A suffix indicates a built-in potentiometer that allows you to adjust the output current. This is useful when you need to fine-tune the drive current to match your specific LED module's optimal operating point or to reduce output for thermal management in enclosed fixtures.

How do I determine if my LED string voltage falls within the HLG-480H-C1750A range?

Add up the forward voltages of all LEDs in your series string. The total must fall between 137V and 274V for the driver to regulate properly at 1750mA. Outside this window the driver is not specified to deliver its rated constant current, so size the string to stay within 137-274V.

Can the HLG-480H-C1750A operate in cold climates or freezing conditions?

Yes. It is rated for a case temperature (Tcase) of -40 to +90 degrees Celsius, so it handles extreme cold environments such as northern-latitude street lighting, cold-storage facility exteriors, or unheated industrial buildings. The IP65 enclosure also protects against snow and ice melt exposure.
