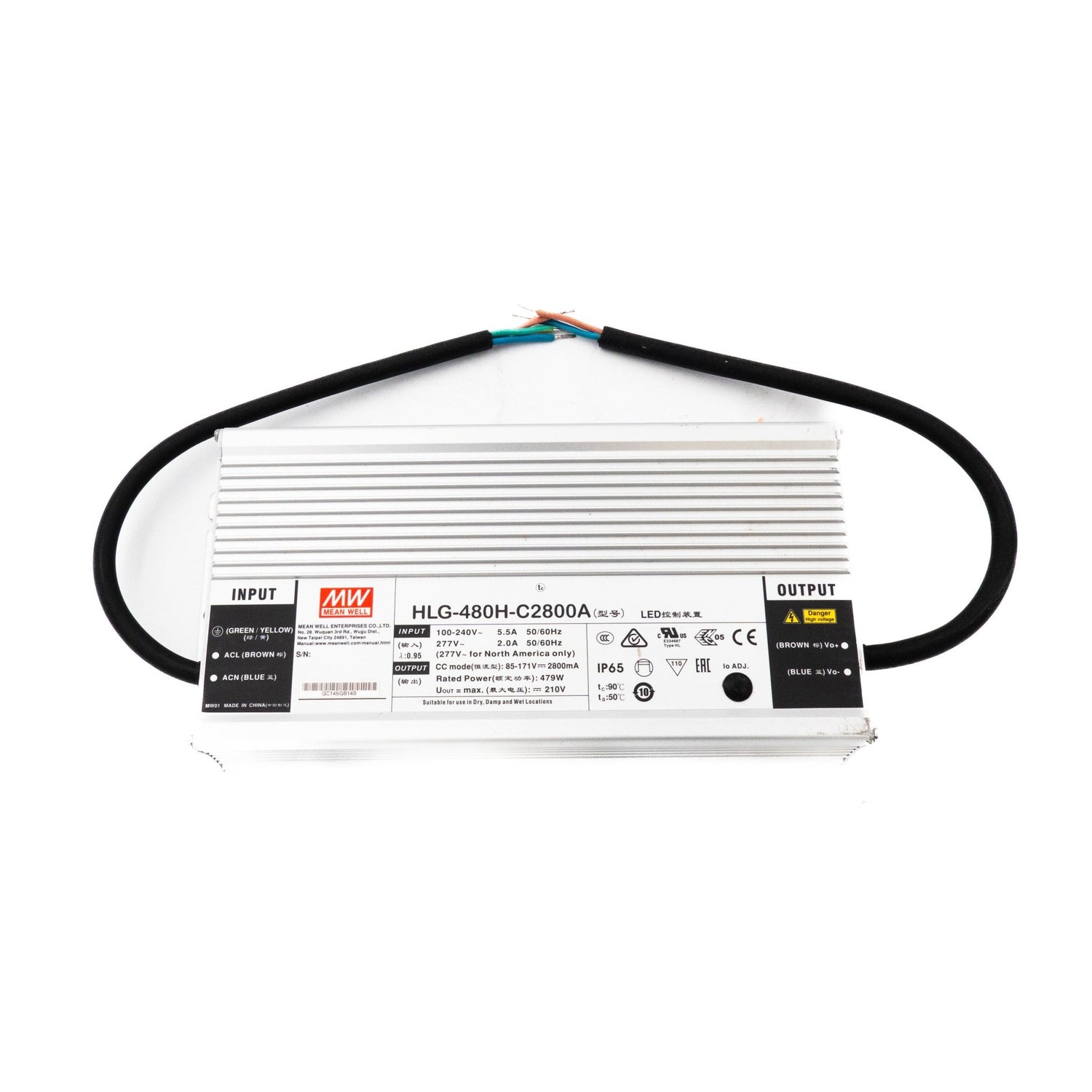

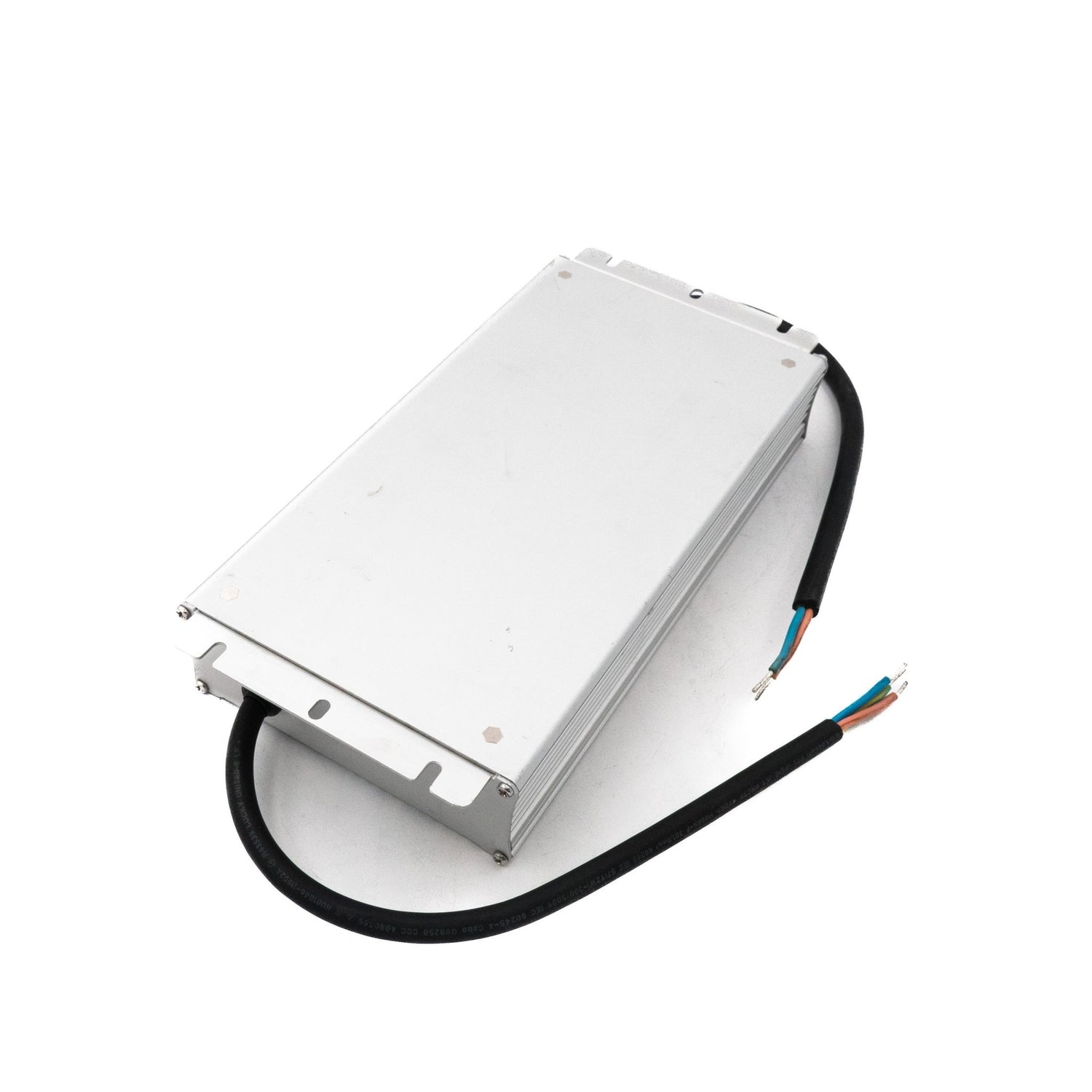

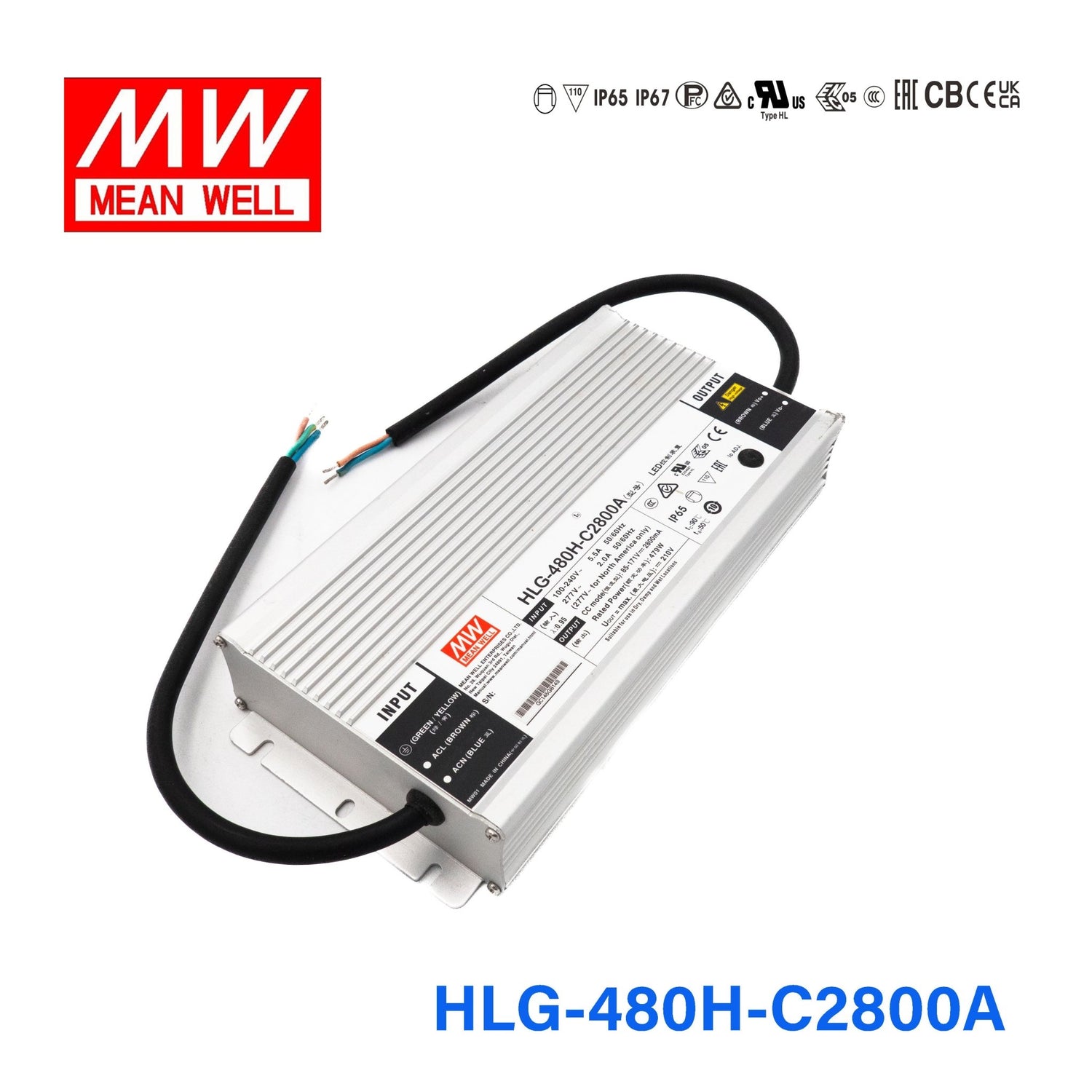

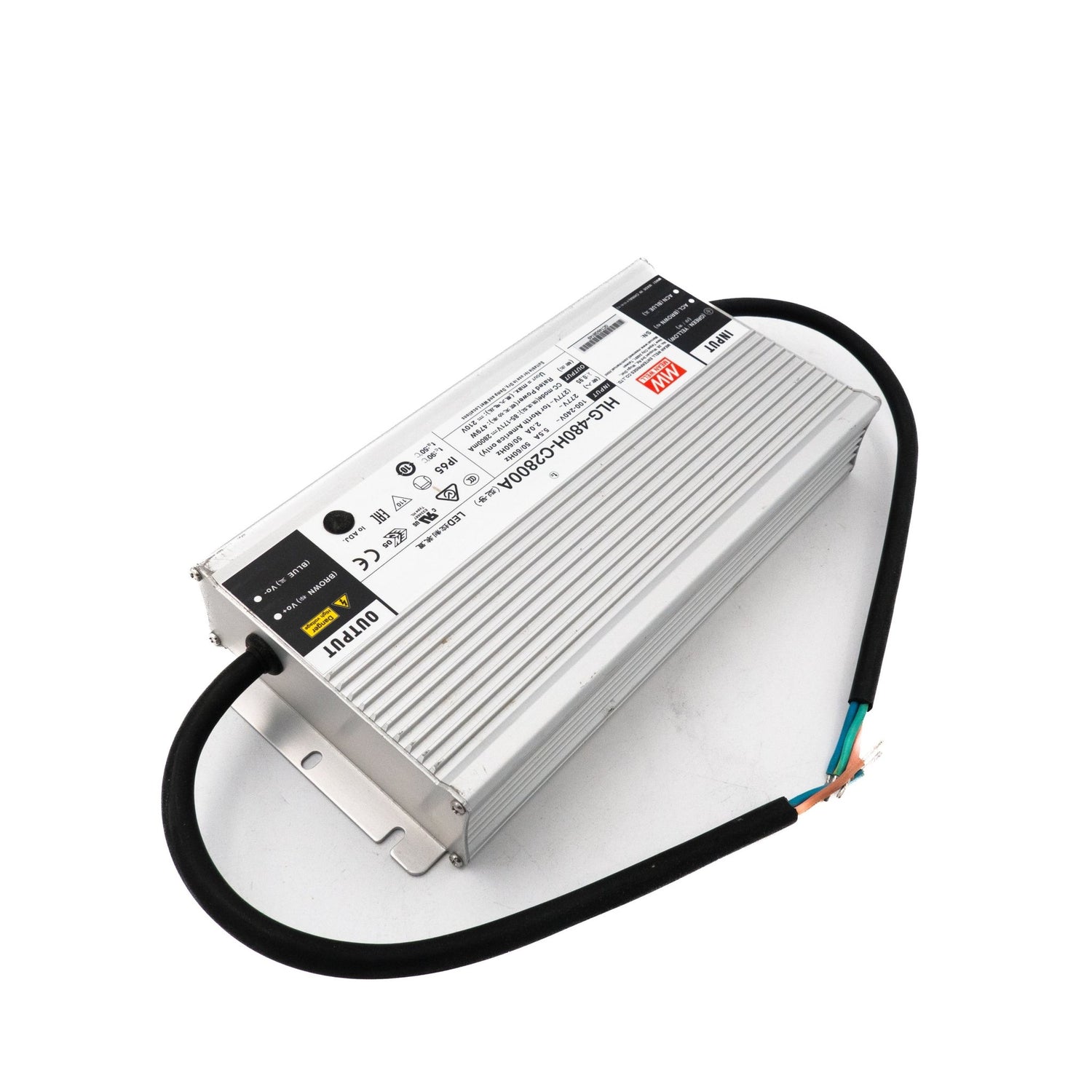

Mean Well HLG-480H-C2800A Power Supply 479W 2800mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-480H-C2800A Power Supply 479W 2800mA - Adjustable
Overview
HLG-480H-C2800A is the model of this series: rated current 2800mA, rated power 479W, typical efficiency 95%. Type A: Io adjustable through built-in potentiometer. And environment adaptiveness (IP65).
HLG-480H-C series is a 480W LED AC/DC driver featuring the constant current mode and high voltage output. HLG-480H-C operates from 90~305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreove, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HLG-480H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- Environment-adaptive driving capability
- IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; Low temperature light-on; Junction box
- Typical lifetime>62000 hours (Note.7)
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 2800mA
- RATED POWER
- 479W
- CONSTANT CURRENT REGIONNote.2
- 85 ~ 171V
- OPEN CIRCUIT VOLTAGE (max.)
- 210V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 700~1400mA 875~1750mA 1050~2100mA 1400~2800mA 1750~3500mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 500ms/115VAC,230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧40% /115VAC, 230VAC, 277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 95%
- AC CURRENT (Typ.)
- 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 215 ~ 246V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.02%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; IP65, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 262*125*43.8mm (L*W*H)
- PACKING
- 2.8Kg;4pcs/12.2Kg/0.55CUFT
Certifications & ratings
- Type
- HL
- IP level
- IP65 IP67
MODEL ENCODING
- A (this model)
- Io adjustable through built-in potentiometer. And environment adaptiveness; IP65
- B
- 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptiveness; IP67
- AB
- Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
- DX
- Built-in Smart timer dimming function by user request. And environment adaptiveness; IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED Harboure
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location
Downloads
Datasheet1
Certificates7
Test reports1
Catalogues1
FAQ
Can I use the HLG-480H-C2800A for high-power LED stadium or sports field floodlights?
Yes. The HLG-480H-C2800A delivers 479W at 2800mA constant current, providing enough power for high-output LED modules in professional sports lighting fixtures. The adjustable output (A suffix) lets you fine-tune the drive current via potentiometer to optimize luminaire efficiency. The IP65 rating suits protected outdoor equipment enclosures.
Is the HLG-480H-C2800A suitable for driving high-current LED grow light fixtures?
Yes. At 479W and 2800mA, this driver supplies substantial current for large horticultural LED arrays that require high drive currents per string. The built-in potentiometer allows current adjustment (1400-2800mA) to optimize light intensity for different crop requirements. The wide 90-305VAC input accommodates agricultural power infrastructure.
Can the HLG-480H-C2800A power LED modules in large industrial high-bay fixtures?
Yes. The 2800mA constant current output across 85-171V is well suited for high-bay LED modules that require higher drive currents. The adjustable output lets you match the current to your specific LED module's datasheet recommendation. The IP65 dust-proof and water-resistant rating handles demanding industrial environments.
What is the CC voltage range of the HLG-480H-C2800A and what does it mean for LED selection?
The constant current regulation range is 85-171V. Your series LED string's total forward voltage must fall within this range for the driver to deliver a steady 2800mA. Because the voltage range is lower than the 1400mA, 1750mA and 2100mA HLG-480H-C models (only the 3500mA model, at 68-137V, is lower), this variant suits shorter series strings of LEDs that require higher current.
How does the HLG-480H-C2800A compare to the C1400 and C2100 variants?
The HLG-480H-C series maintains approximately 480W across all variants but trades voltage range for current. The C1400 operates at 1400mA over 171-343V (longer LED strings, lower current). The C2100 runs at 2100mA over 114-229V. The C2800A drives 2800mA over 85-171V (shorter strings, higher current). Choose based on your LED module's current and voltage requirements.
Can the HLG-480H-C2800A be mounted outdoors in a sheltered equipment cabinet?
Yes. The IP65 rating protects against dust and low-pressure water jets, making it suitable for outdoor cabinets, covered mounting areas, and semi-exposed locations. The -40 to +90 degree Celsius case temperature (Tcase) range handles seasonal temperature extremes. Follow MEAN WELL's user manual for IP waterproof installation cautions.
