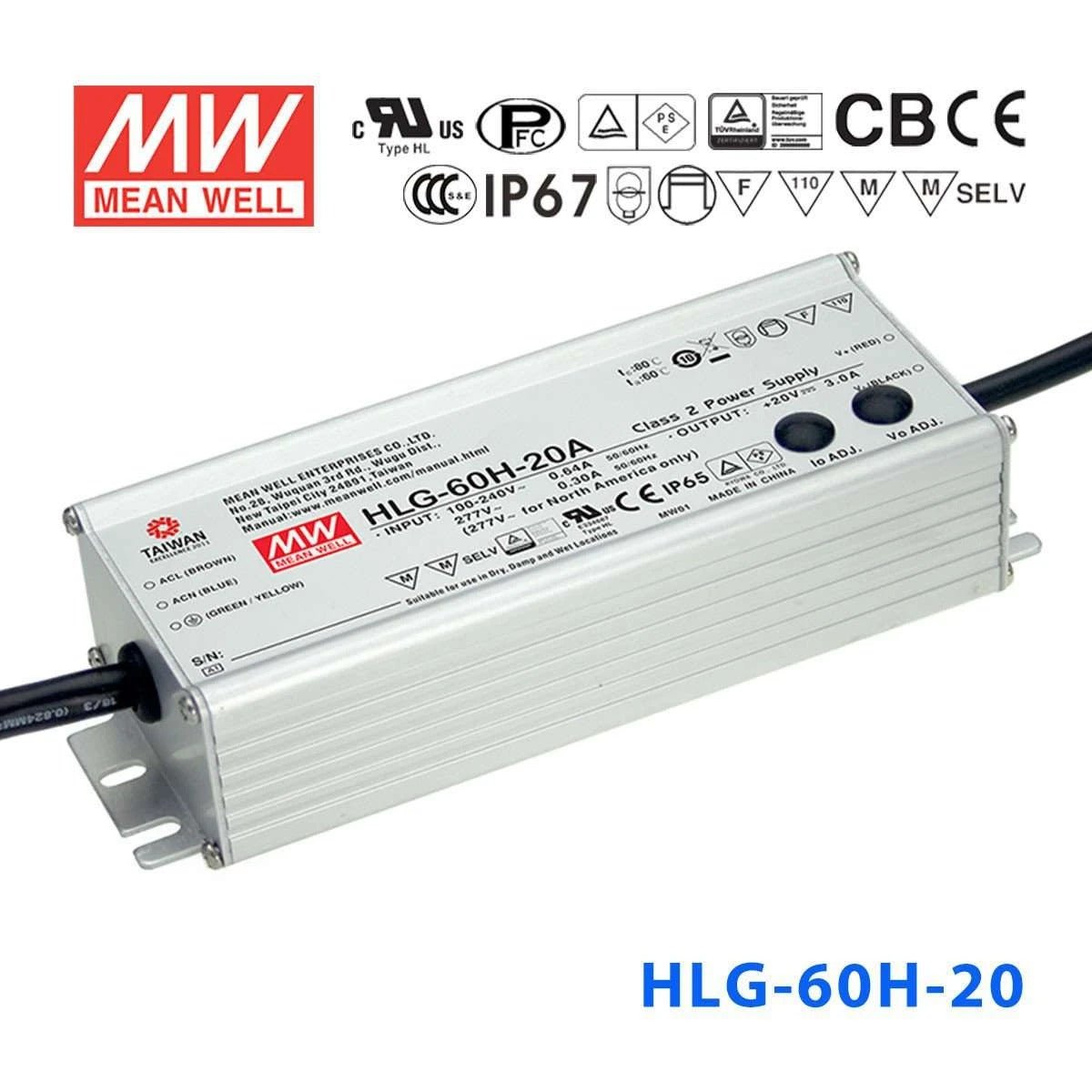

Mean Well HLG-60H-20 Power Supply 60W 20V 3A
5.0 (4 reviews)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-60H-20 Power Supply 60W 20V 3A
Overview
HLG-60H-20 is the 20V output model of this series: rated current 3A, rated power 60W, typical efficiency 89%. Type Blank: Io and Vo fixed (IP67).
HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP67 rating for indoor or outdoor installations
- Typical lifetime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 20V
- CONSTANT CURRENT REGIONNote.4
- 12 ~ 20V
- RATED CURRENT
- 3A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 500ms,80ms/115VAC 500ms,80ms/230VAC
- HOLD UP TIME (Typ.)
- 16ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENTNote.4
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 23 ~ 30V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13, IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020
OTHERS
- MTBF
- 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 171*61.5*36.8mm (L*W*H)
- PACKING
- 0.73Kg; 20pcs/15.6Kg/0.9CUFT
MODEL ENCODING
- Blank (this model)
- Io and Vo fixed; IP67
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
- AB
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

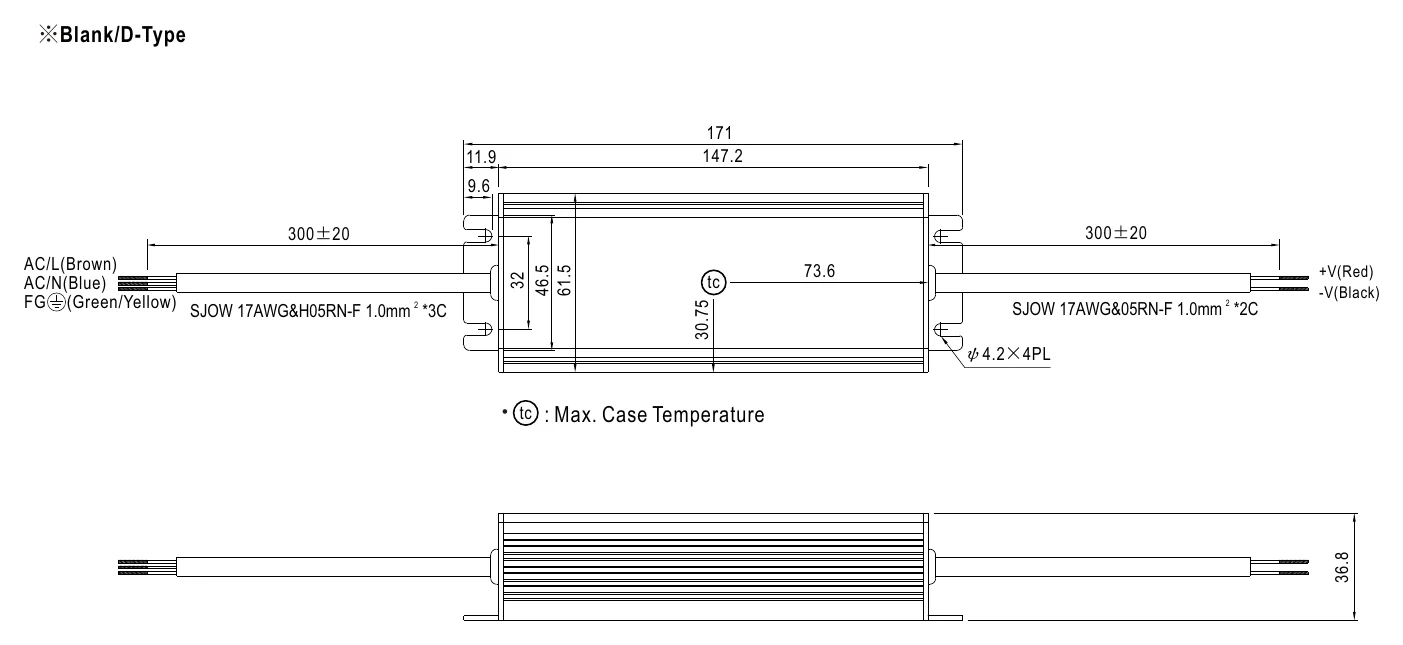

Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the HLG-60H-20 to power 20V LED strip lighting?
Yes. The HLG-60H-20 delivers 60W at 20V with up to 3A of output current, making it suitable for 20V LED strip runs in accent, cove, or architectural lighting. Its IP67 waterproof enclosure allows installation in damp or rain-exposed locations without a separate weatherproof housing.
Is the HLG-60H-20 a good option for powering 20V LED modules in a light box?
Yes. At 60W and 20V output it can reliably drive small to medium light-box signs that use 20V LED module strings. The compact 171 × 61.5 × 36.8 mm form factor fits inside most sign enclosures, and at only 0.73 kg it adds minimal weight to wall-mounted signage.
Can the HLG-60H-20 power 20V LED fixtures in an outdoor garden installation?
Yes. The IP67 waterproof rating means the driver can be mounted in an outdoor junction box exposed to rain and irrigation spray, with waterproof connectors on the cables. At 60W it suits a small cluster of 20V garden fixtures, though you should confirm the total load stays within the 60W limit.
How many meters of 20V LED strip can the HLG-60H-20 handle?
That depends on the strip's rated power per meter. The HLG-60H-20 provides up to 60W at 20V. For example, if your strip draws 10W/m, you could run up to 6 meters (60W / 10W per meter = 6m). Always check your strip's rated power per meter and keep the total load at or below 60W.
Can the HLG-60H-20 withstand direct rain and outdoor weather?
Yes. The IP67 waterproof rating protects against dust and water, so direct rain and sprinkler overspray are within its capability when waterproof connectors are fitted to the cables. The -40°C to +80°C case temperature (Tcase) range, with load derating at higher temperatures, handles most climates.
What are the differences between the HLG-60H-20, 20A, 20AB, and 20B models?
All four share the same 60W / 20V / 3A core specs. The base HLG-60H-20 has no output adjustment or dimming and is IP67 waterproof. The -20A adds a built-in potentiometer for voltage/current adjustment (IP65). The -20AB adds both adjustment and dimming input (IP65). The -20B adds dimming input only and retains IP67 waterproof rating.
