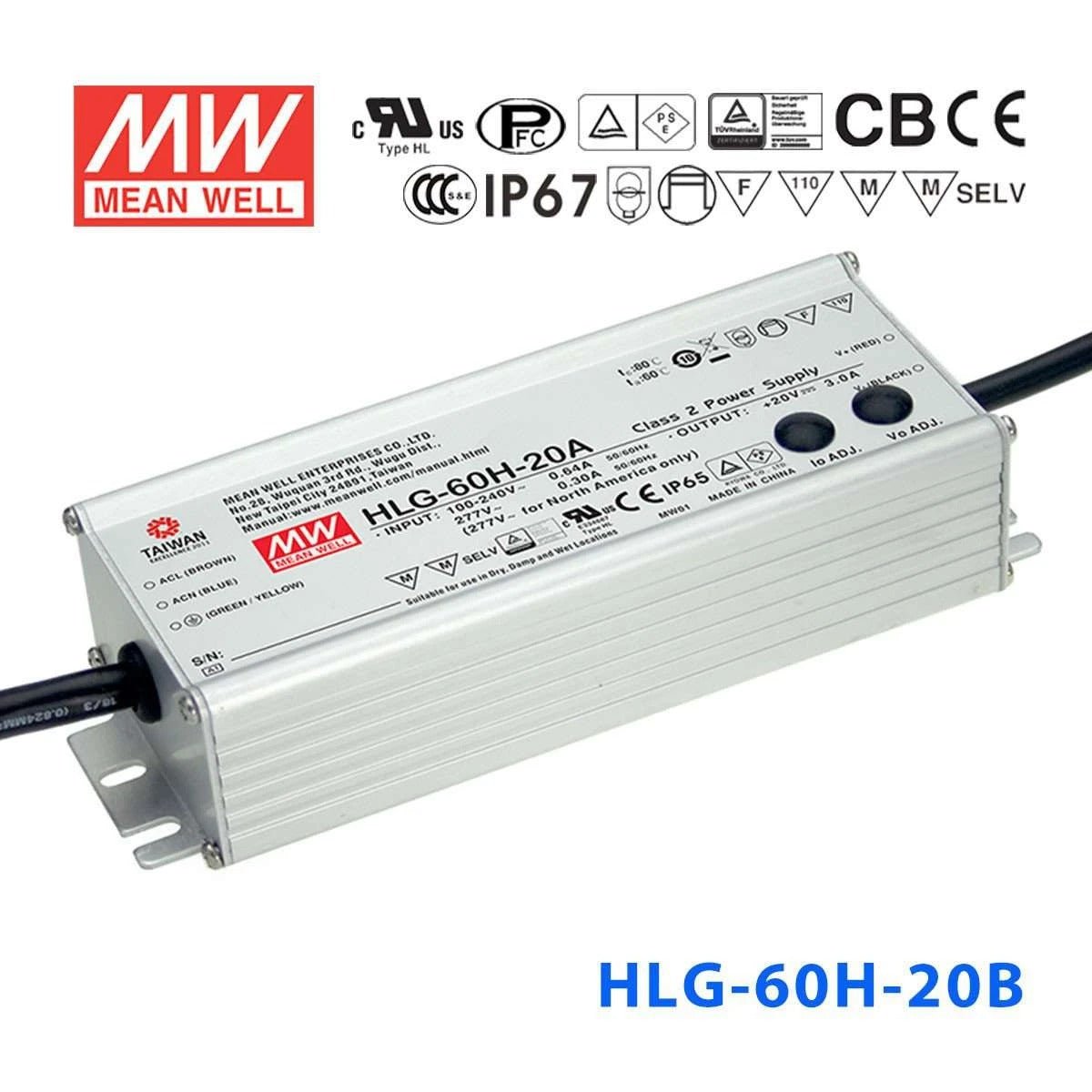

Mean Well HLG-60H-20B Power Supply 60W 20V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-20B with a PWM dimmer to control outdoor 20V LED strip lighting?
Yes. The HLG-60H-20B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating, making it ideal for outdoor 20V LED strips where you need both weather protection and brightness control. Its -40°C to +80°C operating range handles harsh temperature swings as well.
Is the HLG-60H-20B a good fit for dimmable 20V LED landscape lighting?
Yes. At 60W and 20V with IP67 waterproofing, the HLG-60H-20B is well suited for landscape path lights, garden fixtures, or deck lighting running on 20V. The dimming input lets you reduce brightness during late-night hours to save energy or reduce light pollution.
Can the HLG-60H-20B power 20V LED modules in an outdoor sign box?
Yes. The 60W output at 20V can drive 20V LED modules for small to mid-size sign boxes. Its IP67 rating means it can be mounted inside an outdoor enclosure or even directly exposed to rain. The dimming input allows brightness scheduling if connected to a timer or automation controller.
How many meters of 20V LED strip can the HLG-60H-20B handle?
The HLG-60H-20B delivers up to 60W at 20V. Divide 60 by your strip's wattage per meter to find the maximum run length. For instance, a strip rated at 12W/m would allow up to 5 meters (60W / 12W per meter = 5m). Always check your strip's rated power per meter before sizing.
Can the HLG-60H-20B be installed in a location exposed to direct rain or temporary flooding?
Yes. Its IP67 waterproof rating means the unit is protected against temporary submersion in water up to 1 meter. It can be mounted outdoors fully exposed to rain, in ground-level junction boxes, or other wet locations without additional weatherproofing.
