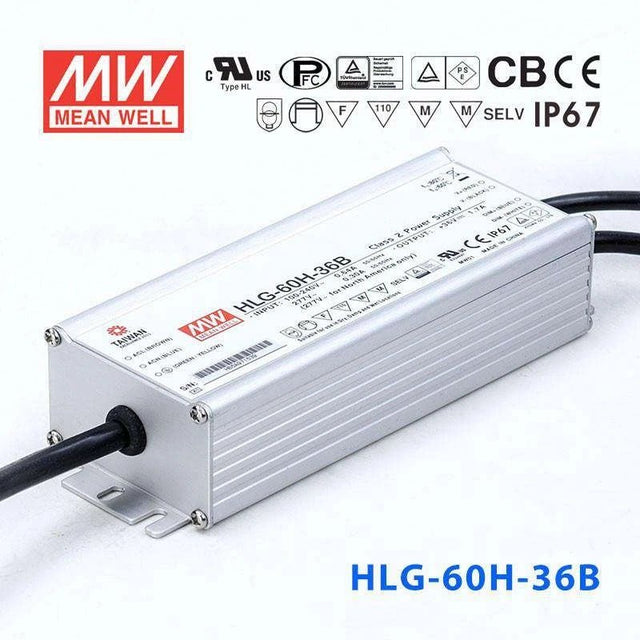

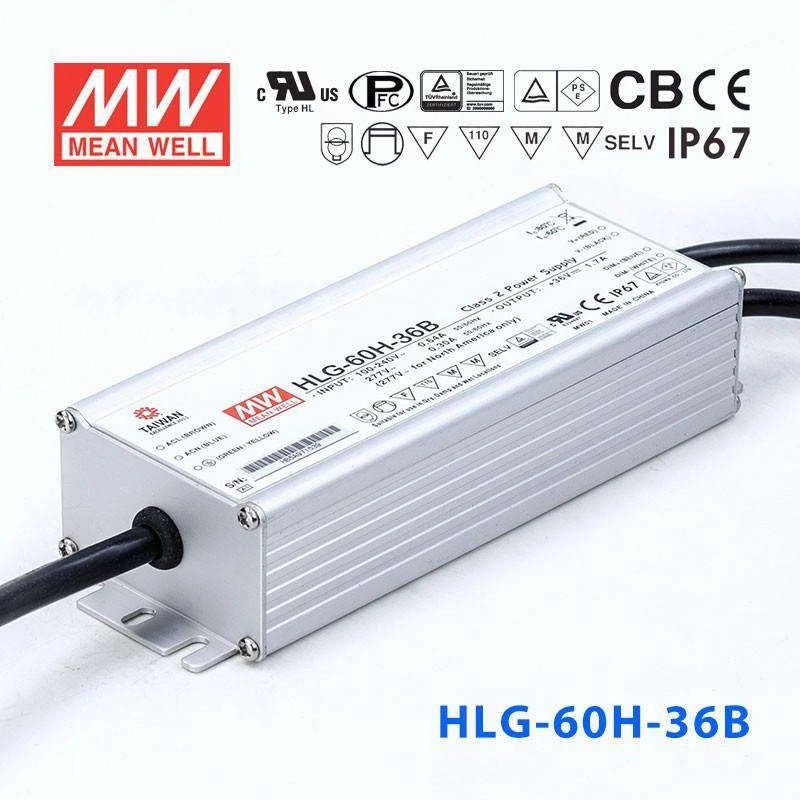

Mean Well HLG-60H-36B Power Supply 60W 36V - Dimmable
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-36B for dimmable 36V LED strip lighting in a fully outdoor environment?
Yes. The HLG-60H-36B delivers 60W at 36V with a 1-10V/PWM dimming input and an IP67 waterproof rating. It can handle direct rain, snow, and temporary submersion, making it ideal for exposed outdoor LED strip installations where dimming control is needed.
Is the HLG-60H-36B suitable for powering dimmable 36V LED bollard or pathway lights?
Yes. At 60W it can drive one or more 36V bollard fixtures within its power budget, and the dimming input allows brightness reduction for late-night energy savings. The IP67 rating and -40 to +80 degree Celsius range make it reliable for ground-level or in-ground installations year-round.
Can I use the HLG-60H-36B to drive 36V LED modules in an exposed outdoor sign?
Yes, as long as total module power stays within 60W. The HLG-60H-36B operates in constant-current mode with a CC range of 21-36V. Its IP67 rating handles rain and moisture typical of exterior signage, and the dimming input allows nighttime brightness reduction.
How many meters of 36V LED strip can the HLG-60H-36B handle?
Divide 60W by your strip's rated wattage per meter. For example, a 36V strip at 10W/m supports 6 meters (60W / 10W per meter = 6m). A high-density strip at 20W/m allows 3 meters. Always check your strip's rated power per meter and stay within the 60W limit.
Can the HLG-60H-36B be installed in a below-grade landscape lighting enclosure?
Yes. Its IP67 rating means it can survive temporary immersion in water up to 1 meter deep for 30 minutes, making it suitable for underground vaults or low-lying enclosures where water may pool. The -40 to +80 degree Celsius operating range also handles freezing ground conditions.
