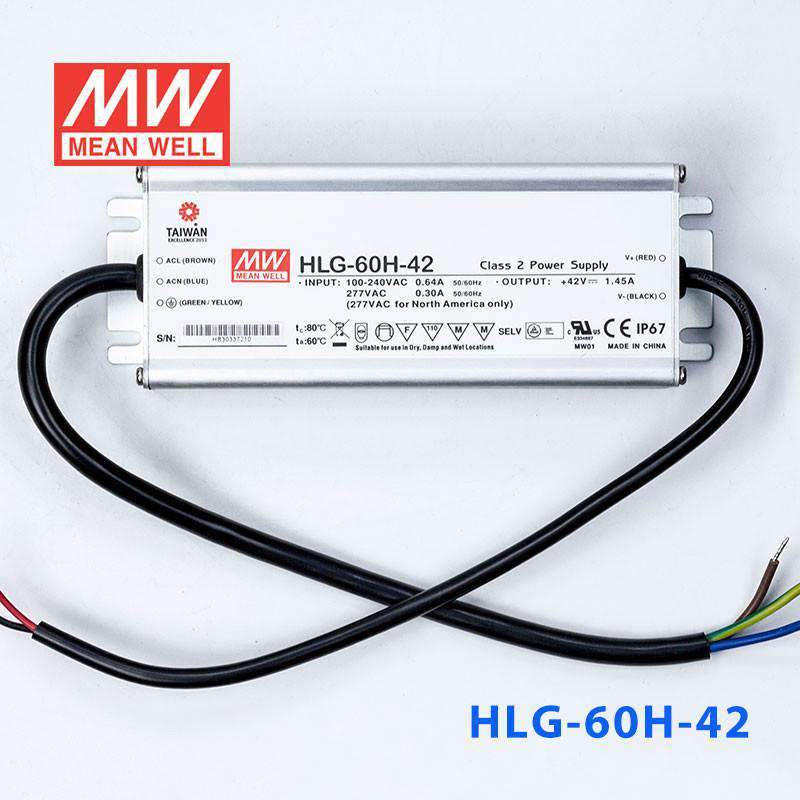

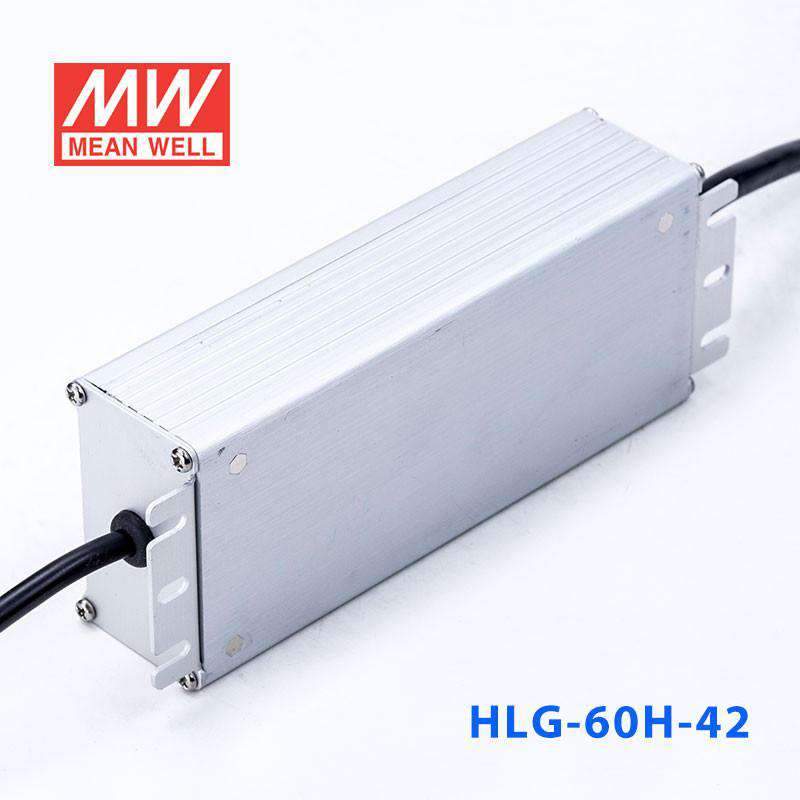

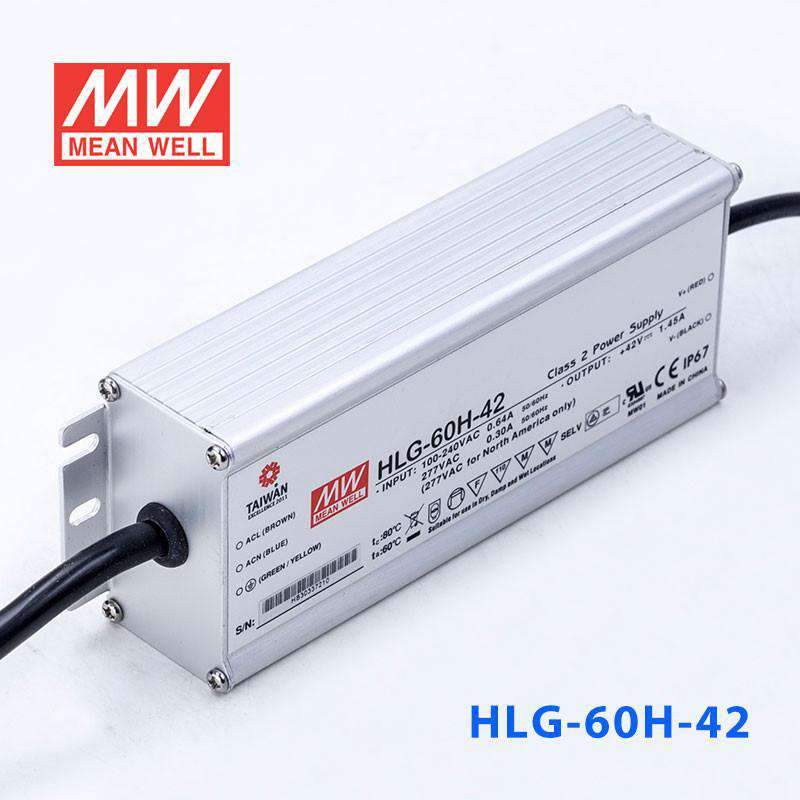

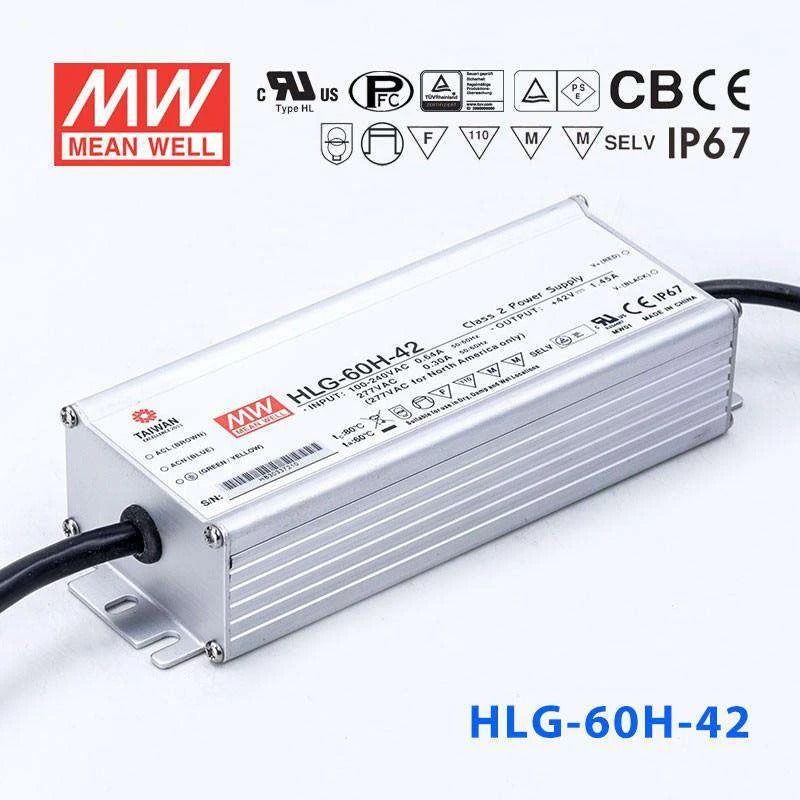

Mean Well HLG-60H-42 Power Supply 60W 42V

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 90.5%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Class 2 power unit

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details.

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 55A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	109%~145% rated output voltage
Setup, rise, hold up time	1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	171x 61.5x 36.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

60 Watt
Output Voltage

42 Volt
Rated Current

1.45 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

6.73 in
Width

2.42 in
Height

1.45 in
Weight

1.61 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-60H-42 to power 42V LED panels for outdoor area lighting?

Yes. The HLG-60H-42 outputs 42V at up to 1.45A (60W) with an IP67 waterproof rating, so it can be mounted in exposed outdoor locations. It suits small 42V LED panel fixtures or floodlights in parking areas, walkways, or building exteriors where a single 60W driver is sufficient.

Is the HLG-60H-42 suitable for driving 42V LED modules in a commercial light fixture?

Yes. It provides 60W at 42V in constant-current mode with a CC range of 25-42V. This accommodates LED modules whose forward voltage falls anywhere in that range. The fixed output makes it a straightforward choice for OEM fixtures or retrofit projects that do not require field adjustment.

Can I use the HLG-60H-42 to power 42V LED strips for outdoor signage backlighting?

Yes. At 60W and 42V with IP67 waterproofing, it handles outdoor signage environments. The constant-current operation with a 25-42V CC range ensures stable output even if the LED strip voltage varies slightly across its length due to thermal changes.

How many meters of 42V LED strip can the HLG-60H-42 power?

Divide 60W by your strip's rated power per meter. A 42V strip rated at 10W/m allows 6 meters (60W / 10W per meter = 6m). A strip at 15W/m allows 4 meters. Always verify your strip's actual rated power per meter and keep the total draw at or below 60W.

Can the HLG-60H-42 operate reliably in extreme cold, such as an unheated outdoor enclosure in winter?

Yes. It is rated for an operating temperature range of -40 to +80 degrees Celsius, so it starts and operates in deep-freeze conditions. The IP67 rating also protects against condensation and moisture that can form during rapid temperature swings in unheated enclosures.

What are the differences between the HLG-60H-42 and HLG-60H-42A?

Both deliver 60W at 42V / 1.45A with a CC range of 25-42V. The base HLG-60H-42 has fixed output and IP67 waterproofing. The HLG-60H-42A adds output voltage and current adjustment via built-in potentiometers but is rated IP65 instead. Choose the -42A when you need to fine-tune output, or the base -42 for maximum water protection.
