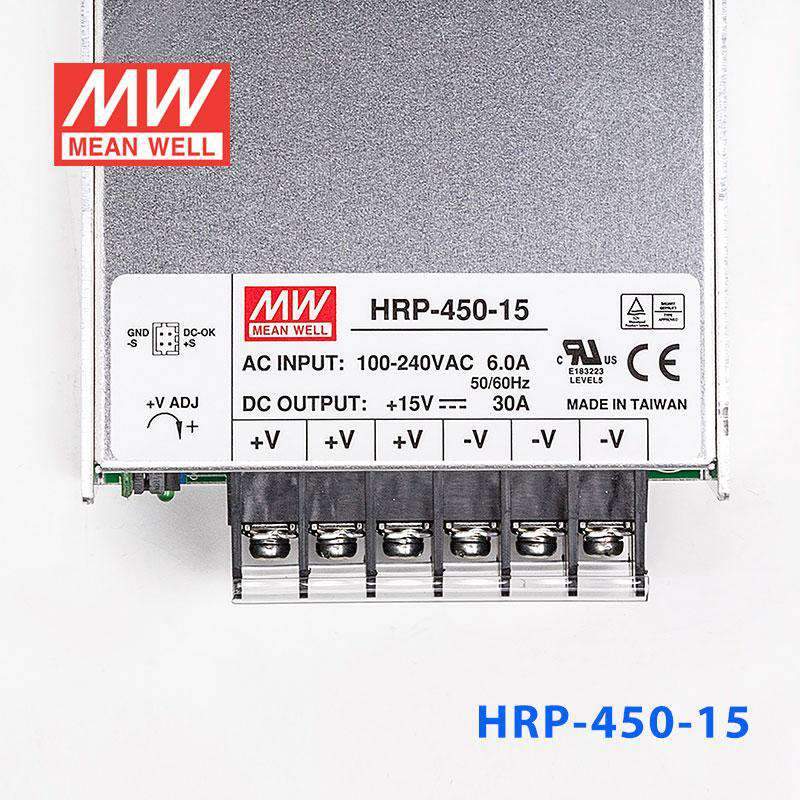

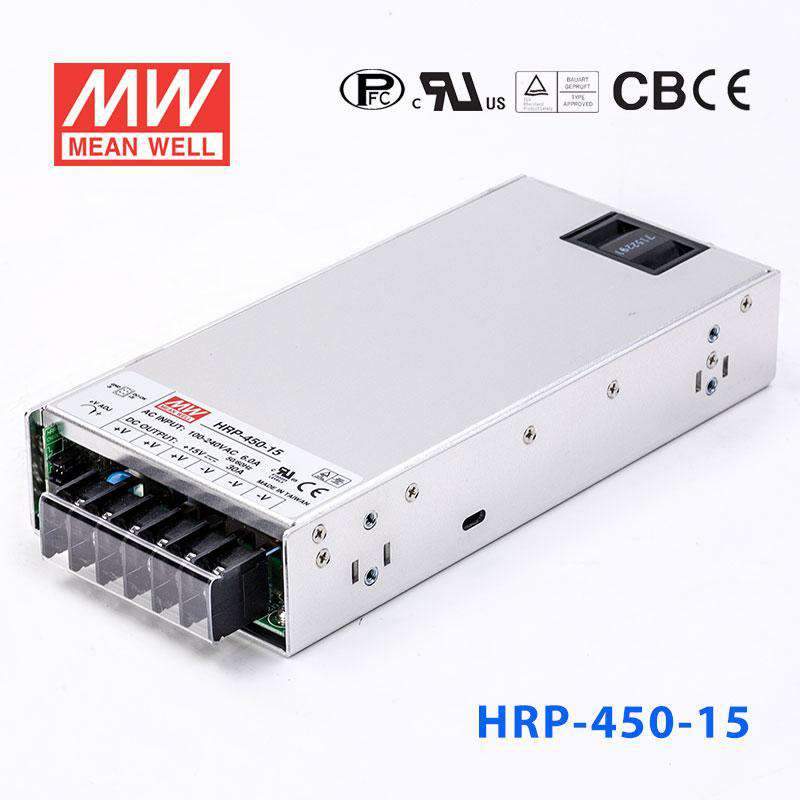

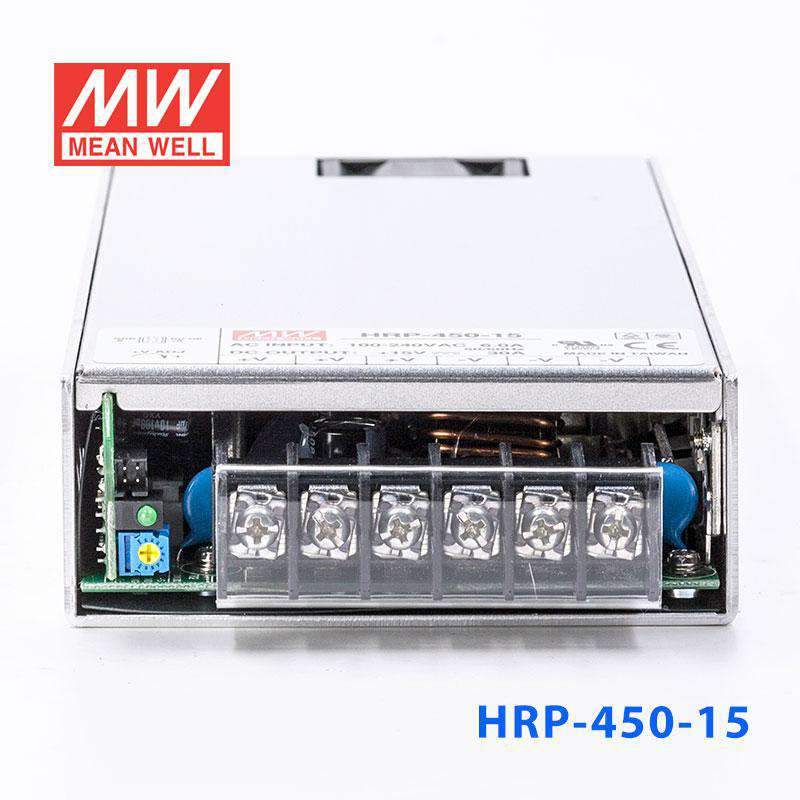

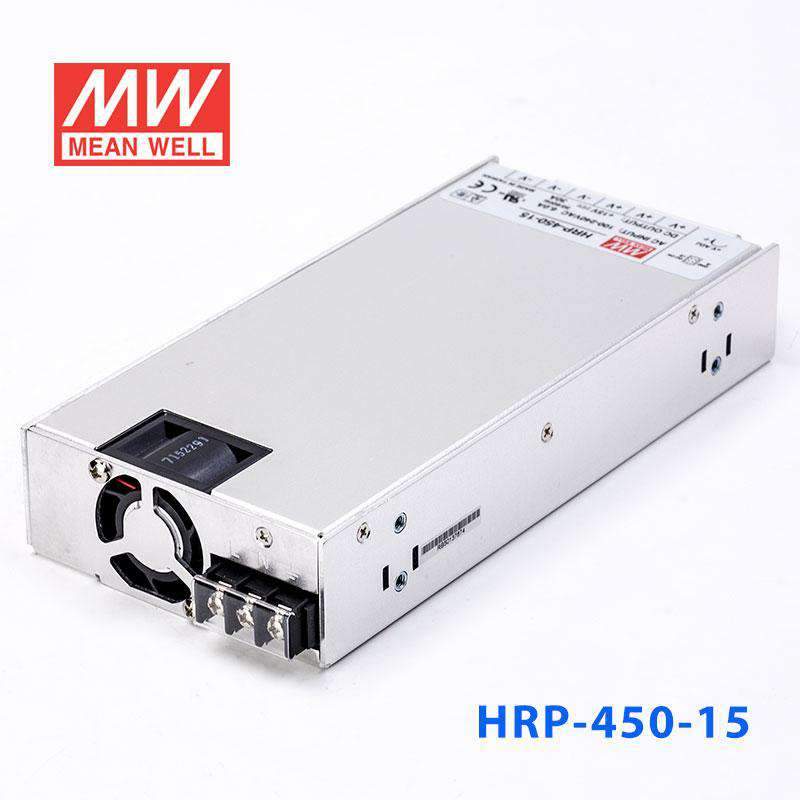

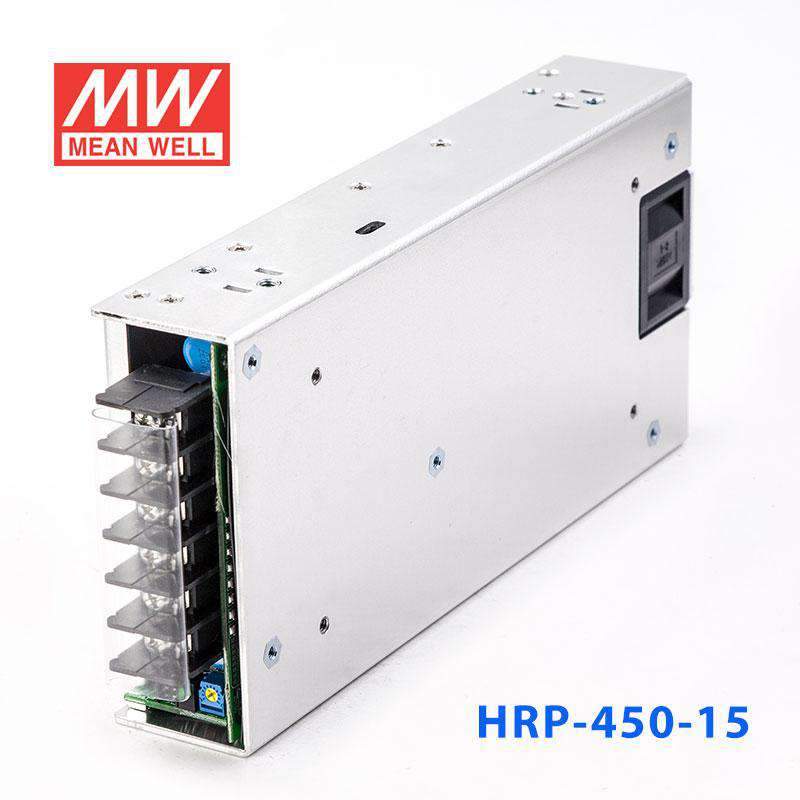

Mean Well HRP-450-15 Power Supply 450W 15V

built-in active PFC, high efficiency up to 90%, no load power consumption

SKU:

HRP-450-15

Model

75W 15V

$43.11 USD

SKU: HRP-75-15

100W 15V

$49.72 USD

SKU: HRP-100-15

150W 15V

$60.17 USD

SKU: HRP-150-15

200W 15V

$80.78 USD

SKU: HRP-200-15

300W 15V

$90.93 USD

SKU: HRP-300-15

450W 15V

$142.54 USD

SKU: HRP-450-15

600W 15V

$147.72 USD

SKU: HRP-600-15

Product variants

$142.54 USD ~~$150.05~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Built-in remote sense function

Forced air cooling by built-in DC fan

Built-in DC OK signal

1U low profile

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±15% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH)	218x105x41
Case No.	995A

Specifications

Brand

Mean Well
Series

HRP Series
Power Rating

450 Watt
Output Voltage

15 Volt
Rated Current

30 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

8.58 in
Width

4.13 in
Height

1.61 in
Weight

2.62 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HRP-450-15 for 15V industrial instrumentation or control electronics?

Yes, this supply delivers constant 15V output up to 30A and 450W, which fits 15V systems that require a fixed DC bus. Its 85-264VAC input range also supports installations with varying AC mains conditions.

Is the HRP-450-15 suitable for a 15V embedded development or validation bench?

It can be used where the bench equipment needs a constant 15V source and the combined draw stays within 450W and 30A. The unit is sized at 218.0 x 105.0 x 41.0 mm, which may matter in rack or cabinet layouts.

Can this power supply support 15V analog, measurement, or communications subsystems?

It is appropriate for 15V subsystems that require regulated constant-voltage output and do not exceed 30A or 450W. The model is intended for AC input from 85VAC to 264VAC, so it suits equipment that must run across a wide input range.

How does the HRP-450-15 compare with other 15V models in the HRP line?

The listed 15V siblings are HRP-75-15 at 75W and 5A, HRP-100-15 at 105W and 7A, HRP-150-15 at 150W and 10A, HRP-200-15 at 201W and 13.4A, HRP-300-15 at 330W and 22A, and HRP-600-15 at 645W and 43A. The HRP-450-15 sits between the 330W and 645W versions with 450W power and 30A current.

Can the HRP-450-15 be used in cold or hot industrial locations?

The specified operating range is -40°C to +70°C, so the temperature range is suitable for demanding indoor environments. The provided data does not include an IP rating, so the specs here do not establish outdoor or washdown suitability.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HRP-450-7.5 Power Supply 450W 7.5V	450W	7.5V	60A	Indoor	$150.04	View
Mean Well HRP-450-5 Power Supply 450W 5V	450W	5V	90A	Indoor	$150.04	View
Mean Well HRP-450-48 Power Supply 456W 48V	456W	48V	9.5A	Indoor	$150.05	View
Mean Well HRP-450-36 Power Supply 450W 36V	450W	36V	12.5A	Indoor	$142.31	View
Mean Well HRP-450-3.3 Power Supply 297W 3.3V	297W	3.3V	90A	Indoor	$150.04	View
Mean Well HRP-450-24 Power Supply 451.2W 24V	451.2W	24V	18.8A	Indoor	$142.51	View
Mean Well HRP-450-12 Power Supply 450W 12V	450W	12V	37.5A	Indoor	$151.25	View
