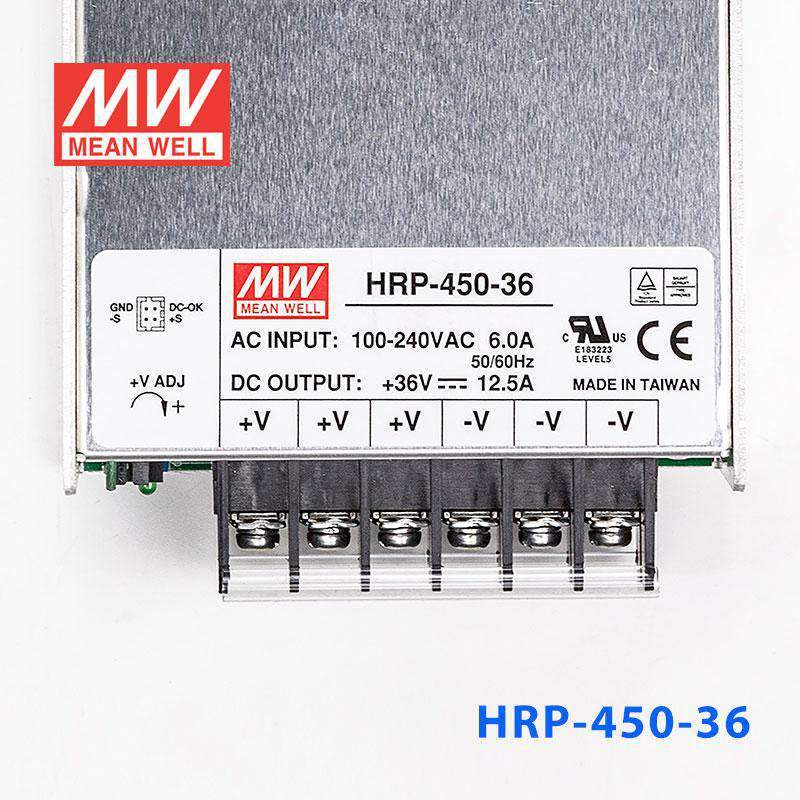

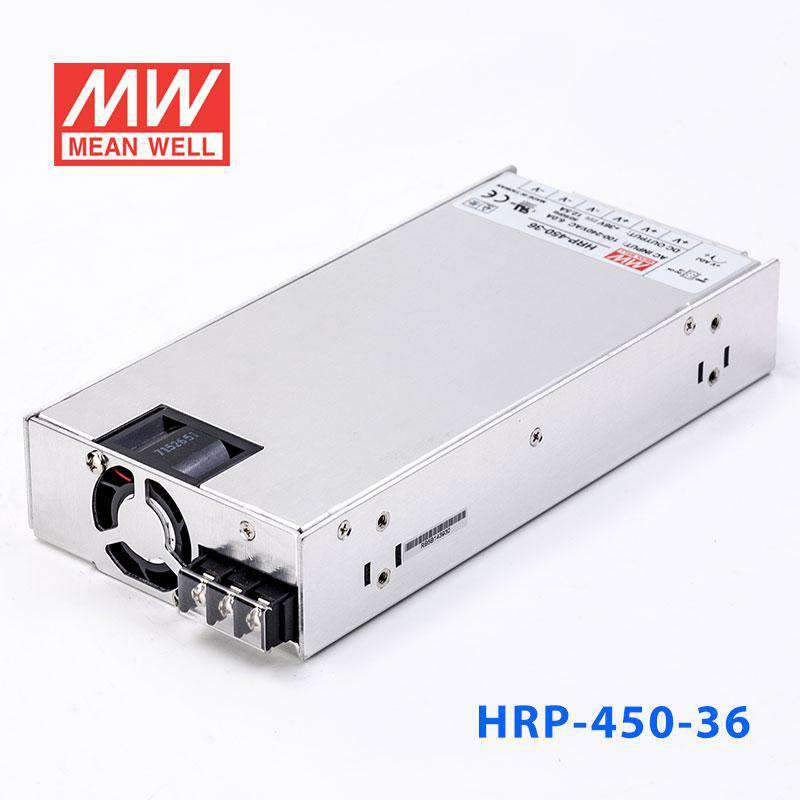

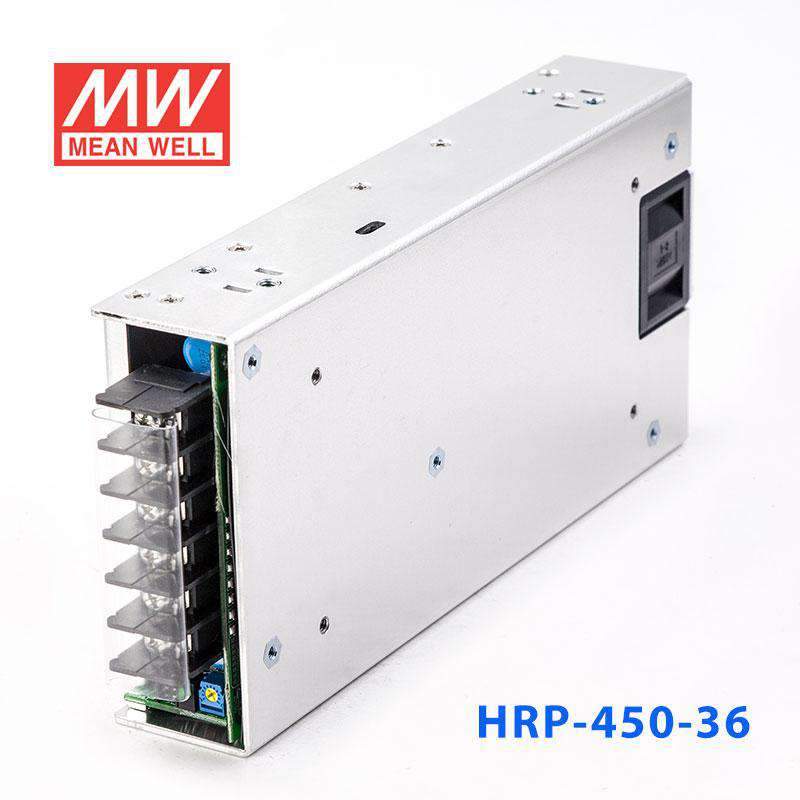

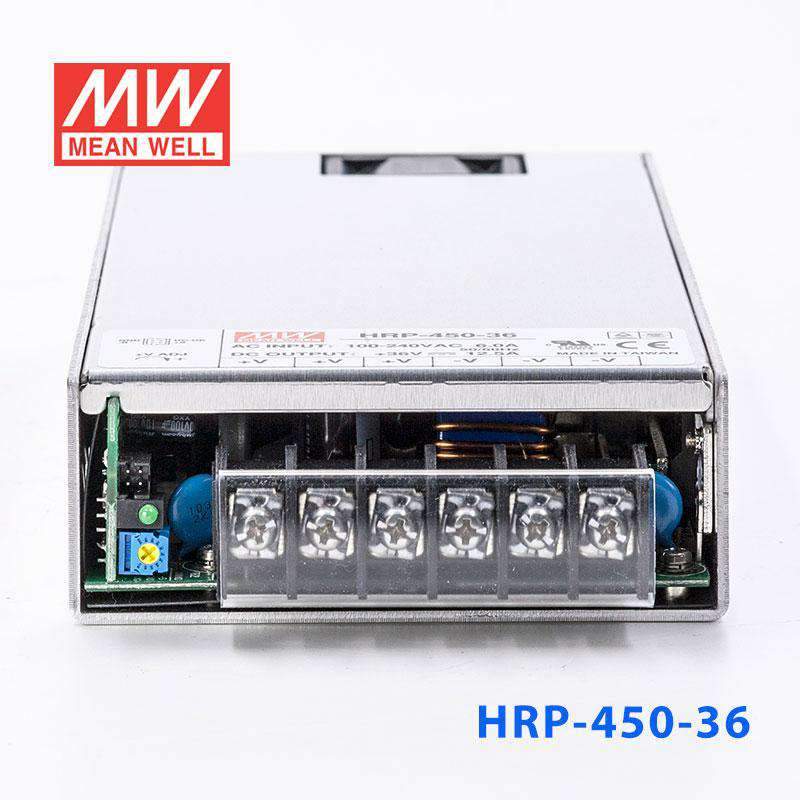

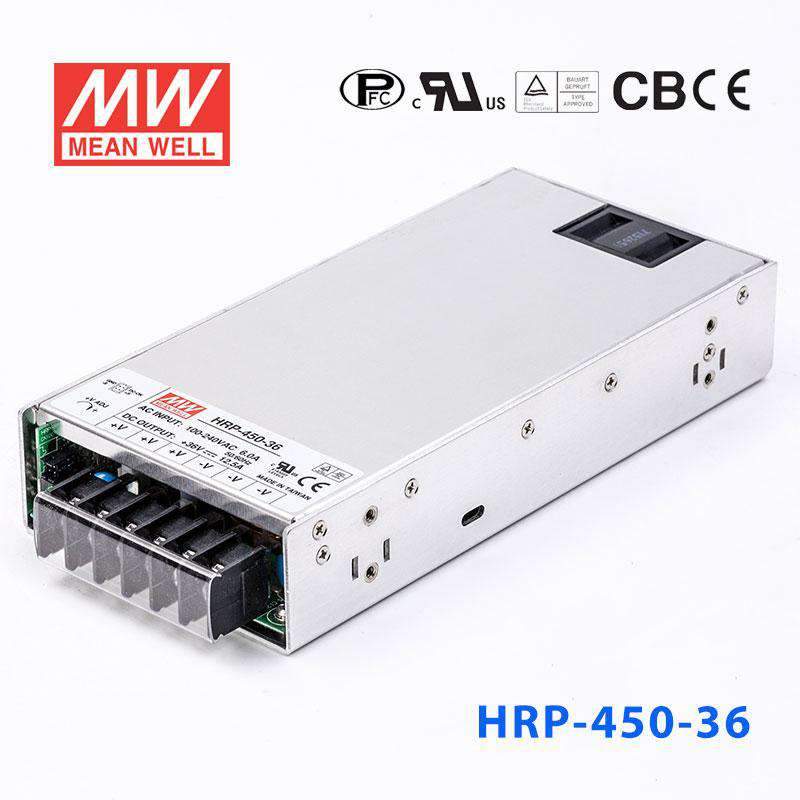

Mean Well HRP-450-36 Power Supply 450W 36V

built-in active PFC, high efficiency up to 90%, no load power consumption

SKU:

HRP-450-36

Model

75W 36V

$43.11 USD

SKU: HRP-75-36

100W 36V

$49.72 USD

SKU: HRP-100-36

150W 36V

$60.17 USD

SKU: HRP-150-36

200W 36V

$78.04 USD

SKU: HRP-200-36

300W 36V

$88.86 USD

SKU: HRP-300-36

450W 36V

$142.31 USD

SKU: HRP-450-36

600W 36V

$156.44 USD

SKU: HRP-600-36

Product variants

$142.31 USD ~~$150.04~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Built-in remote sense function

Forced air cooling by built-in DC fan

Built-in DC OK signal

1U low profile

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±15% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH)	218x105x41
Case No.	995A

Specifications

Brand

Mean Well
Series

HRP Series
Power Rating

450 Watt
Output Voltage

36 Volt
Rated Current

12.5 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

8.58 in
Width

4.13 in
Height

1.61 in
Weight

2.62 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HRP-450-36 for a 36V industrial automation system?

Yes, this model is a constant-voltage 36V power supply rated for 450W and 12.5A. That makes it appropriate for 36V automation loads that require a regulated 36V DC bus and stay within 12.5A total draw.

Is the HRP-450-36 suitable for 36V motors, actuators, or motion-control accessories?

It can be used for 36V DC equipment when the load expects constant-voltage input and the combined demand does not exceed 450W or 12.5A. Buyers should match it only to 36V hardware, since this unit does not provide 24V or 48V output.

Can this 36V power supply run a larger 36V embedded or test bench setup?

For centralized 36V DC bench or embedded power, the available 450W output gives more headroom than lower-power 36V models in the same series. It is often a better fit when a 36V system needs substantially more than 104.4W, 154.8W, 205.2W, or 324W.

Would the HRP-450-36 fit a 36V industrial control cabinet with wide AC input?

Yes, it accepts 85-264VAC input and delivers 36V DC in constant-voltage mode. That wide input range can simplify use across facilities with different AC mains while keeping the DC side at 36V and 12.5A maximum.

How does the HRP-450-36 compare with other 36V models in the HRP series?

In the provided sibling list, the 36V options are HRP-75-36 at 75.6W and 2.1A, HRP-100-36 at 104.4W and 2.9A, HRP-150-36 at 154.8W and 4.3A, HRP-150N-36 at 150W and 4.3A, HRP-150N3-36 at 150W and 4.3A, HRP-200-36 at 205.2W and 5.7A, HRP-300-36 at 324W and 9A, HRP-300N-36 at 300W and 9A, HRP-300N3-36 at 300W and 9A, HRP-450-36 at 450W and 12.5A, HRP-600-36 at 630W and 17.5A, HRP-600N-36 at 600W and 17.5A, and HRP-600N3-36 at 600W and 17.5A. The sibling list also includes HRP-1000N3-36, but its wattage and current are not provided in the supplied data.

Is the HRP-450-36 suitable for outdoor or harsh-temperature environments?

The operating temperature range is -40°C to +70°C, so it is specified for a wide temperature window. However, no IP rating is provided in the supplied specs, so indoor or outdoor exposure should be judged based on the enclosure used around the power supply rather than the unit alone.
