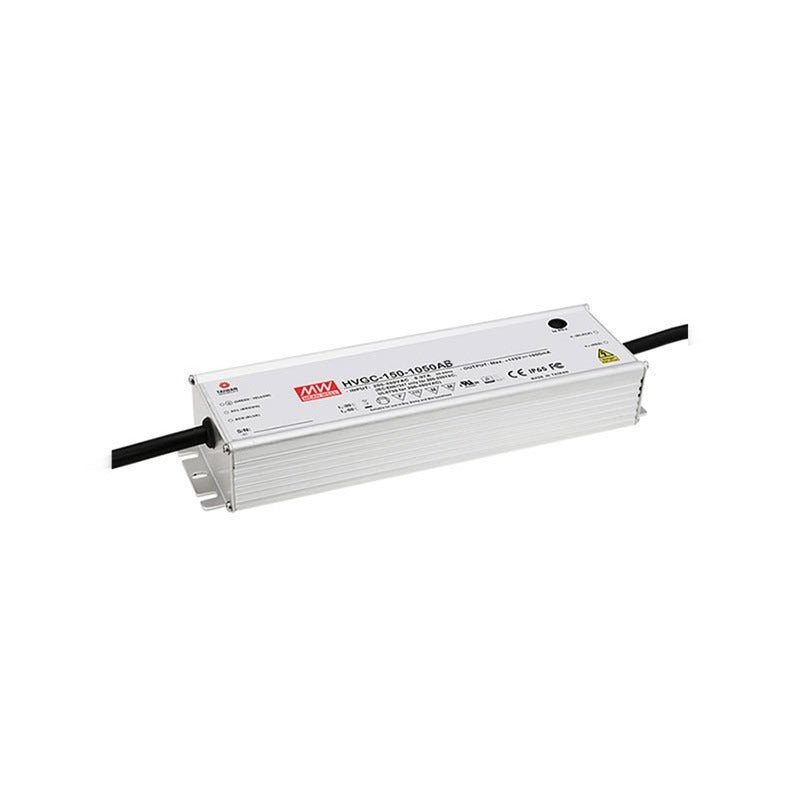

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVGC-150-350AB Power Supply 150W 350mA - Adjustable and Dimmable

Name: Mean Well HVGC-150-350AB Power Supply 150W 350mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-150-350AB
Price: 81.81 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-150-350AB

$81.81 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-150-350AB is the model of this series: rated current 350mA, rated power 149.8W, typical efficiency 91%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-150 operates from 180~528VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVGC-150-350ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 149.8W
CONSTANT CURRENT REGION^Note.2: 42 ~ 428V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 210 ~ 350mA
CURRENT RIPPLE^Note.5: 8.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230Vac 400ms / 347VAC,480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.5A / 347VAC 0.38A / 480VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 430 ~ 460V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. Current ripple is measured between 50%~100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-150-350AB Block Diagram — Block Diagram

HVGC-150-350AB DIMMING OPERATION — DIMMING OPERATION

HVGC-150-350AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-150-350AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-150-350AB ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVGC-150-350AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVGC-150-350AB datasheetHVGC-150-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates4

TUV Certificate(HVGC-150)(EN) PDF Download

EMC Certificate(HVGC-150)(EN) PDF Download

FCC Certificate(HVGC-150)(EN) PDF Download

CB Certificate(HVGC-150)(EN) PDF Download

Test reports1

Test Report(HVGC-150-350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-150-350AB with dimmable LED downlights?

Yes, if the downlight array is a constant current 350mA load and its total forward voltage stays within 42-428V. This model is not for constant voltage lighting products, so it should be paired only with constant current LED downlights.

Will this driver work for dimmable signage modules?

It can, provided the signage modules are designed for constant current operation at 350mA and the combined forward voltage remains within the 42-428V constant current range. Its 149.8W rating also makes it appropriate for higher-power constant current signage applications within that window.

Is the HVGC-150-350AB a good match for small dimmable LED arrays?

Yes, when the array is built for constant current drive at 350mA. Because the driver operates across 42-428V in constant current mode, it fits LED arrays whose total forward voltage lands within that range rather than fixed-voltage LED loads.

What should I check before pairing this driver with an LED module?

Check that the LED module is a constant current 350mA load and that its total forward voltage is within 42-428V. The number of LEDs depends on each LED forward voltage, so there is no single correct LED count for this driver.

Can this driver handle outdoor or industrial ambient conditions?

The HVGC-150 series is IP65 or IP67 approved and works at a case temperature (Tcase) of -40°C to +80°C, with output load derated at higher temperatures. Its wide 180-528VAC input suits demanding locations where those conditions apply; AB-type units need to be considered for built-in use to comply with UL8750 Type HL.
