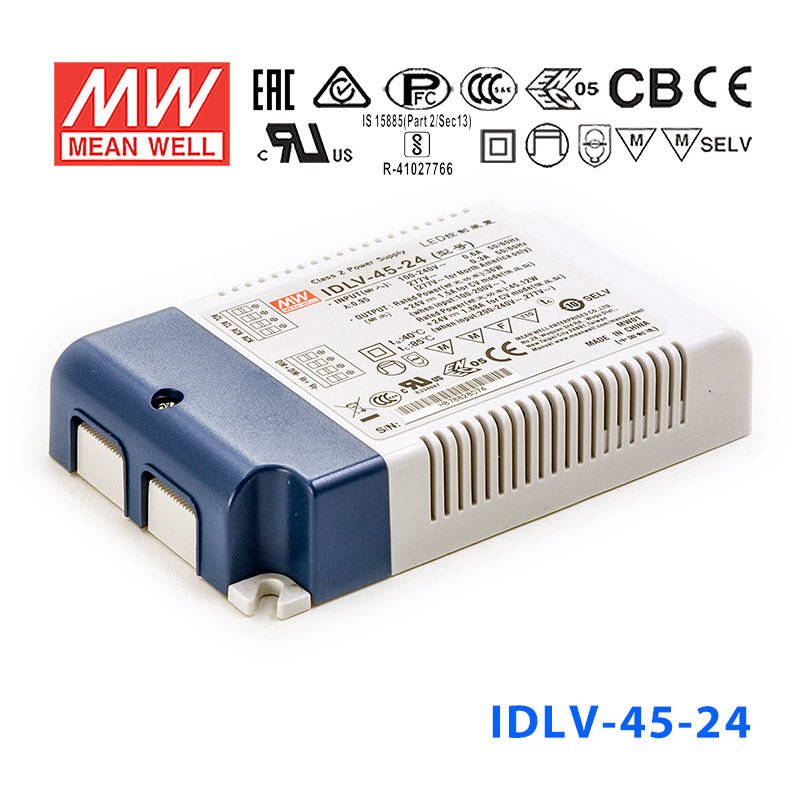

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well IDLV-45-24 Power Supply 45W 24V, Dimmable
$21.32 USD
Unit price /
Unavailable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | UL8750,CSA C22.2 NO.250.13-12; BS EN/EN 61347-1 & BS EN/EN 61347-2-13 independent, BS EN/EN62384,BIS IS15885(for IDLV-45-12,24,48 only), EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 120*75*25mm |
| Packing | 0.22Kg;54pcs/13Kg/ 0.93CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLV Series
-
Power Rating45.12 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.72 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.49 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IDLV-45 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IDLV-45-60 Power Supply 45W 60V, Dimmable | 45W | 60V | 0.75A | — | $22.37 | View |
| Mean Well IDLV-45-48 Power Supply 45W 48V, Dimmable | 45.12W | 48V | 0.94A | — | $22.37 | View |
| Mean Well IDLV-45-36 Power Supply 45W 36V, Dimmable | 45W | 36V | 1.25A | — | $21.32 | View |
| Mean Well IDLV-45-12 Power Supply 45W 12V, Dimmable | 36W | 12V | 3A | Indoor | $21.32 | View |
