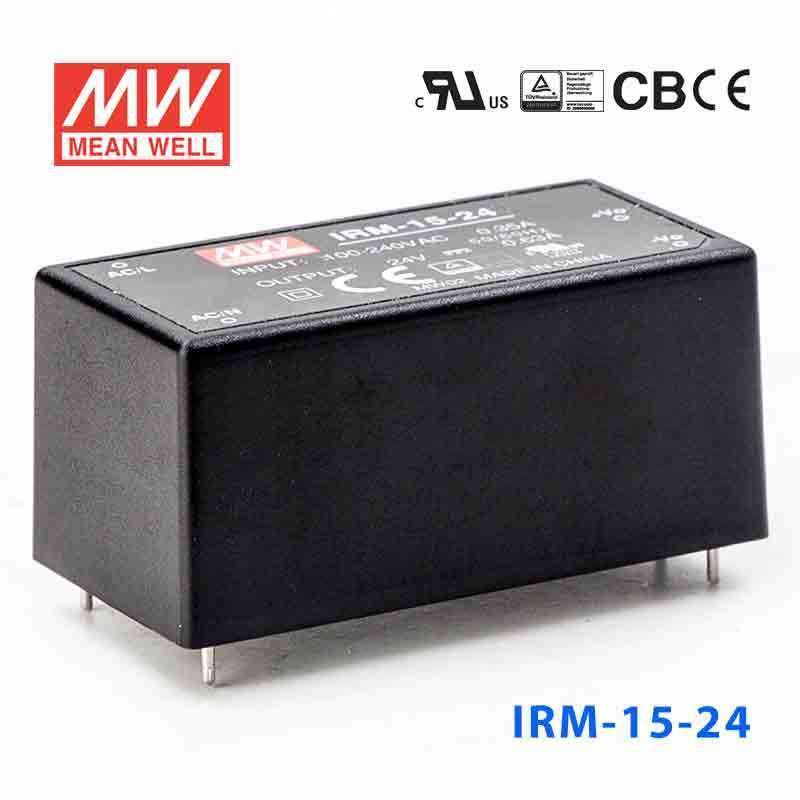

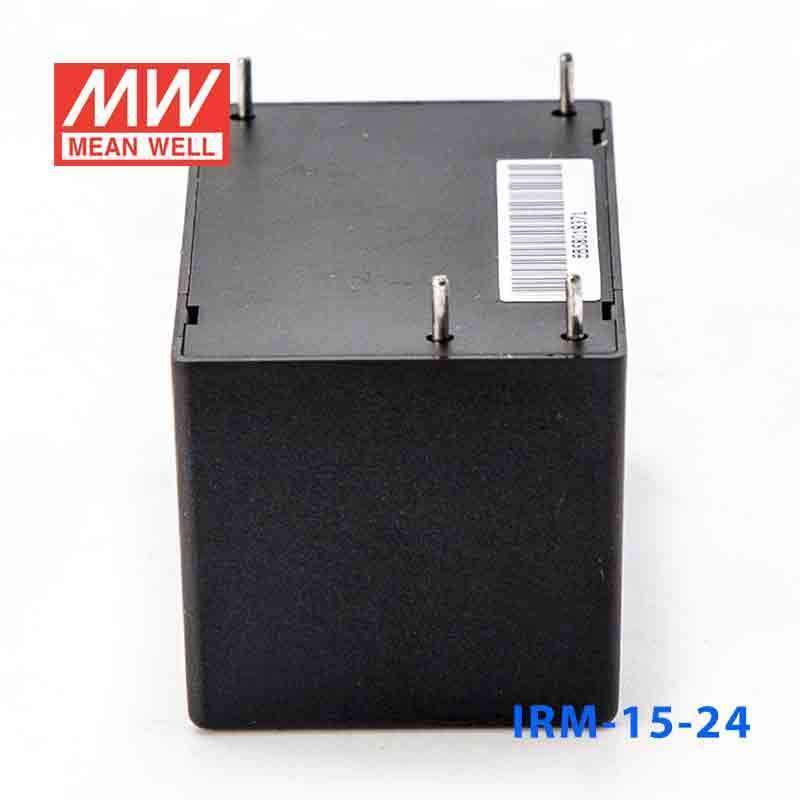

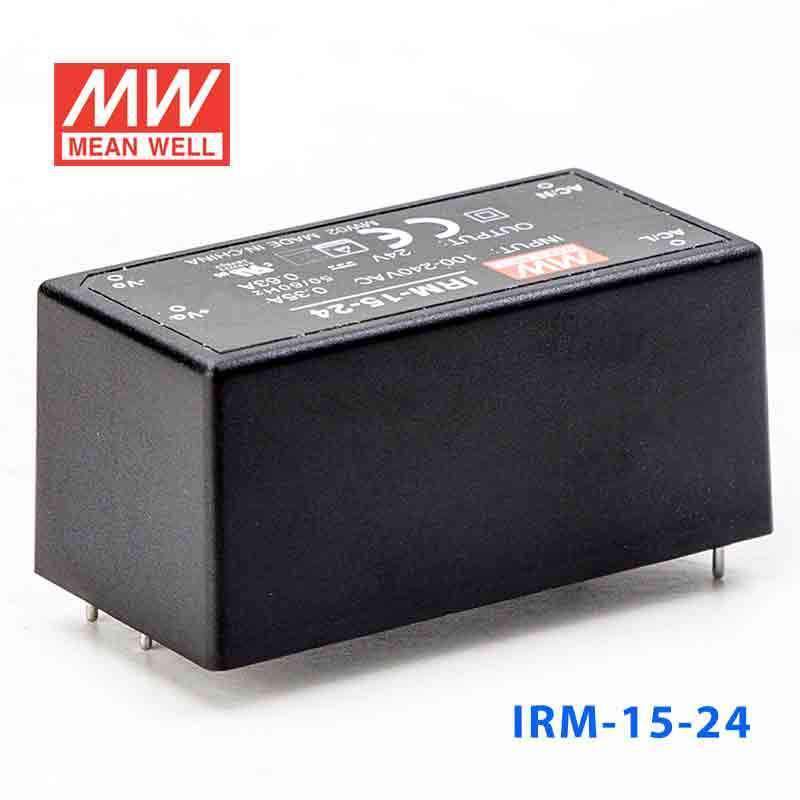

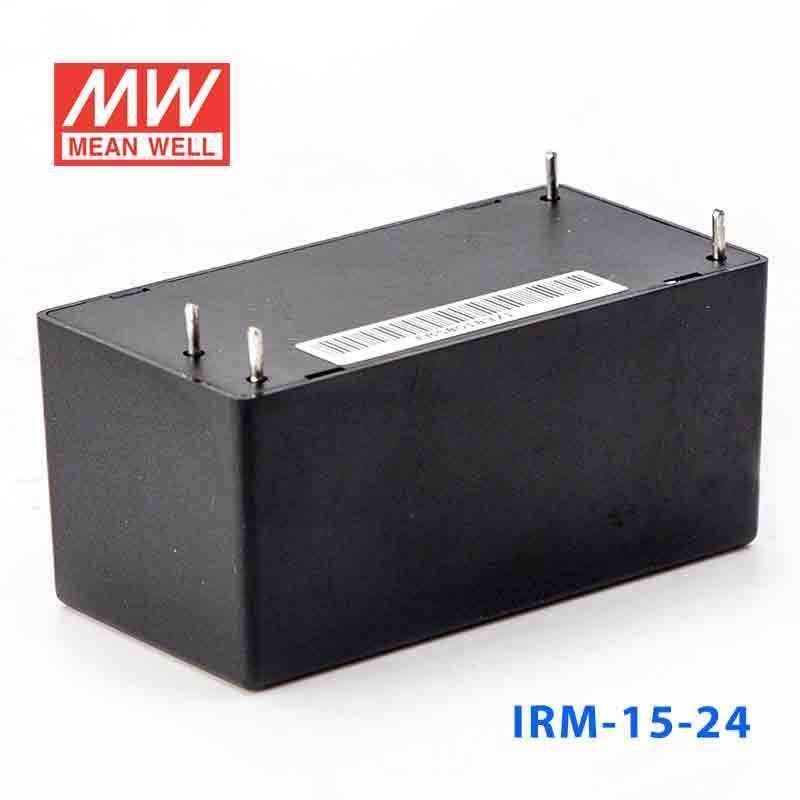

Mean Well IRM-15-24 Switching Power Supply 15.12W 24V 0.63A - Encap...
Overview
IRM-15-24 is the 24V output model of this series: rated current 0.63A, rated power 15.12W, typical efficiency 83%.
IRM-15 is a 15W miniature (52.4*27.2*24mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~ 305 Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 83% and the extremely low no-load power consumption below 0.1W, IRM-15 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Features
- 2.06''x1.07''compact size
- Universal input 85~305Vac
- No load power consumption<0.1W
- EMI Class B without additional components
- Wide operating temp. range -30~85℃
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class Ⅱ
- Over voltage category Ⅲ (OVC Ⅲ)
- Pass LPS
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.63A
- CURRENT RANGE
- 0 ~ 0.63A
- RATED POWER
- 15.12W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±0.3%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 20ms/230Vac 1000ms, 20ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 40ms/230Vac 10ms/115Vac at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 305Vac 120 ~ 430Vdc
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 83%
- AC CURRENT (Typ.)
- 0.35A/115Vac 0.2A/230Vac 0.17A/277Vac
- INRUSH CURRENT (Typ.)
- COLD START 20A/115Vac 40A/230Vac
- LEAKAGE CURRENT
- < 0.25mA/277Vac
PROTECTION
- OVERLOAD
- 115%~190% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
- OPERATING ALTITUDENote.4
- 2000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1,TUV BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
- OVER VOLTAGE CATEGORY
- IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅱ, altitude up to 2000m)
- WITHSTAND VOLTAGE
- I/P-O/P:4.2KVac
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032(CISPR32), CNS15936 Class B Radiated BS EN/EN55032(CISPR32), CNS15936 Class B Harmonic Current (Note 5) BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A Conducted BS EN/EN61000-4-6 Level 3, criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- MTBF
- 10656.2K hrs min. Telcordia SR-332 (Bellcore) ; 970.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 52.4*27.2*24mm (L*W*H)
- PACKING
- 0.05Kg/240pcs/13Kg/0.94CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Hand-held electronic device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
What are the main output specifications of the Mean Well IRM-15-24?
The IRM-15-24 is a 15.12W encapsulated AC-DC switching power supply with a 24V DC output. Its rated output current is 0.63A, making it suitable for low-power industrial and embedded applications that require a regulated 24V supply.
What input voltage range does the IRM-15-24 support?
This model accepts a universal AC input range of 85 to 305VAC and also supports 120 to 430VDC input. That wide range makes it useful for equipment intended for different regional mains standards without requiring a different power supply model.
Is the IRM-15-24 suitable for compact PCB-based equipment?

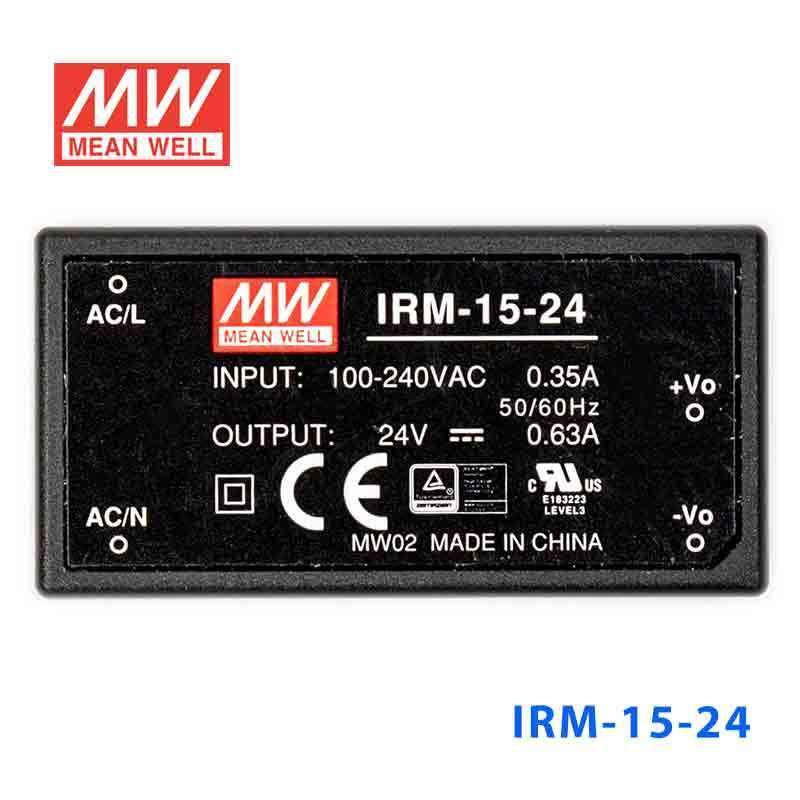

Yes, the IRM-15-24 is designed as a compact encapsulated PCB-mount power module with four pins (AC/L, AC/N, +V, -V) and a small 52.4 x 27.2 x 24 mm body. Its miniature size makes it a practical choice for space-constrained PCB power designs.
What protection features are included in the Mean Well IRM-15-24?
The IRM-15-24 includes short circuit, overload, and over voltage protection. Its overload protection is specified at 115% to 190%, and over voltage protection is rated at 115% to 135% of the rated output voltage.
Can the IRM-15-24 be used in demanding temperature environments?
This model has a working temperature range of -30°C to +85°C, subject to the output derating curve. That gives it flexibility for use in a wide range of industrial and enclosed equipment environments where temperature tolerance matters.
What certifications and reliability features does the IRM-15-24 have?
The IRM-15-24 is approved to UL62368-1, TUV BS EN/EN62368-1 and IEC61558-1/-2-16 safety standards and meets EMC standards including EN55032 Class B. It also features a 94V-0 flame-retardant plastic case, isolation class II construction, 5G vibration resistance, and a 3-year warranty.
