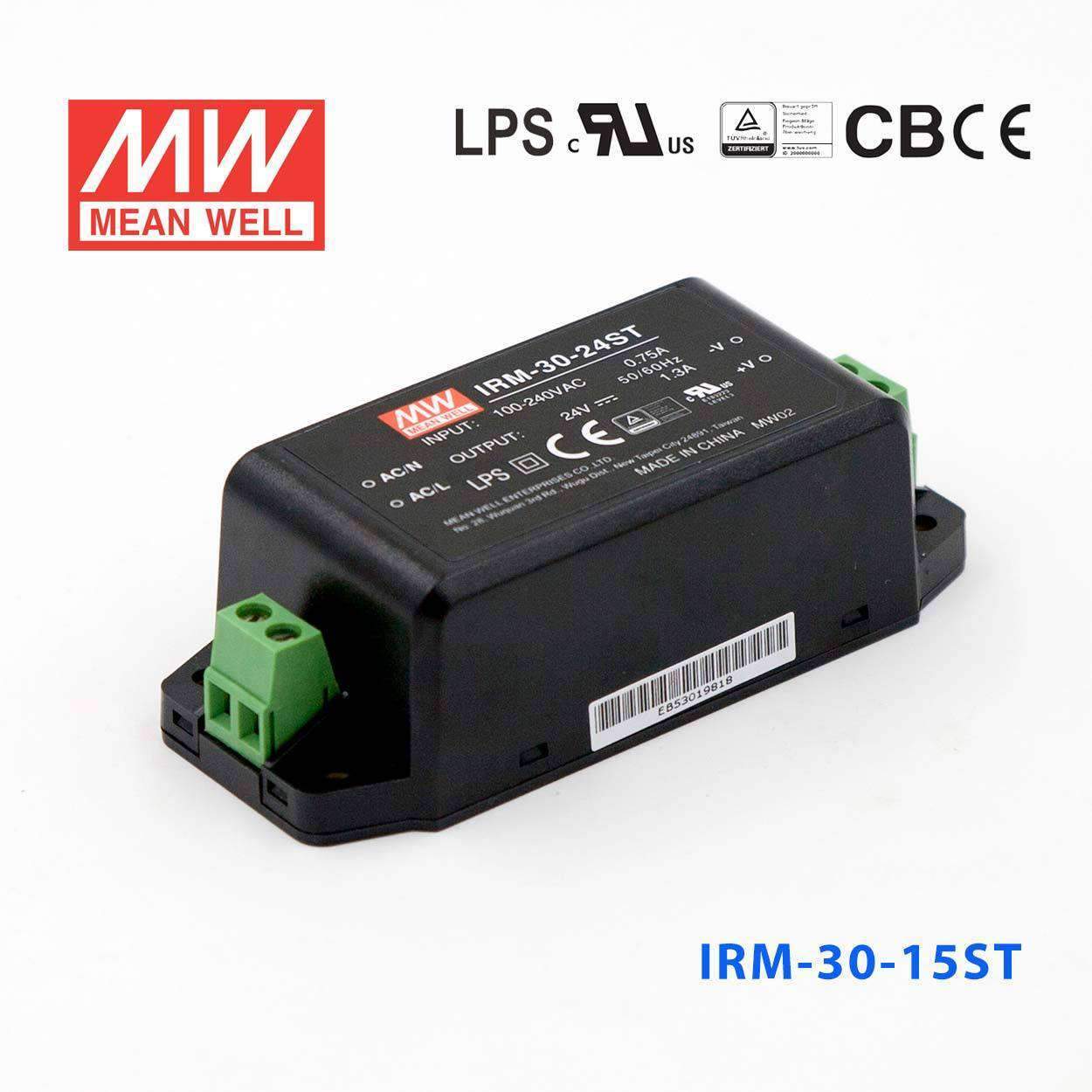

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well IRM-30-15ST Switching Power Supply 3W 15V 2A - Encapsulated

Q: Can I use the IRM-30-15ST for a 15V PLC accessory, controller, or embedded automation board?

Yes, it provides a constant 15V output with up to 2A and 30W. That makes it suitable for 15V PLC accessories, embedded control boards, and other compact automation electronics that stay within those output limits.

Q: Is this power supply a fit for 15V industrial sensors, signal conditioners, or test modules?

It can be used for 15V sensors, signal conditioners, and test modules when the total demand remains within 2A and 30W. The 85-305VAC input range is also useful for equipment deployed across different AC mains conditions.

Q: Can the IRM-30-15ST support a compact 15V HMI or operator interface assembly?

It can support a compact 15V HMI or similar interface hardware if the load is within the 15V, 2A, and 30W rating. Its miniature encapsulated construction and 91.0 × 39.5 × 28.5 mm dimensions make it suitable where enclosure space is limited.

Q: Is the IRM-30-15ST intended for equipment that uses a screw terminal style power module?

Yes, this ST version is the screw terminal style model and delivers 15V constant voltage at up to 2A. It is intended for compact industrial, IT, or embedded equipment that needs a 30W encapsulated AC-DC supply.

Q: What are the main output choices around the IRM-30-15ST in the IRM-30 series?

The directly comparable IRM-30 models are IRM-30-5 and IRM-30-5ST at 30W, 5V, 6A; IRM-30-12 and IRM-30-12ST at 30W, 12V, 2.5A; IRM-30-15 and IRM-30-15ST at 30W, 15V, 2A; IRM-30-24 and IRM-30-24ST at 31.2W, 24V, 1.3A; and IRM-30-48 and IRM-30-48ST at 30.2W, 48V, 0.63A. This model is the 15V, 2A, 30W screw terminal style option in that group.

Q: Is the IRM-30-15ST suitable for outdoor equipment or wide-temperature locations?

It is rated for operation from -30°C to +70°C, so it can handle a broad equipment temperature range. No IP rating is listed, so it should be used inside a protective enclosure for indoor or shielded applications rather than exposed outdoor use.

miniature encapsulated type, screw terminal style

SKU:

IRM-30-15ST

$16.37 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

No load power consumption < 0.1W

Protections: Short circuit / Overload / Over voltage

Miniature size, high power density

Cooling by free air convection

Isolation class II

Fully isolated plastic case

Withstand 5G vibration test

Low cost, high reliability

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 25A at 115VAC, 45A at 230VAC
Setup, rise, hold up time	1000ms, 30ms, 40ms
Overload protection	105%~160%
Over voltage protection	105%~135%
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Leakage current	Less than 0.75mA at 240VAC
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	4 industrial pins
Dimension (LxWxH)	52.4x 27.2x 24
Vibration	PCB mounting: 69.5x 39x 24; Screw I/O: 91x 39.5x 28.5

Specifications

Brand

Mean Well
Series

IRM Series
Power Rating

30 Watt
Output Voltage

15 Volt
Rated Current

2 Ampere
Input Voltage

85V~305V
No of Output

1
Dimming Control

None
Standards Met

BSMI,CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

3.58 in
Width

1.56 in
Height

1.12 in
Weight

0.25 lb

File Downloads

::specification::
