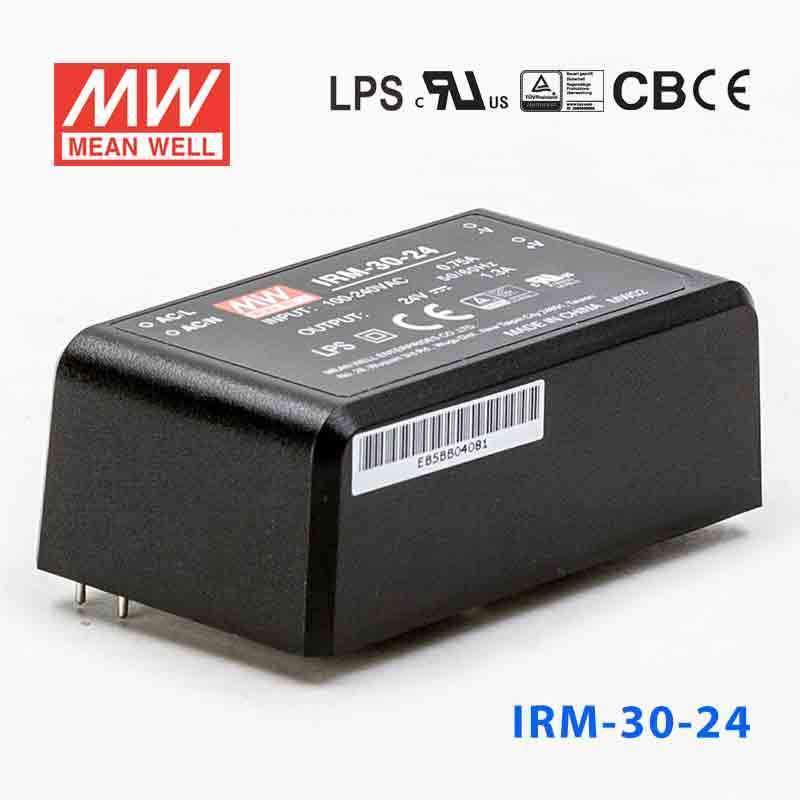

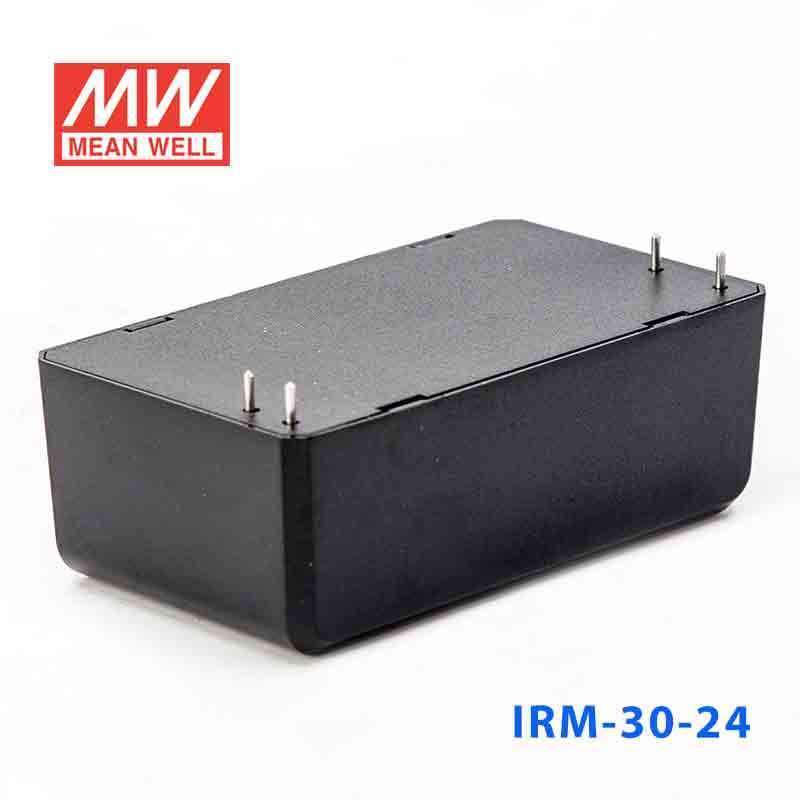

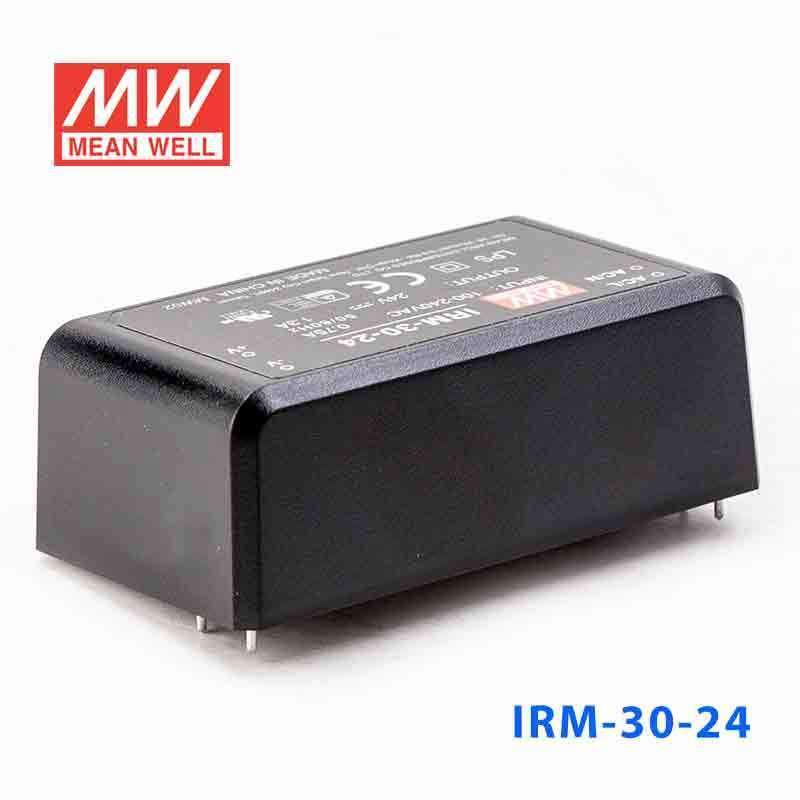

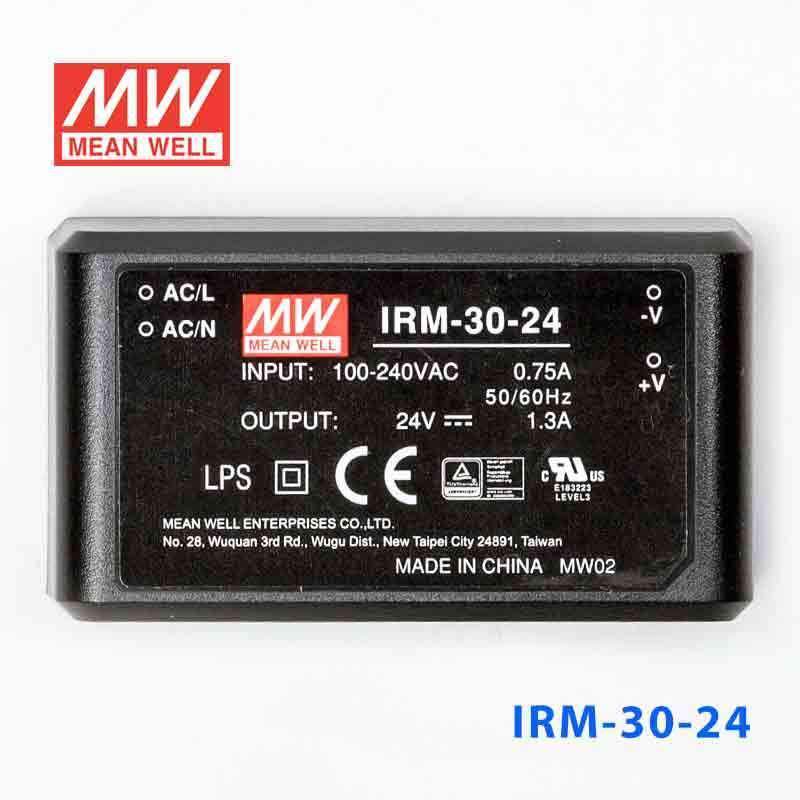

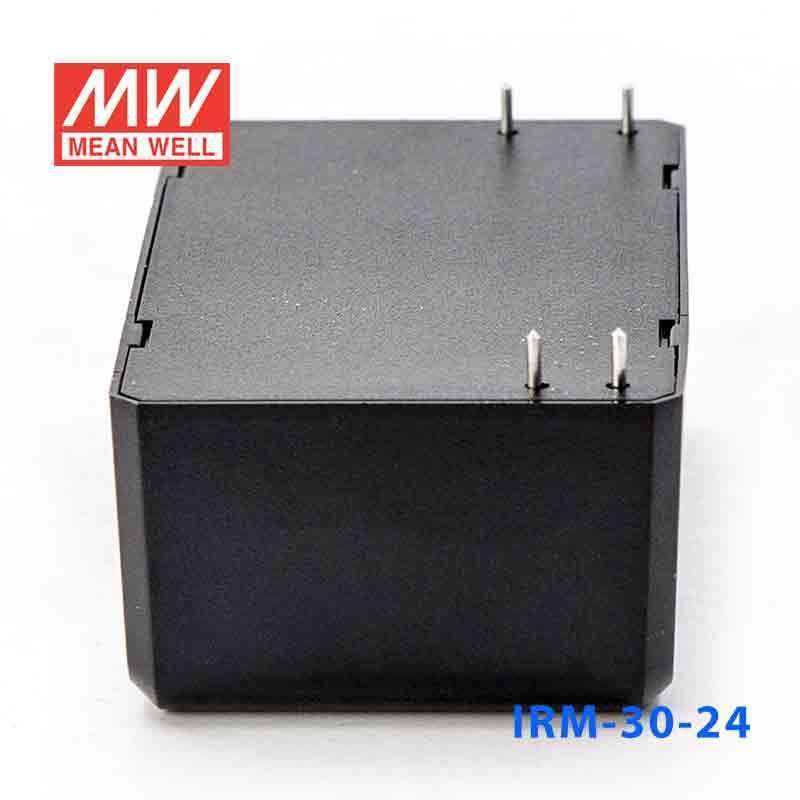

Mean Well IRM-30-24 Switching Power Supply 3W 24V 1.3A

Name: Mean Well IRM-30-24 Switching Power Supply 3W 24V 1.3A - Encapsulated
Brand: Mean Well
SKU: IRM-30-24
Price: 14.76 USD
Availability: InStock

Overview

IRM-30-24 is the 24V output model of this series: rated current 1.3A, rated power 31.2W, typical efficiency 88.5%. Type Blank: PCB mounting style.

IRM-30 is a 30W miniature (69.5*39*24mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation. PCB mounting style model(Blank) meet the anti-vibration demand up to 2G and screw terminal style model (ST) meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 90% and the extremely low no-load power consumption below 0.1W, IRM-30 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the superlative EMC features keep the end electronic units from electromagnetic interference. In addition to module-type model, IRM-30 series also offers the screw terminal style model (ST).

Features

2.74"x1.54"compact size
PCB, chassis or screw terminal mounting version
Universal input 85~305Vac
No load power consumption<0.1W
EMI Class B without additional components
Wide operating temp. range -30~85℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class Ⅱ
Over voltage category Ⅲ (OVC Ⅲ)
Pass LPS(except for 5V)
3 years warranty

Specifications

IRM-30-24Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 1.3A
CURRENT RANGE: 0 ~ 1.3A
RATED POWER: 31.2W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230Vac 1500ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.): 40ms/230Vac 12ms/115Vac at full load

INPUT

VOLTAGE RANGE: 85 ~ 305Vac
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY (Typ.): 88.5%
AC CURRENT (Typ.): 0.75A/115Vac 0.5A/230Vac 0.375A/277Vac
INRUSH CURRENT (Typ.): COLD START 25A/115Vac 45A/230Vac
LEAKAGE CURRENT: < 0.25mA/277Vac

PROTECTION

OVERLOAD: 105% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 25.2 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
OVER VOLTAGE CATEGORY: Ⅲ; According to EN62368-1;altitude up to 2000 meters
OPERATING ALTITUDE^Note.4: 2000 meters
SAFETY STANDARDS: IEC62368-1,IEC61558-1/-2-16, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved
OVER VOLTAGE CATEGORY: IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000m); IEC/EN/UL 62368-1(OVC Ⅲ, altitude up to 2000m)
WITHSTAND VOLTAGE: I/P-O/P:4.2KVac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION^Note.5: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32), CNS15936 Class B
Radiated BS EN/EN55032(CISPR32), CNS15936 Class B
Harmonic Current (Note 5) BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32), CNS15936	Class B
Radiated	BS EN/EN55032(CISPR32), CNS15936	Class B
Harmonic Current (Note 5)	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/L-N, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 7713.0K hrs min. Telcordia SR-332 (Bellcore) ; 593.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB mounting style : 69.5*39*24mm (L*W*H) Screw terminal style : 91*39.5*28.5mm (L*W*H)
PACKING: PCB mounting style : 0.094Kg;144pcs/14.5Kg/0.94CUFT Screw terminal style :0.113Kg;120pcs/14.6Kg/0.83CUFT

MODEL ENCODING

Blank (this model): PCB mounting style
ST: Screw terminal style

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

IRM-30-24 Derating Curve — Derating Curve

IRM-30-24 Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Hand-held electronic device

Downloads

Datasheet1

IRM-30-24 datasheetIRM-30-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates4

EMC Certificate (IRM-30)(EN) PDF Download

UL Certificate (IRM-30)(EN) PDF Download

CB Certificate (IRM-30)(EN) PDF Download

TUV Certificate (IRM-30)(EN) PDF Download

Test reports1

Test Report(IRM-30-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the IRM-30-24 for a 24V PLC, I/O module, or industrial controller?

Yes, this model provides constant 24V output with up to 1.3A and 31.2W. That makes it suitable for small 24V PLCs, I/O modules, and compact industrial controllers that stay within those limits.

Is the IRM-30-24 suitable for 24V sensors, relays, and compact automation devices in one system?

It can be used for multiple 24V sensors, relays, and other compact automation devices if the combined load does not exceed 1.3A or 31.2W. The 85-305VAC input range is useful when equipment may be installed in different AC supply environments.

Can this model power a 24V HMI or panel control circuit in a small enclosure?

It can power a 24V HMI or panel control circuit when the load fits within the 24V, 1.3A, and 31.2W rating. Its 69.5 × 39.0 × 24.0 mm footprint supports use in compact PCB-based equipment.

Is the IRM-30-24 meant for PCB-mounted 24V embedded or industrial electronics?

Yes, this is the PCB mounting style version of the 24V IRM-30 model. It combines a constant 24V output, 1.3A current rating, and 31.2W power level in a compact 69.5 × 39 × 24 mm package.

How does the IRM-30-24 compare with the other IRM-30 output versions?

In the IRM-30 range, the comparable choices are IRM-30-5 and IRM-30-5ST at 30W, 5V, 6A; IRM-30-12 and IRM-30-12ST at 30W, 12V, 2.5A; IRM-30-15 and IRM-30-15ST at 30W, 15V, 2A; IRM-30-24 and IRM-30-24ST at 31.2W, 24V, 1.3A; and IRM-30-48 and IRM-30-48ST at 30.2W, 48V, 0.63A. This model is the PCB mounting style 24V option, while IRM-30-24ST carries the same 24V, 1.3A, and 31.2W output in screw terminal style.

Can the IRM-30-24 be used in outdoor or temperature-variable industrial equipment?

The operating temperature range is -30°C to +85°C (with load derating at higher ambient temperatures per the derating curve), so it can suit equipment that sees cold starts and elevated internal temperatures. No IP rating is listed, so it should be used in a protected enclosure instead of an exposed outdoor location.
