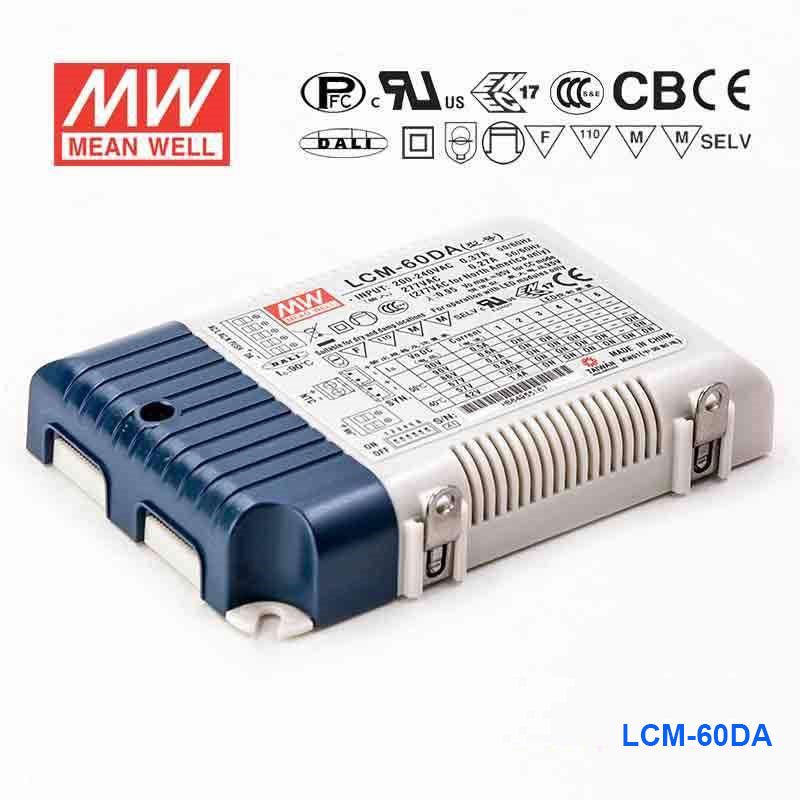

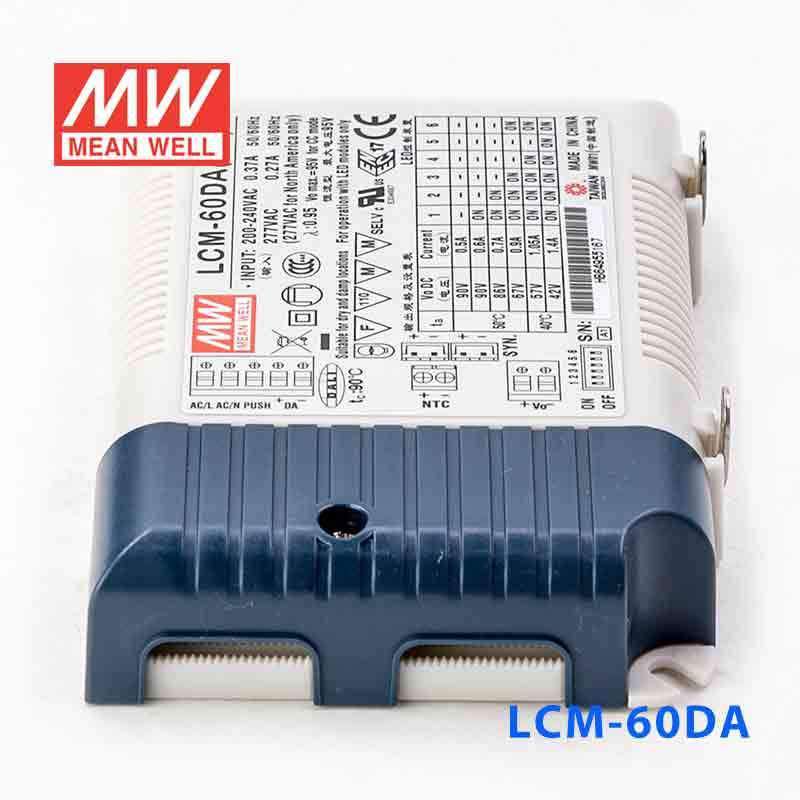

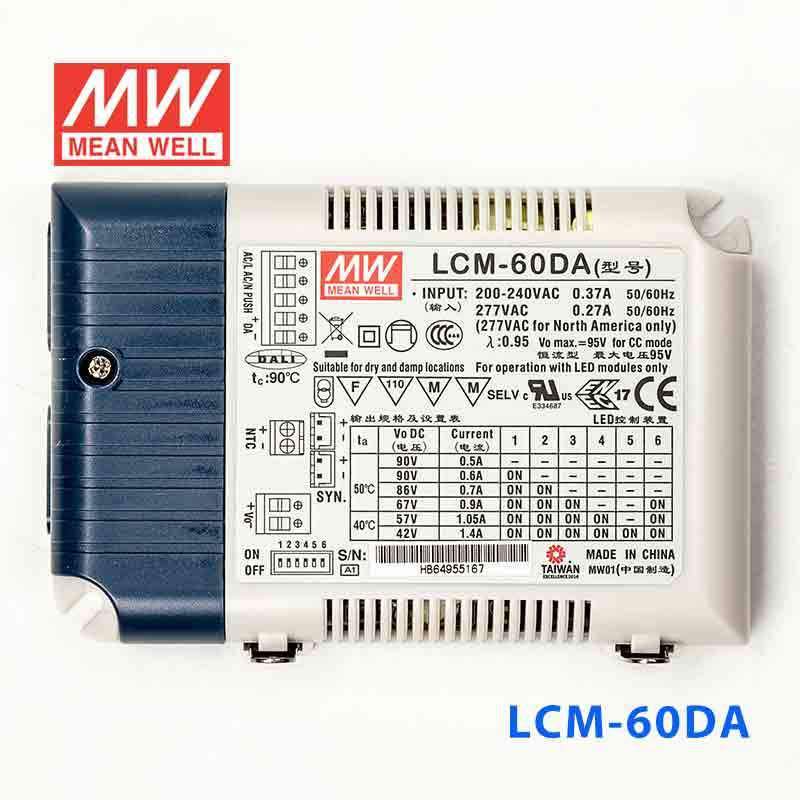

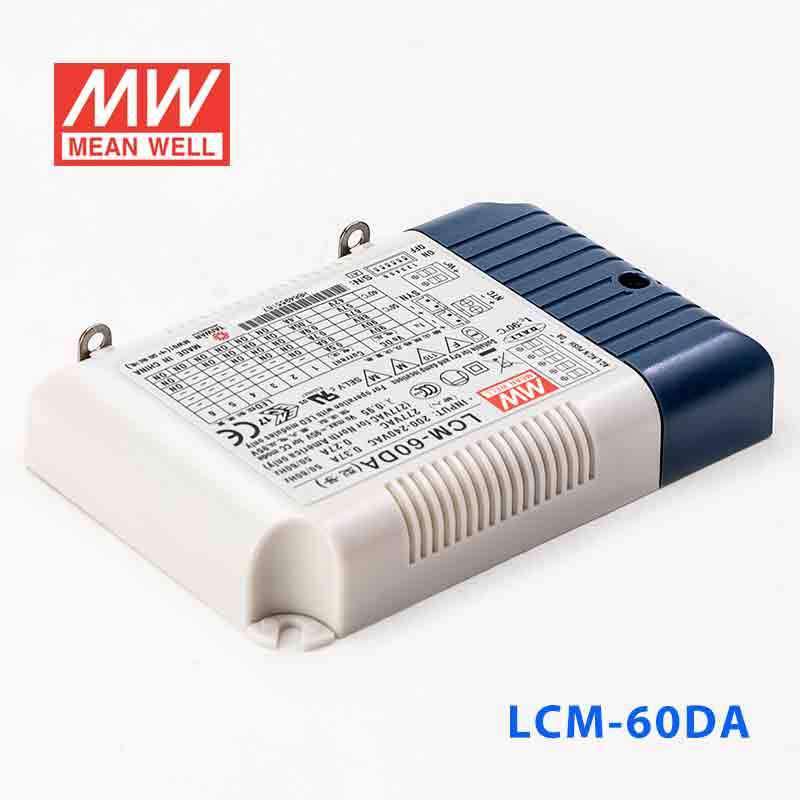

Mean Well LCM-60DA AC-DC Multi-Stage LED driver Constant Current
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-60DA AC-DC Multi-Stage LED driver Constant Current
The LCM is a 25W Mean Well DIN rail power converter with a 105mm profile (input range: 6~54V, operating temperature: -30~+85℃).
Key Features
- ✓ 105mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 6~54V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1, BIS IS15885, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLCM DALI Series
-
Power Rating60.3 Watt
-
Output Voltage95 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output6
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~90°C
-
Warranty3 Year
-
Length4.86 in
-
Width3.21 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LCM-60DA for DALI-controlled LED downlights?
Yes, this driver is designed for constant current LED loads and includes DALI support, which makes it suitable for downlight systems that need centralized dimming control. It is rated at 60.3W with a 2-86V constant current range, so the LED load has to fit within that window.
Is the LCM-60DA a good match for constant current LED signage modules?
It can be, provided the signage module is a constant current load and stays within 60.3W and the 2-86V CC range. If the sign uses constant voltage modules, this is not the correct driver type even though it supports dimming.
Can this model run a dimmable small LED array with higher voltage demand?
Yes, the 2-86V constant current range gives it more room for higher-voltage constant current arrays than the 40W, 2-57V versions. DALI support also makes it relevant where the LED array needs digital dimming control.
How should I size LEDs for the LCM-60DA?
Use it with constant current LEDs whose combined forward voltage falls within the 2-86V constant current output range. The number of LEDs depends on each LED forward voltage, so compatibility should be checked by total forward voltage rather than by a fixed LED count.
Can the LCM-60DA operate in hot or cold conditions?
The specified operating temperature range is -30°C to +90°C, so it is suited to a wide range of indoor operating conditions. These specs do not include an IP rating, so environmental sealing depends on the luminaire or enclosure used with it.
