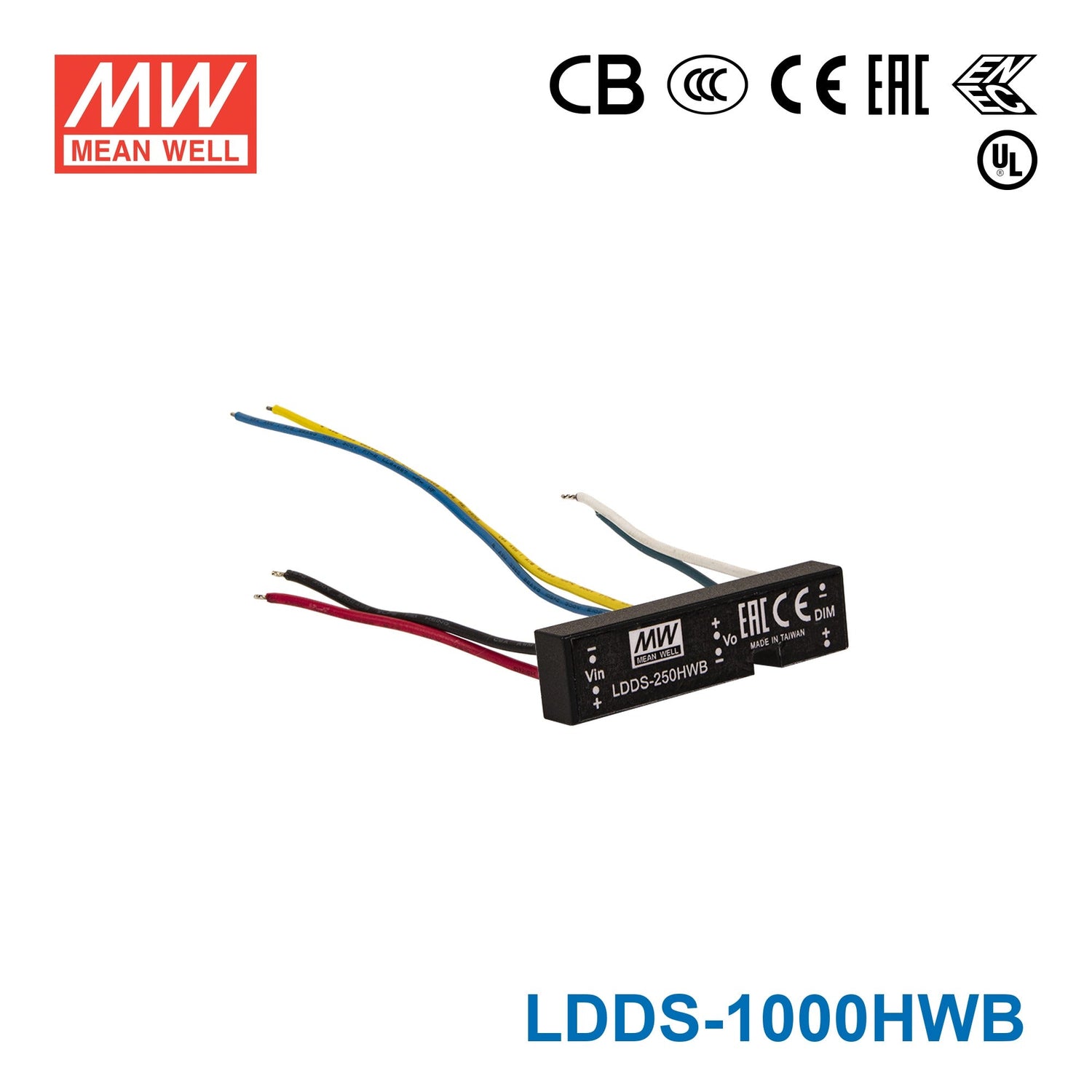

Mean Well LDDS-1000HWB DC/DC LED Driver CC 1000mA - Step-down Wire Type - 3 in 1 Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDDS-1000HWB DC/DC LED Driver CC 1000mA - Step-down Wire ...
Overview
LDDS-1000HWB is the model of this series: typical efficiency 96%. Type B: 3 in 1 Dimming function.
LDDS-H series is a 45W DC/DC LED driver featuring constant current output. LDDS-H operates from 12~56VDC and offers models with different rated current ranging between 250mA and 1000mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case with fully-potted to enhance the heat dissipation allows this series to fit for class Ⅲ commercial track light or DC bus lighting application.
Features
- DC/DC step-down converter
- Constant current output: 250mA to 1000mA
- Wide input voltage: 12 ~ 56VDC(48V typ.)
- Wide output LED forward string voltage: 2 ~ 45VDC
- High efficiency up to 96%
- Built-in EMI filter, comply with BS EN/EN55015
- 3 in 1 dimming and remote ON/OFF control.
- Protections: Short circuit / Over temperature / Over current
- Cooling by free air convection
- Compact size and Fully encapsulated
- Suitable for driving illumination LED
- 5 years warranty
Specifications
OUTPUT
- CURRENT RANGE
- 1000mA
- VOLTAGE RANGENote.4
- 2 ~ 45VDC
- CURRENT ACCURACY (Typ.)
- ±5% at 48VDC input (or 24VDC)
- RIPPLE & NOISE(max.)Note.2
- 350mVp-p
- SWITCHING FREQENCY
- 40KHz ~ 1000KHz
- EXTERNAL CAPACITANCE LOAD (max.)
- 2.2uF
INPUT
- VOLTAGE RANGE
- 12 ~ 56VDC
- EFFICIENCY (Typ.)Note.3
- 96%
- DC CURRENT Full loadNote.3
- 820mA
- DC CURRENT No load
- 6mA
- FILTER
- Capacitor
REMOTE ON/OFF & 3 IN 1 DIMMING
- PWM FREQUENCY
- 100 ~ 1KHz (4mA at PWM dimming off)
- 3 IN 1 DIMMING
- 0 ~ 10V / PWM / Resistor Dimming
PROTECTION
- SHORT CIRCUIT
- Regulated at rated output current Protection type: Can be continued, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Tj 150℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ + 55℃(Refer to derating curve) @ full load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
- OPERATING CASE TEMP. (max.)
- 90℃
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- EMC EMISSION
- Compliance to BS EN/EN55015, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 650Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 47*12*7mm or 1.85"*0.47"*0.28" inch (L*W*H)
- PACKING
- LDDS-HW: 9.5g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg LDDS-HWB: 9.4g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg
- POTTING MATERIAL
- Expoxy(UL94-V0)
MODEL ENCODING
- Blank
- Remote ON/OFF control
- B (this model)
- 3 in 1 Dimming function
Test conditions and notes5
- 1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
- 3.Test condition: 48VDC input, 36VDC output without Dimming.
- 4.Output voltage will always step down 4 volts from input DC voltage.
- 5.The output of LDDS-H should not be connected to the input of the same unit or output from other sources.
Technical drawings
Typical applications
- DC battery source lighting
- Portable lighting
- Commercial lighting
- DC 48V Track lighting
- DC 24V landscape lighting
- For STUCCHI track adapters
- For class Ⅲ application(SELV)
Downloads
FAQ
Can I use the LDDS-1000HWB for a 1000mA LED downlight?
Yes, if the downlight is designed for constant current at 1000mA and its LED load stays within the 2-45V output range. This is a constant-current step-down driver, so it is not the right choice for a constant-voltage downlight.
Is the LDDS-1000HWB suitable for outdoor signage modules?
It can drive constant-current signage modules that need 1000mA and operate within the 2-45V output range. The datasheet lists -40°C to +55°C at full load and 20% to 90% RH non-condensing but no IP rating, so it is not specified for direct outdoor exposure.
Can this driver run a small high-power LED array?
Yes, it can power a small LED array if the array is a constant-current load rated for 1000mA and falls within the 2-45V output range. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.
What kind of LED load is compatible with the LDDS-1000HWB?
This model is for constant-current LED loads, not constant-voltage LED strips or constant-voltage modules. It delivers 1000mA with a 2-45V constant-current output range, and the number of LEDs depends on the forward voltage of each LED in the load.
What is the difference between the LDDS-1000HWB and the other LDDS-HW/HWB models?
All listed siblings share the same 2-45V output range. The series current options are 250mA on LDDS-250HW and LDDS-250HWB, 300mA on LDDS-300HW and LDDS-300HWB, 350mA on LDDS-350HW and LDDS-350HWB, 500mA on LDDS-500HW and LDDS-500HWB, 700mA on LDDS-700HW and LDDS-700HWB, and 1000mA on LDDS-1000HW and LDDS-1000HWB; HW models use remote ON/OFF, HWB models add 3 in 1 dimming.
