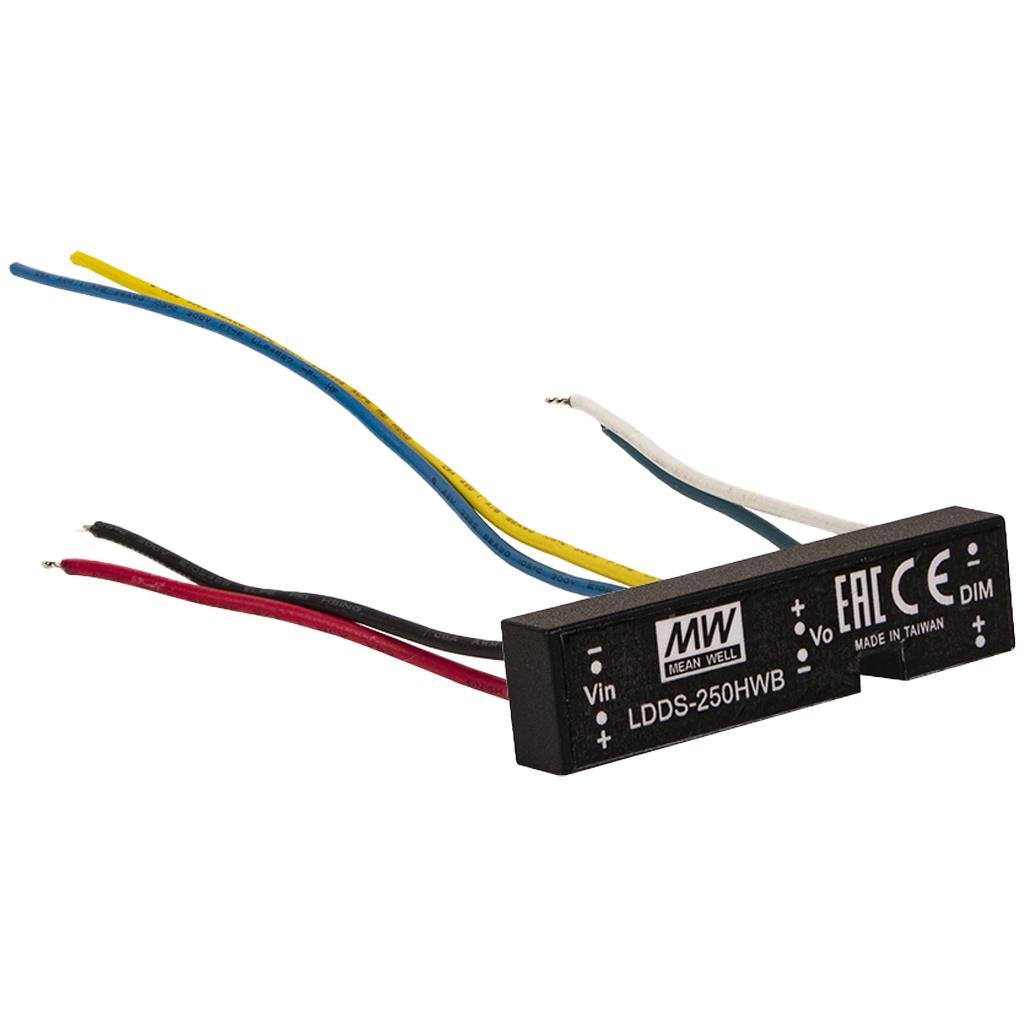

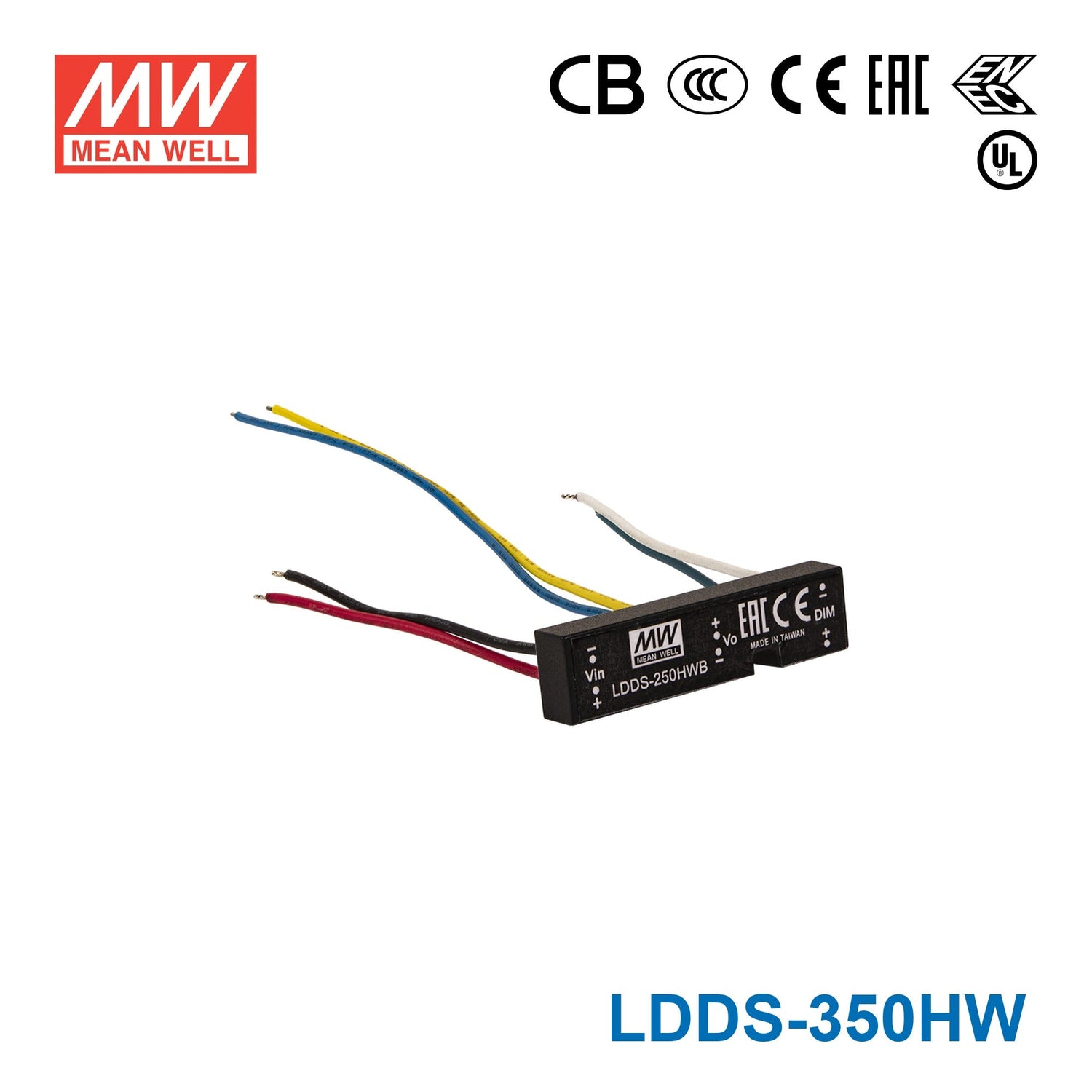

Mean Well LDDS-350HW DC/DC LED Driver CC 350mA - Step-down Wire Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDDS-350HW DC/DC LED Driver CC 350mA - Step-down Wire Type
Description
Description
The LDDS is a Mean Well power converter (input range: 2~45VDC, operating temperature: -55~+125℃).
Key Features
- ✓ Input voltage range: 2~45VDC
- ✓ Wide operating temperature: -55~+125℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLDDS Series
-
Power Rating45 Watt
-
Output Voltage45 Volt
-
Rated Current0.35 Ampere
-
Input Voltage2V~45V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~55°C
-
Warranty5 Year
-
Length1.85 in
-
Width0.47 in
-
Height0.28 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDDS-350HW for a constant current LED downlight?
Yes, if the downlight is designed for a 350mA constant current driver. This model is a constant current step-down driver rated at 45W with a 45-2V constant current output range, so the LED load needs to stay within that range rather than requiring a constant voltage supply.
Is the LDDS-350HW suitable for signage LED modules?
It can be suitable for signage modules only when the modules are built for 350mA constant current operation. The driver provides up to 45W and a 45-2V constant current range, so it is not the right choice for constant voltage signage products that expect a fixed voltage output.
Can this driver run a small LED array in a compact fixture?
Yes, this driver is often a fit for small LED arrays that need 350mA constant current and stay within the 45-2V output range. Its 47.0 x 12.0 x 7.0 mm size and wire-style format also make it easier to use where space is limited.
How do I know if the LDDS-350HW is compatible with my LED load?
Check that your LEDs require 350mA constant current and that the total LED forward voltage falls within the 45-2V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count for this model.
What is the difference between the LDDS-350HW and other LDDS wire-type models?
In this series, the LDDS-250HW and LDDS-250HWB are 0.25mA, the LDDS-300HW and LDDS-300HWB are 0.3mA, the LDDS-350HWB matches this model at 0.35mA, the LDDS-500HW and LDDS-500HWB are 0.5mA, the LDDS-700HW and LDDS-700HWB are 0.7mA, and the LDDS-1000HW and LDDS-1000HWB are 1mA. All listed siblings share 45W power and the same 45-2V constant current range.
